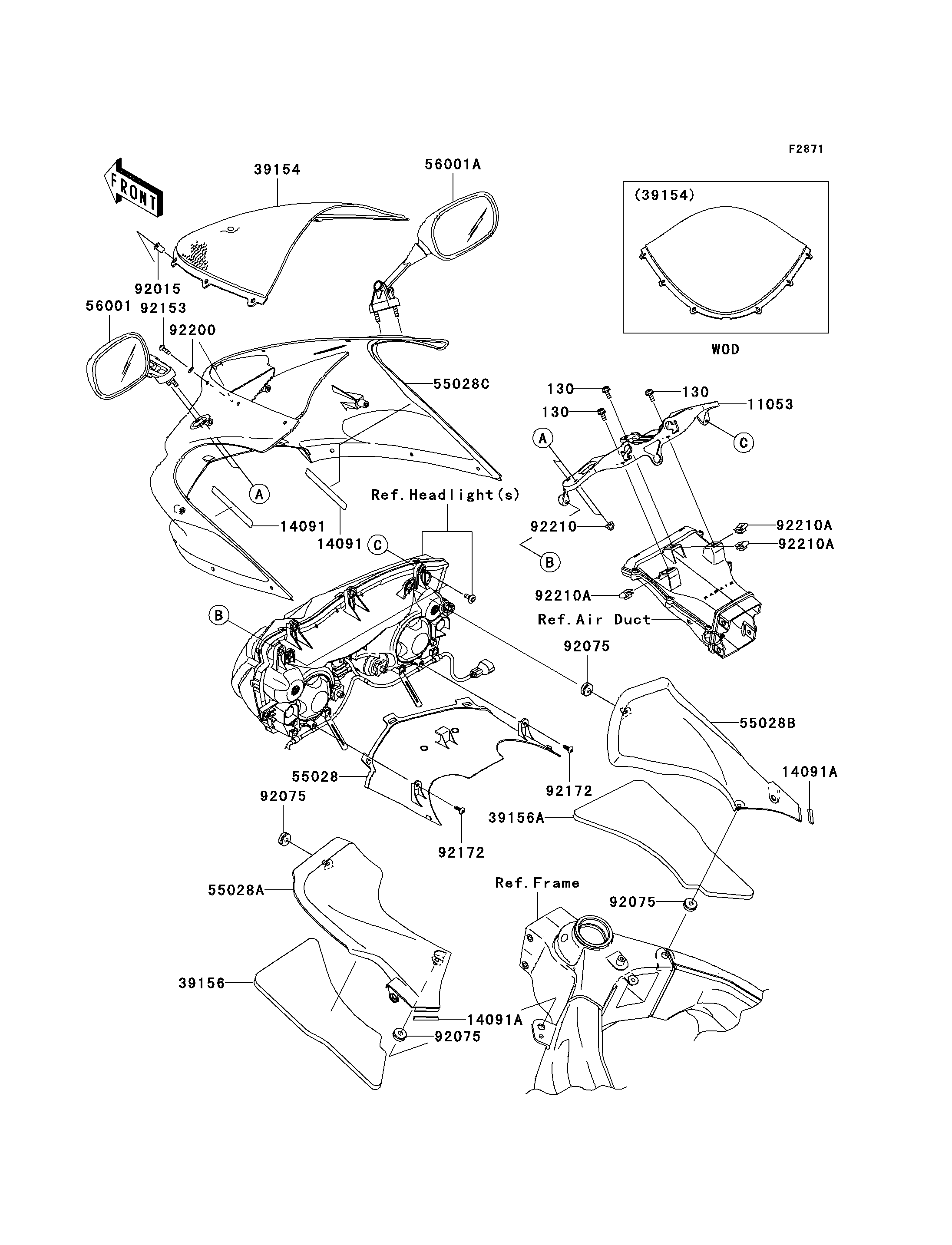

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
130
130
130
11053
14091
14091
14091A
14091A
39154
39156
39156A
55028
55028A
55028B
55028C
56001
56001A
92015
92075
92075
92075
92075
92153
92172
92172
92200
92210
92210A
92210A
92210A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,M6X16 | 130 | 130L0616 | 3 | ||
BRACKET,MIRROR&METER | 11053 | 11053-1289 | 1 | ||
COVER,UPP COWLING | 14091 | 14091-0435 | 2 | ||
COVER | 14091A | 14091-0456 | 2 | ||
WINDSHIELD | 39154 | 39154-0008 | 1 | ||
PAD,INNER COWLING,LH | 39156 | 39156-0077 | 1 | ||
PAD,INNER COWLING,RH | 39156A | 39156-0078 | 1 | ||
COWLING,FR,CNT | 55028 | 55028-0032 | 1 | ||
COWLING,INNER,LH | 55028A | 55028-0035 | 1 | ||
COWLING,INNER,RH | 55028B | 55028-0036 | 1 | ||
COWLING,UPP,L.GREEN | 55028C | 55028-0075-777 | 1 | ||
MIRROR-ASSY,LH | 56001 | 56001-0039 | 1 | ||
MIRROR-ASSY,RH | 56001A | 56001-0040 | 1 | ||
NUT,WELL,5MM | 92015 | 92015-1757 | 6 | ||
DAMPER | 92075 | 92075-1067 | 4 | ||
BOLT,SOCKET,5X16 | 92153 | 92153-1244 | 6 | ||
SCREW,TAPPING,5X16 | 92172 | 92172-0175 | 2 | ||
WASHER,NYLONE,5.3X11.5X0.5 | 92200 | 92200-0006 | 6 | ||
NUT,CAP,6MM | 92210 | 92210-0003 | 4 | ||
NUT | 92210A | 92210-0130 | 3 |
