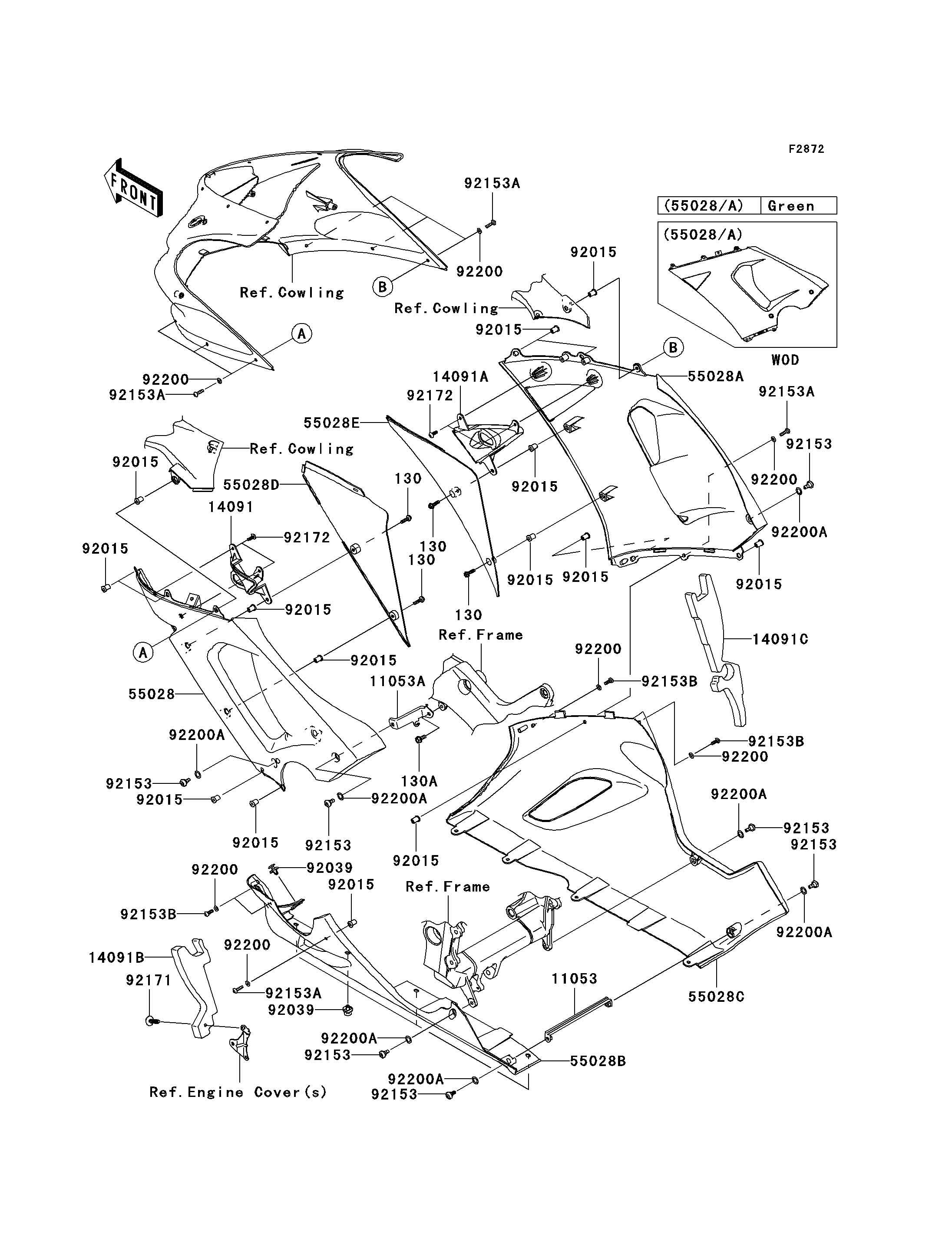

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,M5X20 | 130 | 130L0520 | 4 | ||
BOLT-FLANGED,M6X16 | 130A | 130L0616 | 1 | ||
BRACKET,LWR COWLING | 11053 | 11053-0402 | 1 | ||
BRACKET,COWLING,LH | 11053A | 11053-1393 | 1 | ||
COVER,SIGNAL LAMP,LH,L.GREEN | 14091 | 14091-0353-777 | 1 | ||
COVER,SIGNAL LAMP,RH,L.GREEN | 14091A | 14091-0354-777 | 1 | ||
COVER,HEAT GUARD,LH | 14091B | 14091-0418 | 1 | ||
COVER,HEAT GUARD,RH | 14091C | 14091-0419 | 1 | ||
COWLING,CNT,LH,L.GREEN | 55028 | 55028-0028-777 | 1 | ||
COWLING,CNT,RH,L.GREEN | 55028A | 55028-0029-777 | 1 | ||
COWLING,LWR,LH,L.GREEN | 55028B | 55028-0030-777 | 1 | ||
COWLING,LWR,RH,L.GREEN | 55028C | 55028-0031-777 | 1 | ||
COWLING,FR,LH | 55028D | 55028-0033 | 1 | ||
COWLING,FR,RH | 55028E | 55028-0034 | 1 | ||
NUT,WELL,5MM | 92015 | 92015-1757 | 16 | ||
RIVET | 92039 | 92039-0014 | 5 | ||
BOLT,SOCKET,6MM | 92153 | 92153-0489 | 7 | ||
BOLT,SOCKET,5X20 | 92153A | 92153-0873 | 8 | ||
BOLT,SOCKET,5X16 | 92153B | 92153-1244 | 4 | ||
CLAMP | 92171 | 92171-1280 | 1 | ||
SCREW,TAPPING,5X16 | 92172 | 92172-0175 | 4 | ||
WASHER,NYLONE,5.3X11.5X0.5 | 92200 | 92200-0006 | 12 | ||
WASHER,10.4X15.9X0.5 | 92200A | 92200-0157 | 7 |
