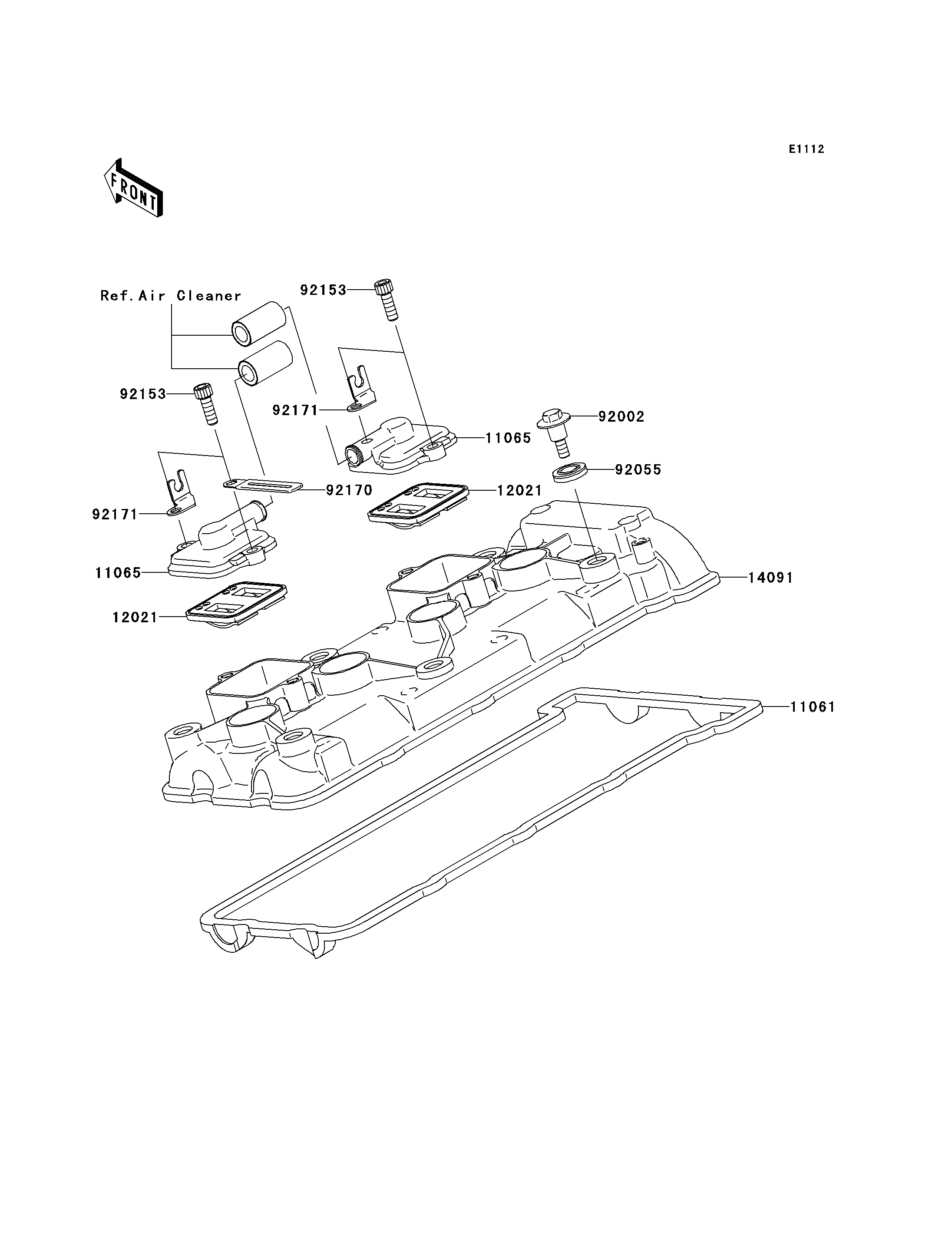

11061
11065
11065
12021
12021
14091
92002
92055
92153
92153
92170
92171
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,HEAD COVER 11061 11061-0156 1
CAP 11065 11065-1247 2
VALVE-ASSY-REED 12021 12021-1130 2
COVER,HEAD 14091 14091-0372 1
BOLT,FLANGED,6X22.5 92002 92002-1327 6
RING-O,HEAD COVER BOLT 92055 92055-1352 6
BOLT,SOCKET,6X18 92153 92153-1284 4
CLAMP 92170 92170-1514 1
CLAMP 92171 92171-0459 2
