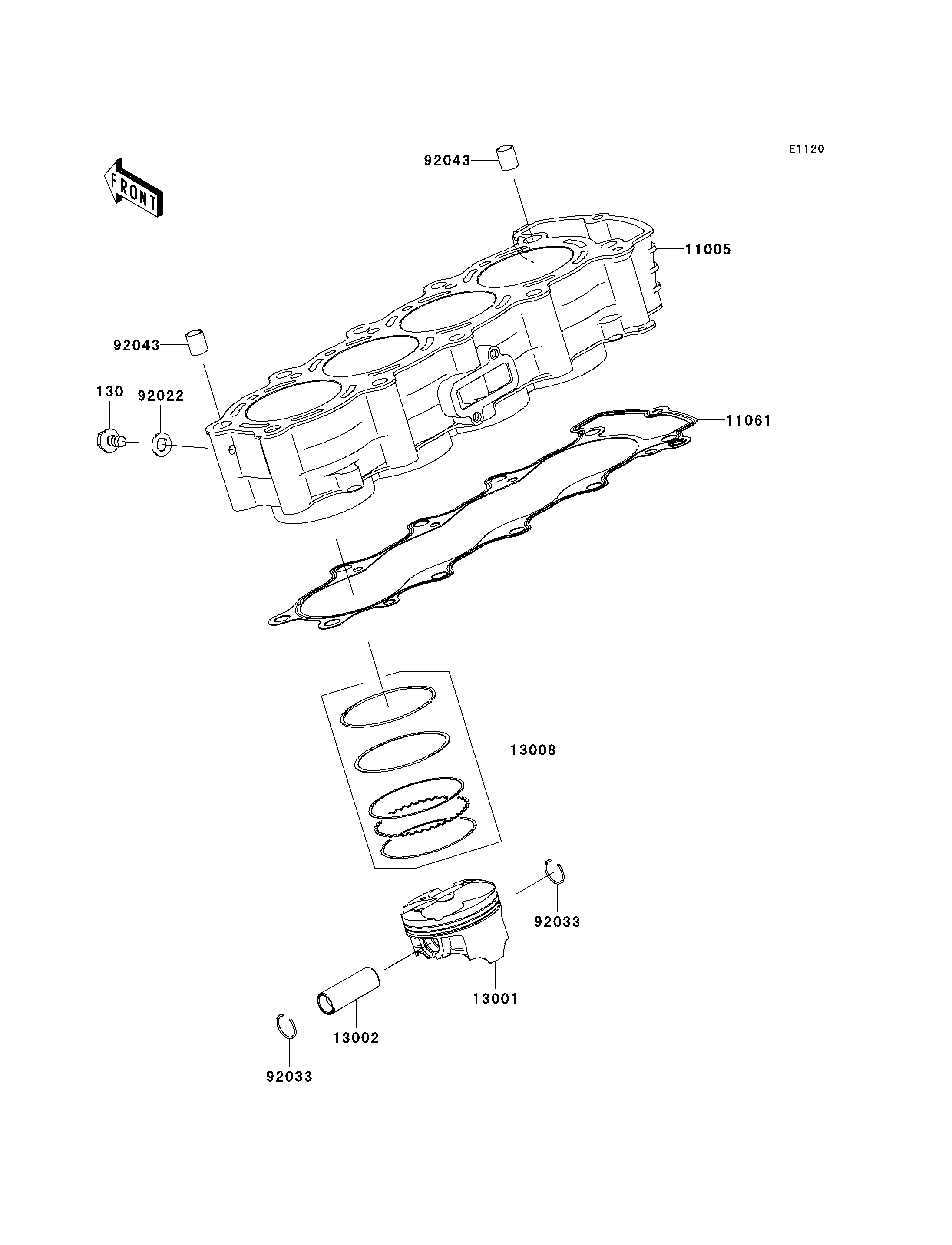

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130Y0610 1
CYLINDER-ENGINE 11005 11005-0038 1
GASKET,CYLINDER BASE 11061 11061-0041 1
PISTON-ENGINE 13001 13001-0048 4
PIN-PISTON 13002 13002-0005 4
RING-SET-PISTON 13008 13008-0016 4
WASHER,6.2X11X1 92022 92022-304 1
RING-SNAP,PISTON PIN 92033 92033-1161 8
PIN,10.1X12X14 92043 92043-4009 2
