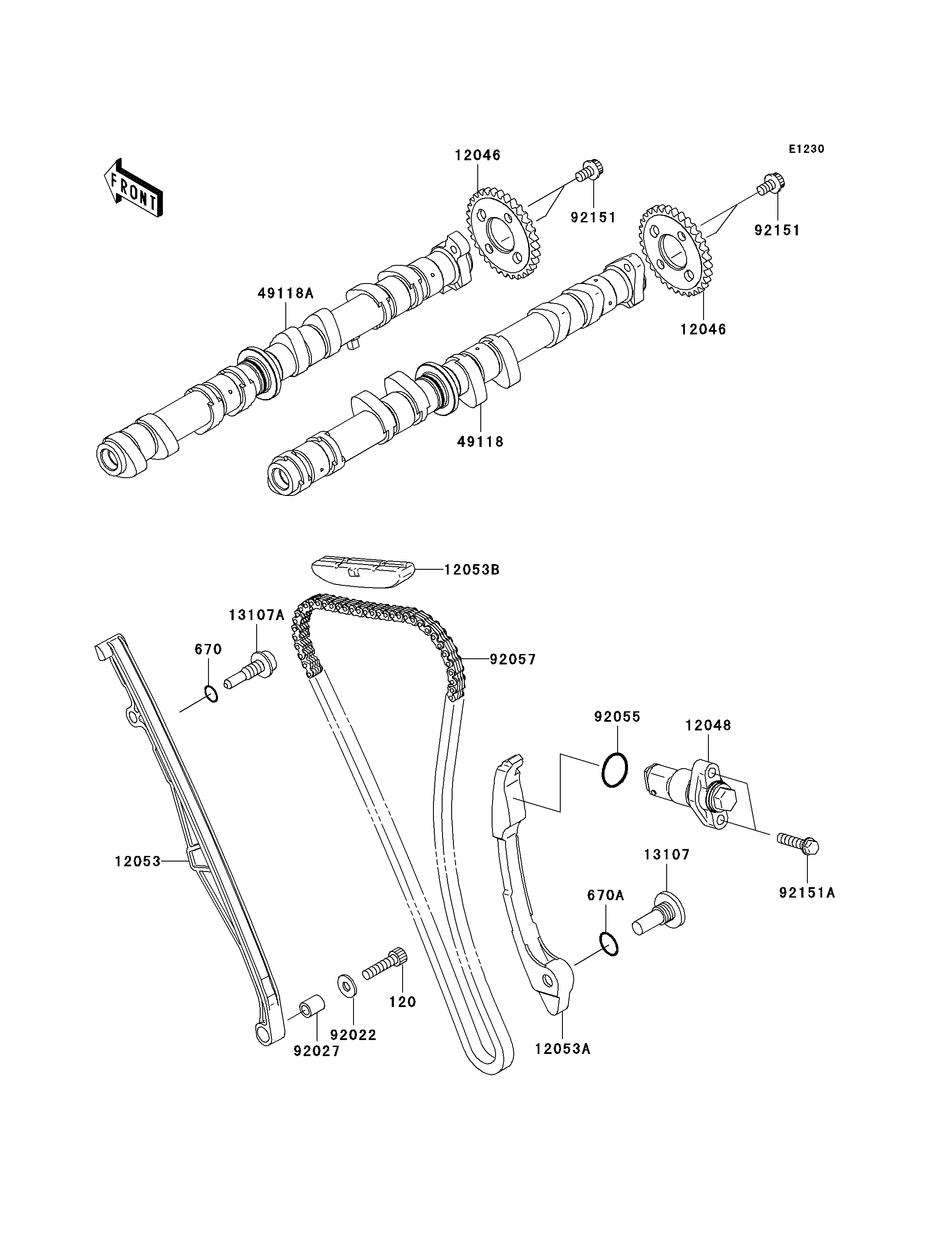

2006 Ninja® ZX™-6RR - Camshaft(s)/Tensioner
120
670
670A
12046
12046
12048
12053
12053A
12053B
13107
13107A
49118
49118A
92022
92027
92055
92057
92151
92151
92151A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X25 | 120 | 120P0625 | 1 | ||
| O RING,9MM | 670 | 670D1509 | 1 | ||
| O RING,14MM | 670A | 670D2014 | 1 | ||
| SPROCKET,CAM | 12046 | 12046-0016 | 2 | ||
| TENSIONER-ASSY | 12048 | 12048-1181 | 1 | ||
| GUIDE-CHAIN,FR | 12053 | 12053-1475 | 1 | ||
| GUIDE-CHAIN,RR | 12053A | 12053-1476 | 1 | ||
| GUIDE-CHAIN,UPP | 12053B | 12053-1477 | 1 | ||
| SHAFT | 13107 | 13107-0089 | 1 | ||
| SHAFT,CHAIN GUIDE | 13107A | 13107-1416 | 1 | ||
| CAMSHAFT-COMP,INTAKE | 49118 | 49118-0039 | 1 | ||
| CAMSHAFT-COMP,EXHAUST | 49118A | 49118-0040 | 1 | ||
| WASHER,6.2X15.0X1.2 | 92022 | 92022-2373 | 1 | ||
| COLLAR,6.3X10X12 | 92027 | 92027-1143 | 1 | ||
| RING-O,18.8X1.9 | 92055 | 92055-086 | 1 | ||
| CHAIN,CAM | 92057 | 92057-1531 | 1 | ||
| BOLT,SOCKET,6X10 | 92151 | 92151-1829 | 4 | ||
| BOLT,FLANGED-SMALL,6X25 | 92151A | 92151-1930 | 2 |
