Parts Diagrams |
13031
13251
92015
92139
92139
92139
92139
92139A
92139A
92139A
92139A
92139B
92139B
92139B
92139B
92139C
92139C
92139C
92139C
92139C
92139C
92139D
92139D
92139D
92139D
92139D
92139D
92139E
92139E
92139E
92139E
92139E
92139E
92139F
92139F
92139G
92139G
92139H
92139H
92153

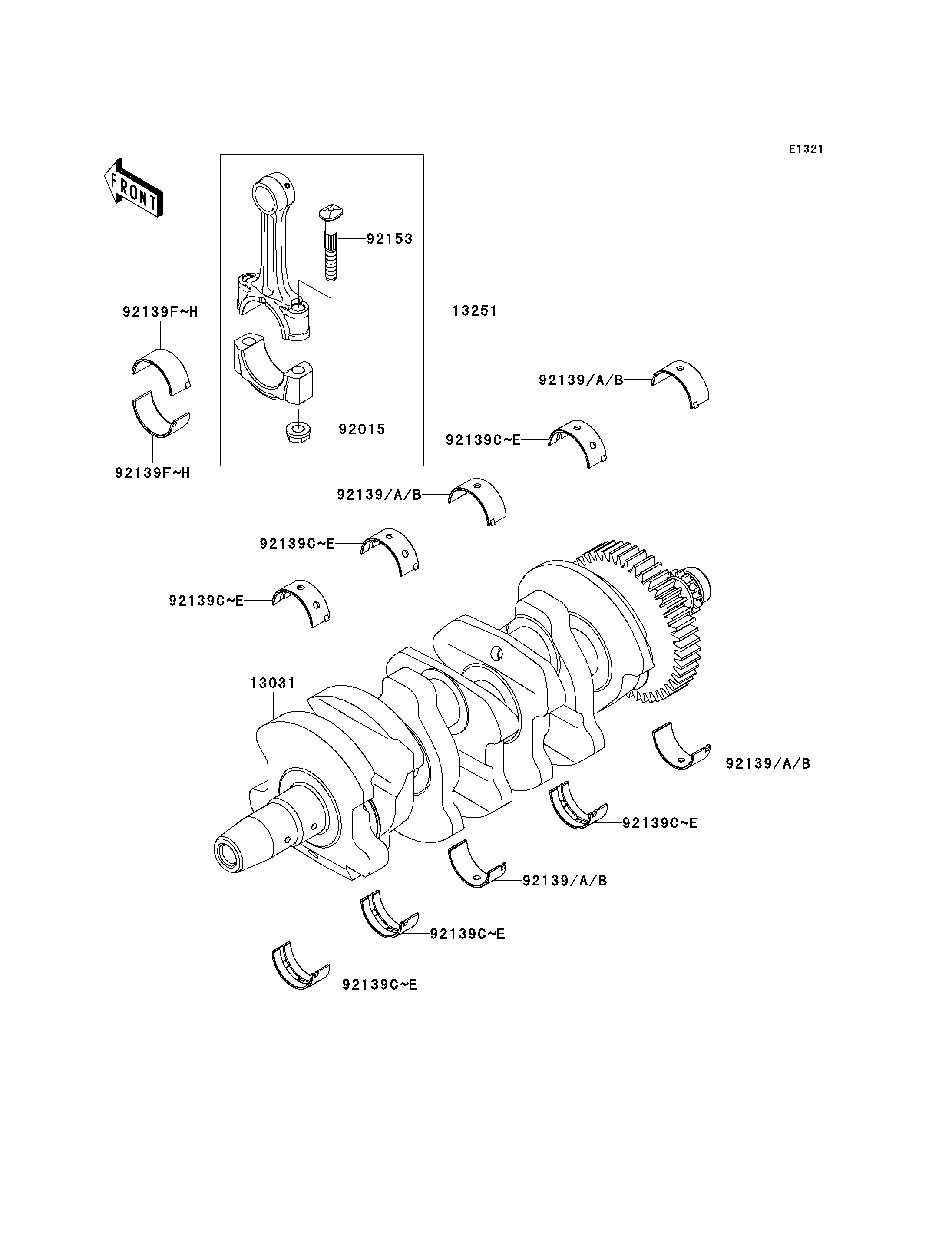

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CRANKSHAFT-COMP | 13031 | 13031-0046 | 1 | ||
| ROD-ASSY-CONNECTING,K | 13251 | 13251-0013-KK | 4 | ||
| NUT,CONNECTING ROD,7MM | 92015 | 92015-1527 | 8 | ||
| BUSHING,CRANK #3,BLUE | 92139 | 92139-0071 | 4 | ||
| BUSHING,CRANK #3,BLACK | 92139A | 92139-0072 | AR | ||
| BUSHING,CRANK #3,BROWN | 92139B | 92139-0073 | AR | ||
| BUSHING,CRANK #1,BLUE | 92139C | 92139-0074 | 6 | ||
| BUSHING,CRANK #1,BLACK | 92139D | 92139-0075 | AR | ||
| BUSHING,CRANK #1,BROWN | 92139E | 92139-0076 | AR | ||
| BUSHING,CONNECTING ROD,YELLOW | 92139F | 92139-0087 | AR | ||
| BUSHING,CONNECTING ROD,GREEN | 92139G | 92139-0088 | 8 | ||
| BUSHING,CONNECTING ROD,PURPLE | 92139H | 92139-0089 | AR | ||
| BOLT,7MM | 92153 | 92153-1172 | 8 |
| CRANKSHAFT-COMP | |
| REF # | 13031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-ASSY-CONNECTING,K | |
| REF # | 13251 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,CONNECTING ROD,7MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANK #3,BLUE | |
| REF # | 92139 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANK #3,BLACK | |
| REF # | 92139A |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANK #3,BROWN | |
| REF # | 92139B |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANK #1,BLUE | |
| REF # | 92139C |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANK #1,BLACK | |
| REF # | 92139D |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANK #1,BROWN | |
| REF # | 92139E |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CONNECTING ROD,YELLOW | |
| REF # | 92139F |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CONNECTING ROD,GREEN | |
| REF # | 92139G |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CONNECTING ROD,PURPLE | |
| REF # | 92139H |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BOLT,7MM | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
