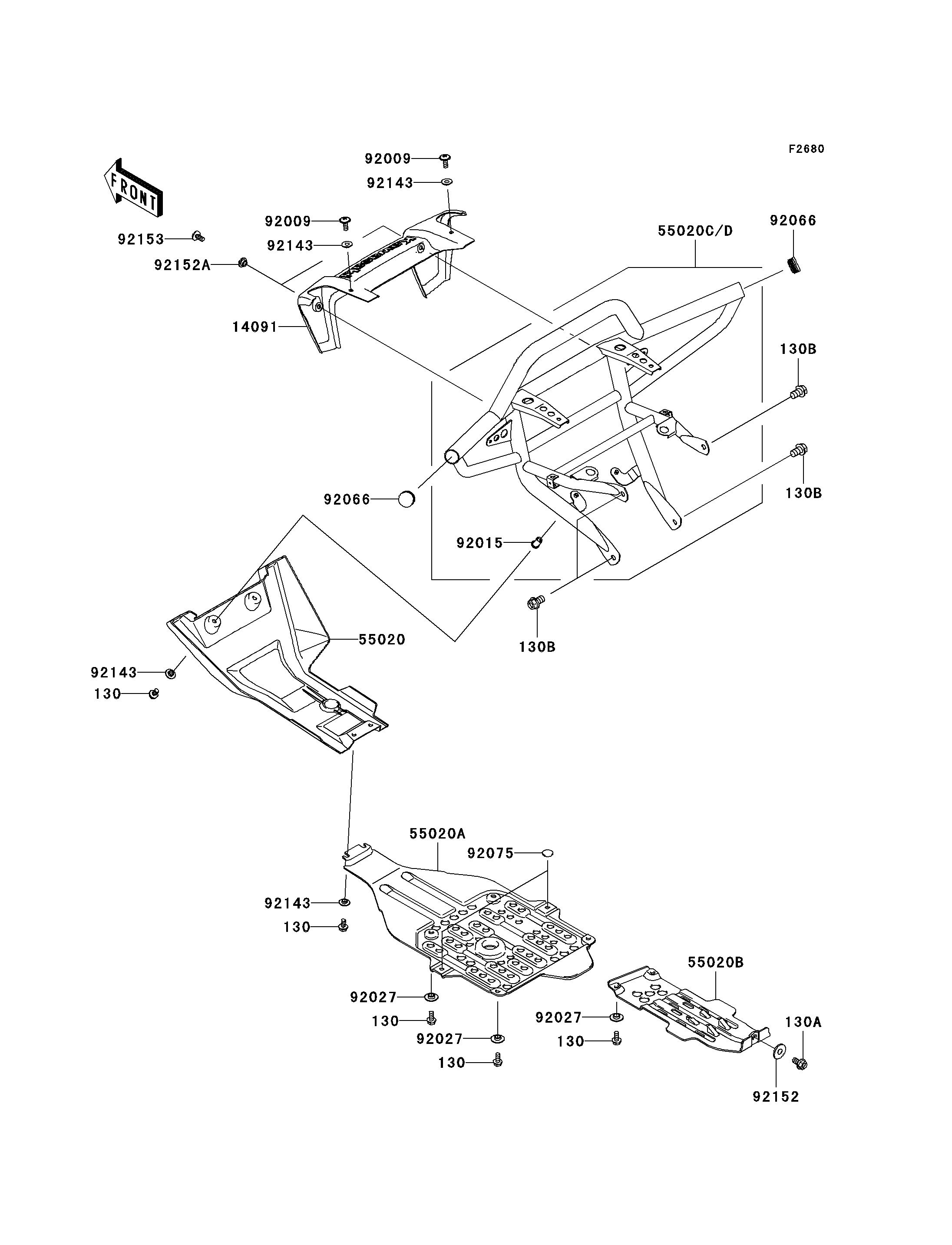

2006 Brute Force 650 4x4i - Guard(s)(F6F-F9F)

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130
130
130A
130B
130B
130B
14091
55020
55020A
55020B
55020C
92009
92009
92015
92027
92027
92027
92066
92066
92075
92143
92143
92143
92143
92152
92152A
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130BB0614 10
BOLT-FLANGED,8X14 130A 130BB0814 1
BOLT-FLANGED,10X16 130B 130BB1016 4
COVER,FRONT BUMPER,F.BLACK 14091 14091-0493-6Z 1
GUARD,FRONT SKID,F.BLACK 55020 55020-0064-6Z 1
GUARD,ENGINE 55020A 55020-0065 1
GUARD,REAR GEAR BOX 55020B 55020-0105 1
GUARD,FRONT,F.BLACK 55020C 55020-0259-21 1
SCREW,6X16 92009 92009-1621 2
NUT,POP,6MM,L=16.5 92015 92015-1792 2
COLLAR,L=4.7 92027 92027-1964 6
PLUG 92066 92066-0035 2
DAMPER,RUBBER 92075 92075-261 2
COLLAR 92143 92143-1087 6
COLLAR 92152 92152-0198 1
COLLAR 92152A 92152-0224 2
BOLT,SOCKET,6X14 92153 92153-1361 2
