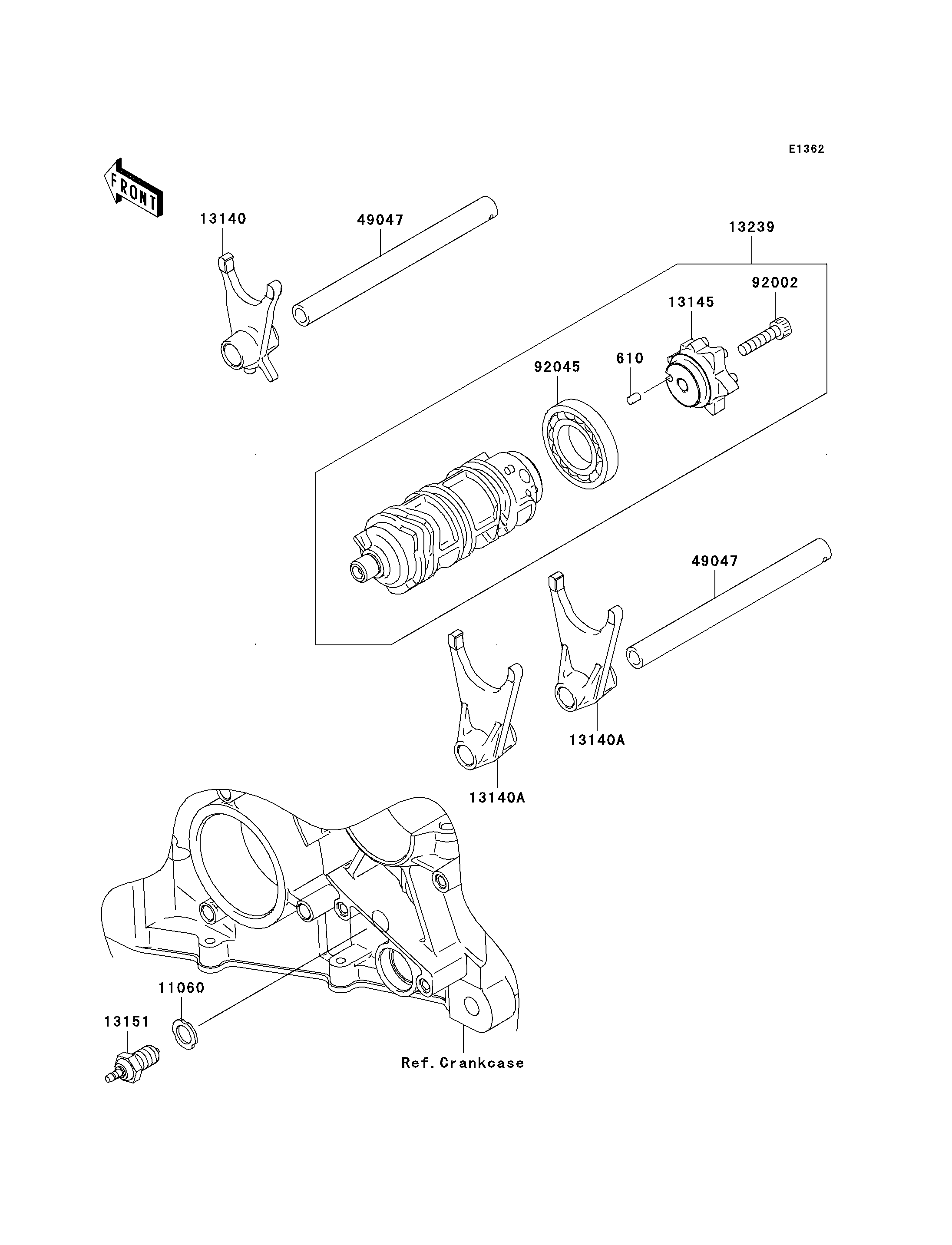

2006 Ninja® ZX-6RR - Gear Change Drum/Shift Fork(s)

610
11060
13140
13140A
13140A
13145
13151
13239
49047
49047
92002
92045
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROLLER,4X6 610 610A0406 1
GASKET,10.5X16X1.5 11060 11060-1676 1
FORK-SHIFT,INPUT 13140 13140-1231 1
FORK-SHIFT,OUTPUT 13140A 13140-1232 2
CAM-CHANGE DRUM 13145 13145-0013 1
SWITCH-COMP 13151 13151-1085 1
DRUM-ASSY-CHANGE 13239 13239-0012 1
ROD-SHIFT 49047 49047-1095 2
BOLT,SOCKET,6X25 92002 92002-1696 1
BEARING-BALL,16005(NTN) 92045 92045-1045 1
