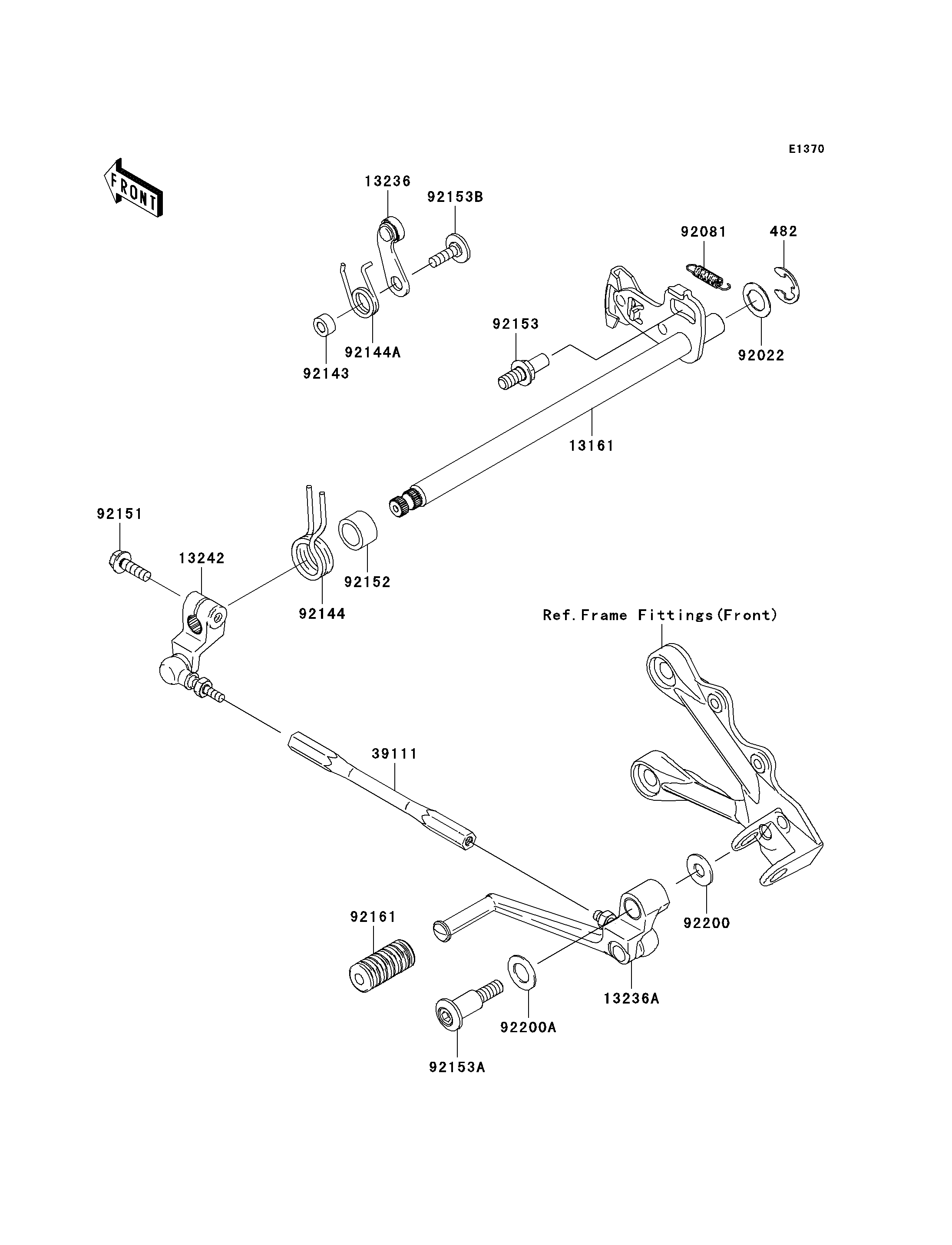

2006 Ninja® ZX™-6RR - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
482
13161
13236
13236A
13242
39111
92022
92081
92143
92144
92144A
92151
92152
92153
92153A
92153B
92161
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-E,12MM 482 482J0200 1
LEVER-COMP-CHANGE SHAFT 13161 13161-0021 1
LEVER-COMP 13236 13236-0068 1
LEVER-COMP,CHANGE PEDAL 13236A 13236-0078 1
LEVER-ASSY-CHANGE,BOSS 13242 13242-1348 1
ROD-TIE 39111 39111-1164 1
WASHER,CHANGE SHAFT 92022 92022-1628 1
SPRING,PAWL RETURN 92081 92081-1708 1
COLLAR 92143 92143-1595 1
SPRING,CHANGE PEDAL RETURN 92144 92144-1345 1
SPRING,GEAR POSITION 92144A 92144-1523 1
BOLT,FLANGED,6X20 92151 92151-1226 1
COLLAR,14.2X19.9X12.0 92152 92152-1383 1
BOLT,RETURN SPRING 92153 92153-0421 1
BOLT,8X41 92153A 92153-0880 1
BOLT,6X20 92153B 92153-0896 1
DAMPER,CHANGE PEDAL 92161 92161-1300 1
WASHER,8.5X20X1.5 92200 92200-0198 1
WASHER,12.5X22X1.2 92200A 92200-0199 1
