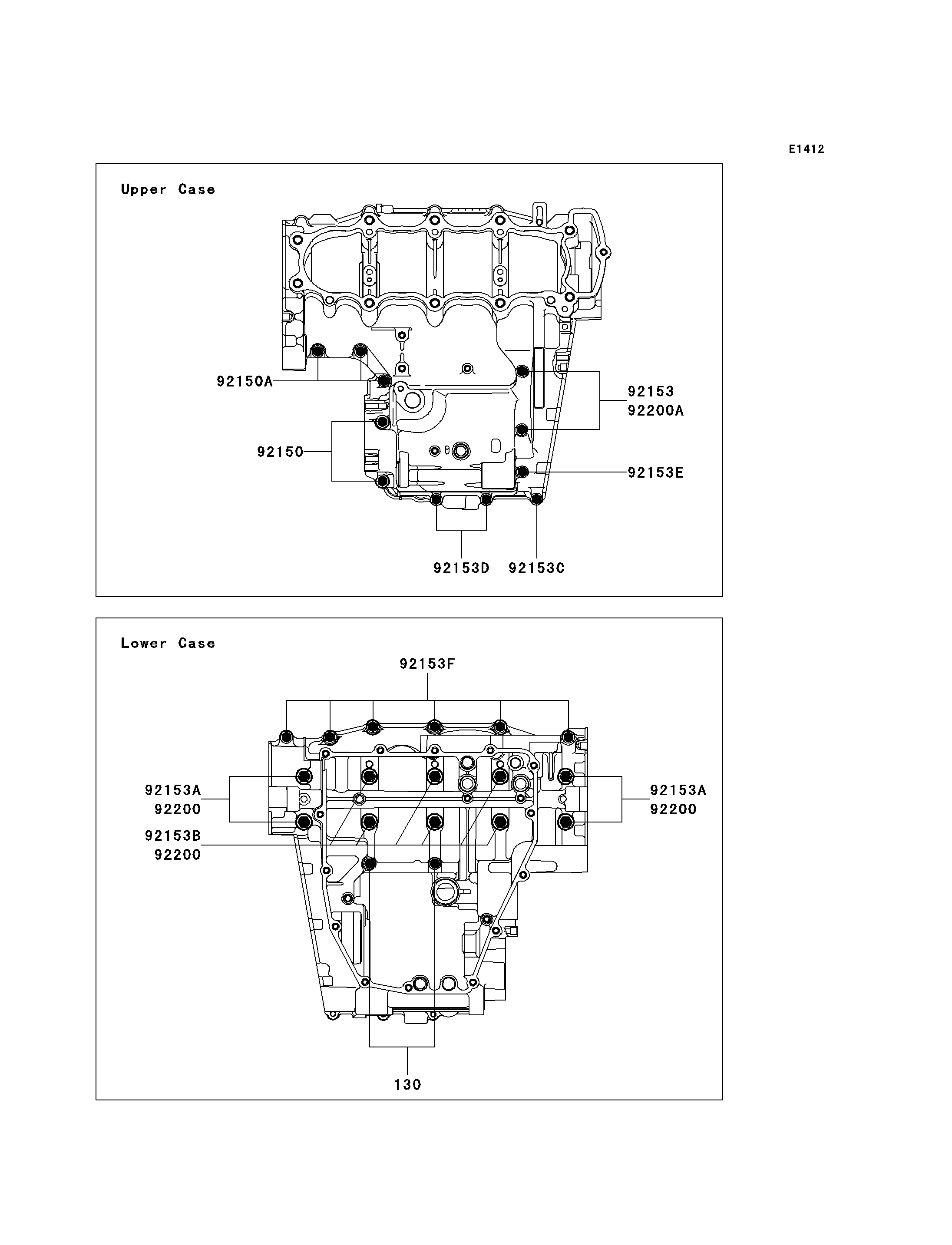

2006 Ninja® ZX-6RR - Crankcase Bolt Pattern

130
92150
92150A
92153
92153A
92153A
92153B
92153C
92153D
92153E
92153F
92200
92200
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X75 130 130P0675 2
BOLT,7X70 92150 92150-1250 2
BOLT,6X35 92150A 92150-1547 3
BOLT,6X95 92153 92153-0329 2
BOLT,8X94 92153A 92153-0692 4
BOLT,8X71 92153B 92153-0693 6
BOLT,6X50,WHITE 92153C 92153-0925 1
BOLT,6X65,WHITE 92153D 92153-0926 2
BOLT,6X85,WHITE 92153E 92153-0927 1
BOLT,7X38 92153F 92153-1109 6
WASHER,8.5X18X3.0 92200 92200-0153 10
WASHER,6.8X11.5X1.0 92200A 92200-1461 2
