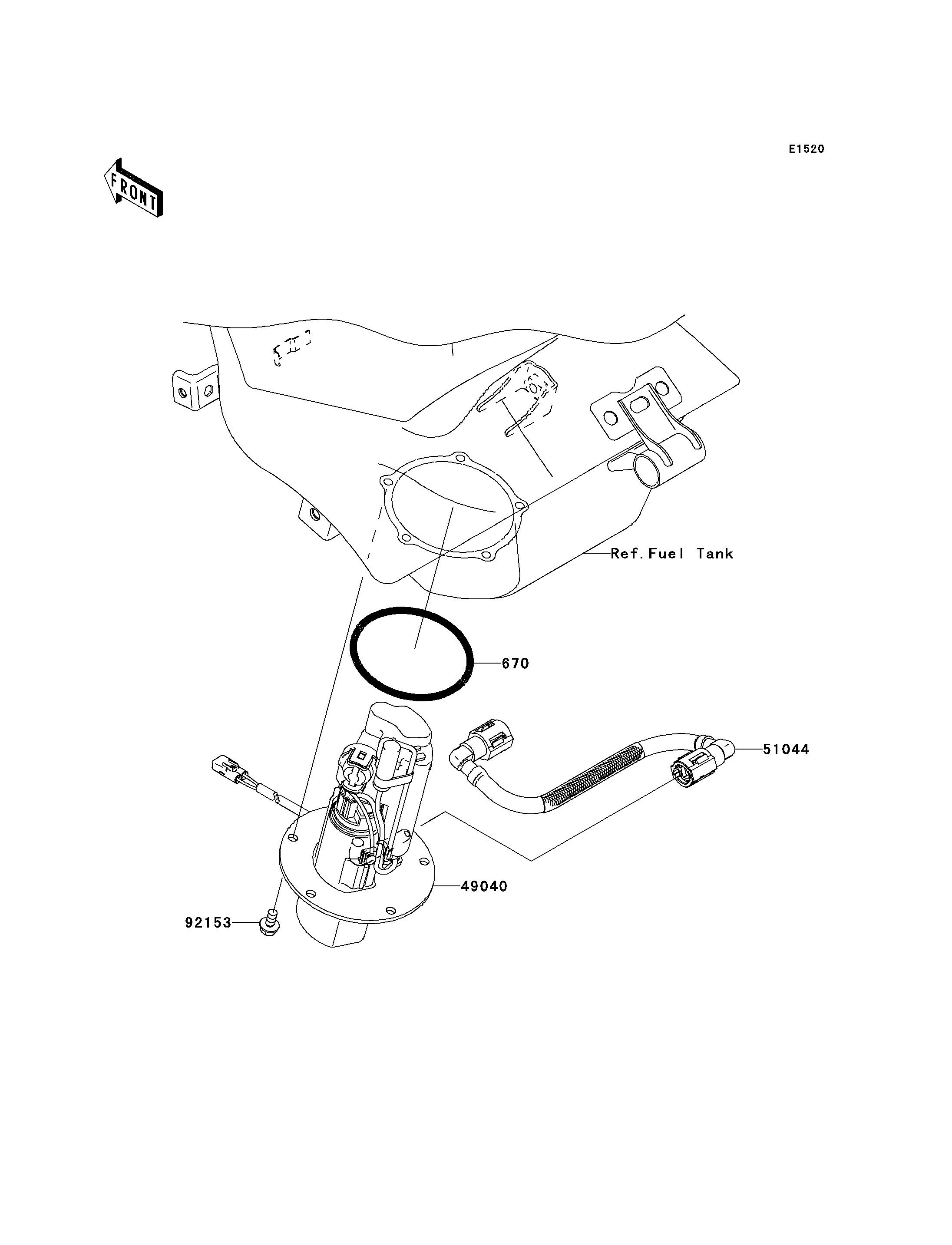

670
49040
51044
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING 670 670E5075 1
PUMP-FUEL 49040 49040-0007 1
TUBE-ASSY 51044 51044-0017 1
BOLT,FLANGED,6X12 92153 92153-1283 5
