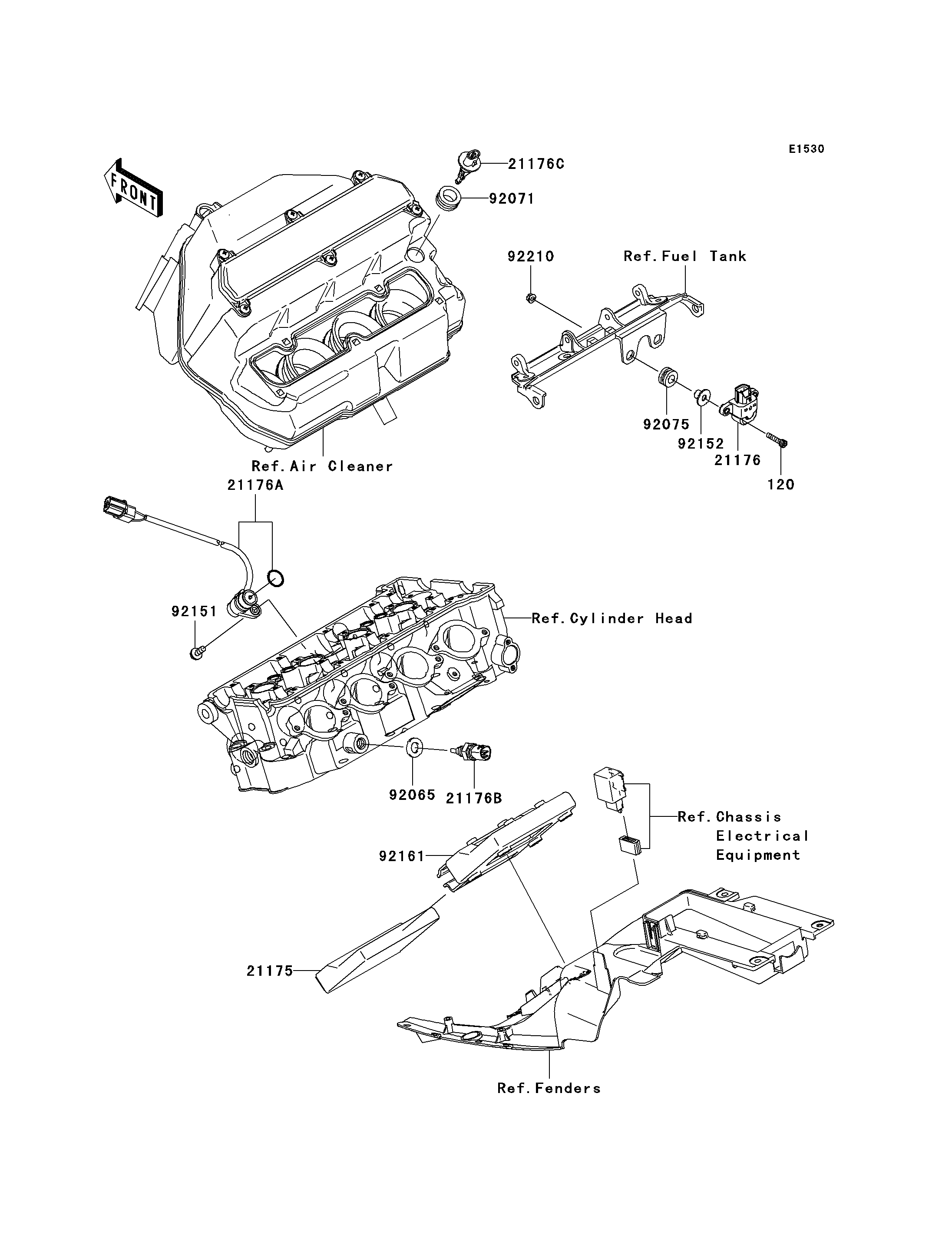

120
21175
21176
21176A
21176B
21176C
92065
92071
92075
92151
92152
92161
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X22 120 120W0522 2
CONTROL UNIT-ELECTRONIC 21175 21175-0066 1
SENSOR,VEHICLE-DOWN 21176 21176-0026 1
SENSOR,CAM 21176A 21176-0034 1
SENSOR,WATER TEMP 21176B 21176-1120 1
SENSOR,AIR TEMP 21176C 21176-2106 1
GASKET,12X22X2 92065 92065-097 1
GROMMET 92071 92071-2140 1
DAMPER 92075 92075-1912 2
BOLT,FLANGED,6X16 92151 92151-1774 1
COLLAR 92152 92152-0134 2
DAMPER 92161 92161-0179 1
NUT,FLANGED,5MM 92210 92210-0007 2
