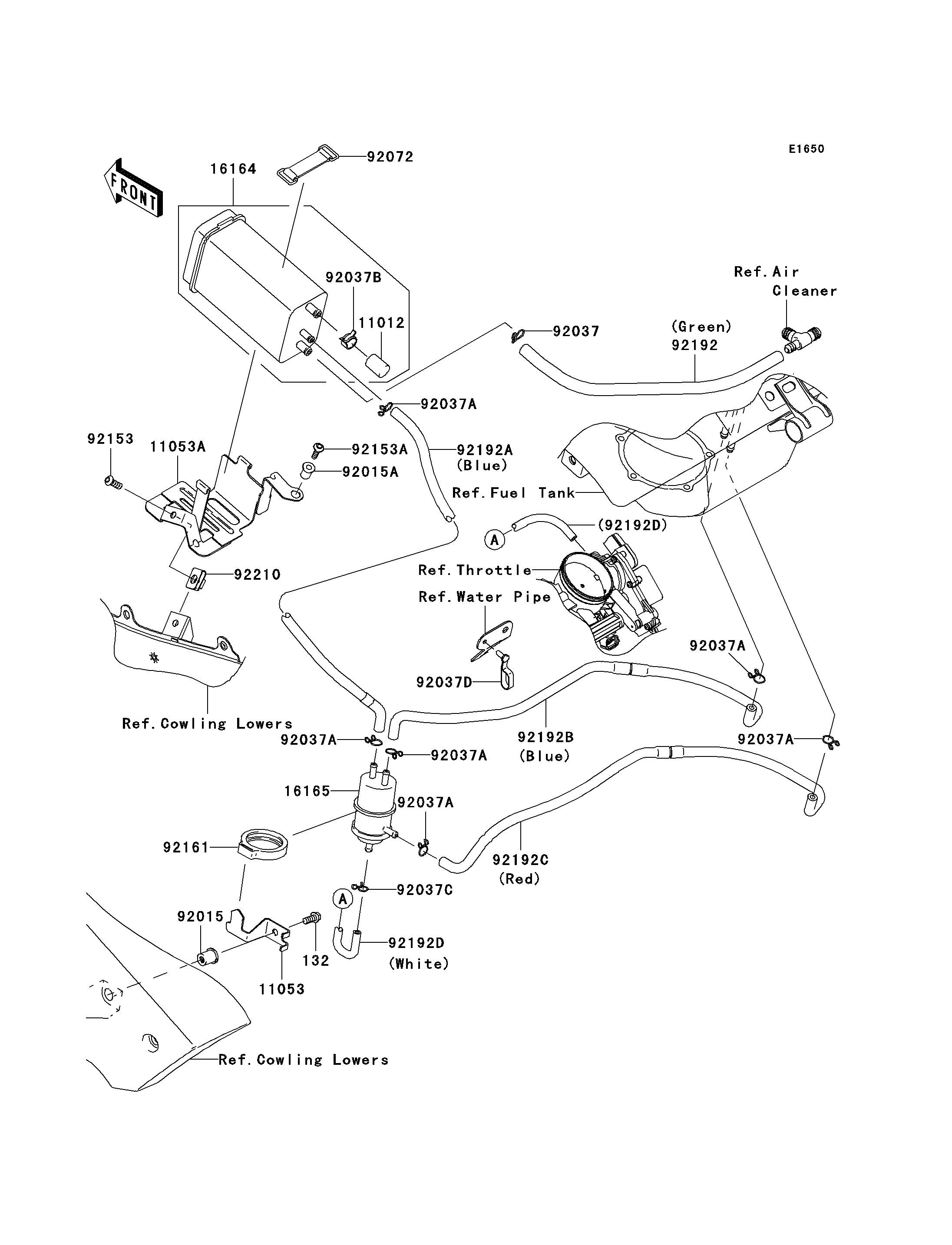

2006 Ninja® ZX™-6RR - Fuel Evaporative System(CA)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,CANISTER | 11012 | 11012-1388 | 1 | CA | |
| BRACKET | 11053 | 11053-1619 | 1 | CA | |
| BRACKET | 11053A | 11053-1658 | 1 | CA | |
| CANISTER | 16164 | 16164-1054 | 1 | CA | |
| SEPARATOR | 16165 | 16165-1001 | 1 | CA | |
| NUT | 92015 | 92015-1700 | 1 | CA | |
| NUT,WELL,5MM | 92015A | 92015-1757 | 1 | CA | |
| CLAMP,HOSE | 92037 | 92037-1104 | 1 | CA | |
| CLAMP,TUBE | 92037A | 92037-147 | 6 | CA | |
| CLAMP,CANISTER | 92037B | 92037-1512 | 1 | CA | |
| CLAMP | 92037C | 92037-1712 | 1 | CA | |
| CLAMP,SPEED,L=80.5 | 92037D | 92037-1903 | 1 | CA | |
| BAND,L=50 | 92072 | 92072-1419 | 1 | CA | |
| BOLT,SOCKET,6X16 | 92153 | 92153-0404 | 1 | CA | |
| BOLT,SOCKET,5X16 | 92153A | 92153-1244 | 1 | CA | |
| DAMPER | 92161 | 92161-0239 | 1 | CA | |
| TUBE,CANISTER-FITTING,GREEN | 92192 | 92192-0169 | 1 | CA | |
| TUBE,SEPARATOR-CANISTER,BLUE | 92192A | 92192-0170 | 1 | CA | |
| TUBE,SEPARATOR-TANK,BLUE | 92192B | 92192-0171 | 1 | CA | |
| TUBE,SEPARATOR-TANK,RED | 92192C | 92192-0173 | 1 | CA | |
| TUBE,THROTTLE-SEPARATOR,WHITE | 92192D | 92192-0175 | 1 | CA | |
| NUT | 92210 | 92210-0130 | 1 | CA | |
| BOLT-FLANGED-SMALL,6X14 | 132 | 132L0614 | 1 | CA |
