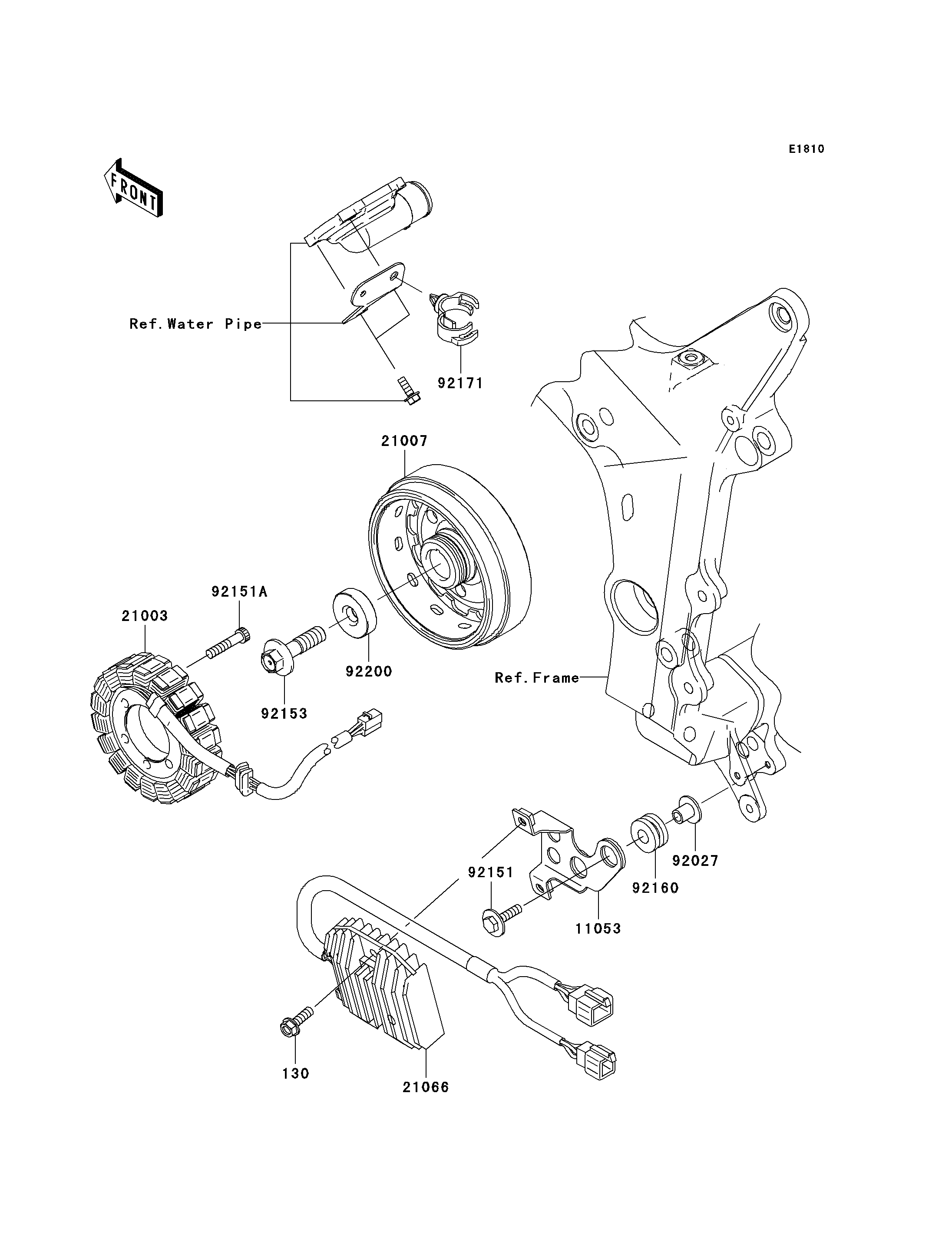

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20 130 130H0620 2
BRACKET 11053 11053-1836 1
STATOR 21003 21003-0023 1
ROTOR 21007 21007-0045 1
REGULATOR-VOLTAGE 21066 21066-0016 1
COLLAR,L=14.1 92027 92027-1920 2
BOLT,6X25 92151 92151-1241 2
BOLT,6X30 92151A 92151-1626 4
BOLT,11X40 92153 92153-0889 1
DAMPER 92160 92160-1162 2
CLAMP,DIA=20 92171 92171-0069 1
WASHER,11X34X9 92200 92200-0201 1
