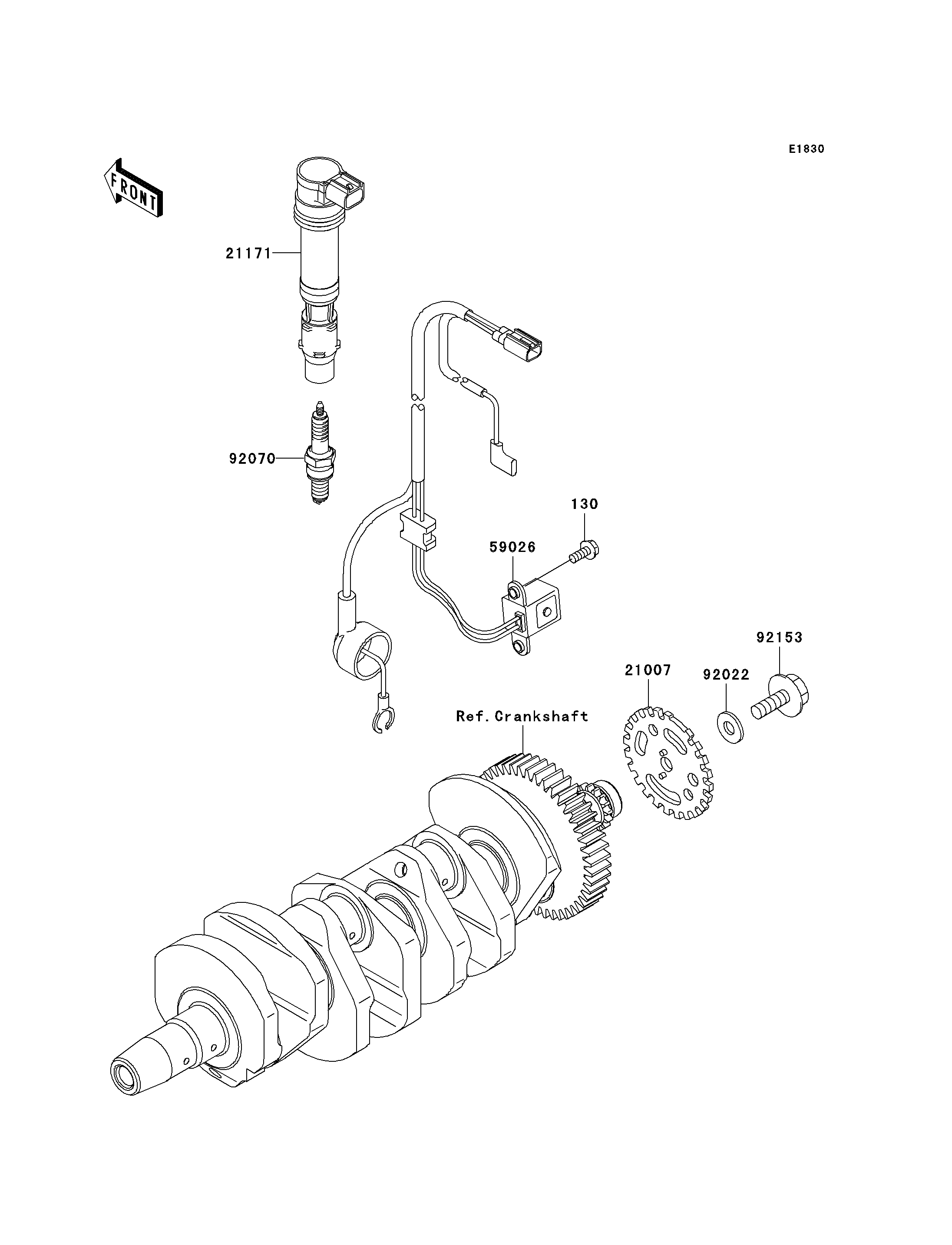

130
21007
21171
59026
92022
92070
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X12 130 130G0512 2
ROTOR,PULSING 21007 21007-0041 1
COIL-ASSY-IGNITION 21171 21171-1282 4
COIL-PULSING 59026 59026-0013 1
WASHER,8.2X19X2 92022 92022-1533 1
PLUG-SPARK,CR9E(NGK) 92070 92070-1266 4
BOLT,FLANGED,8X23 92153 92153-0549 1
