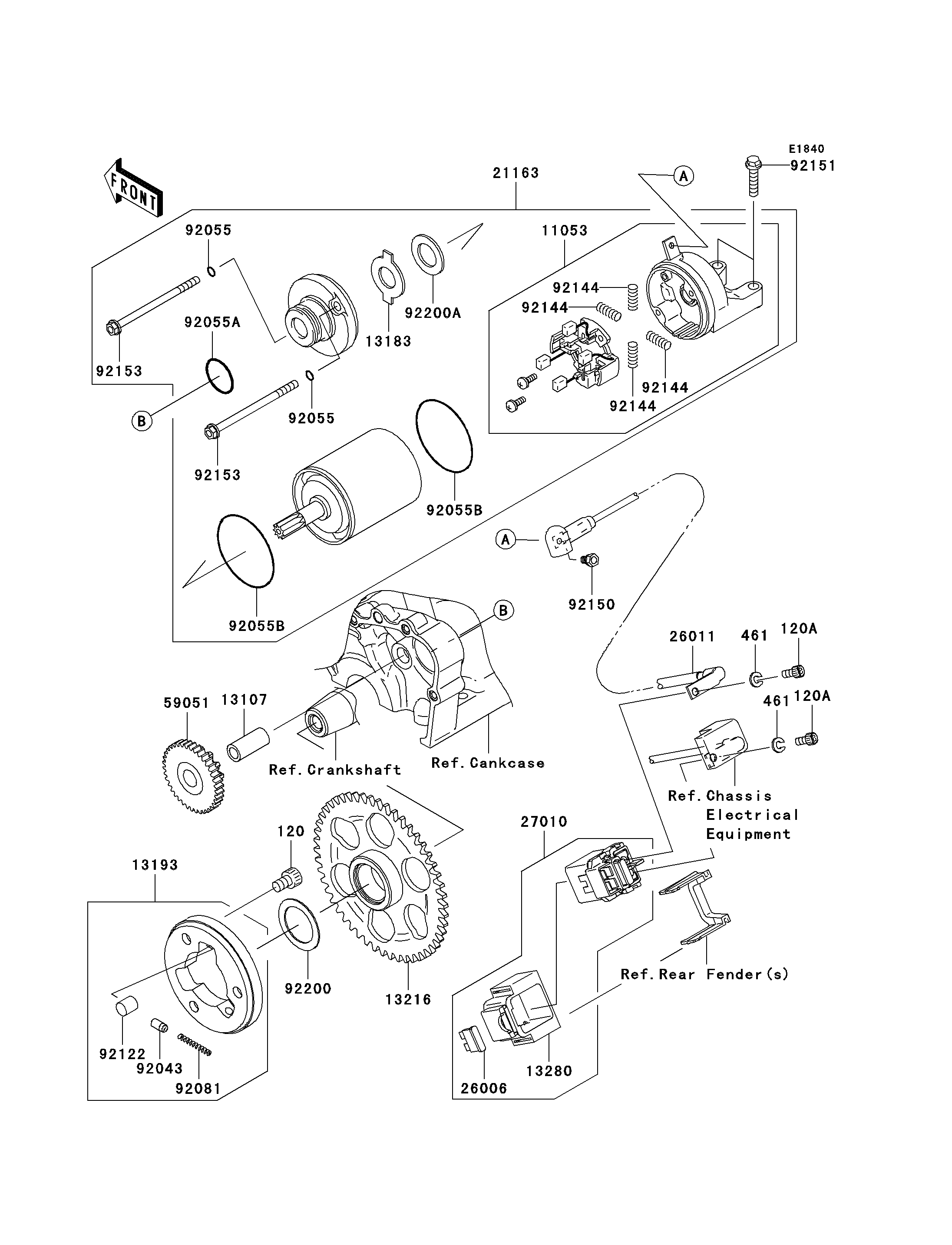

2006 Ninja® ZX™-6RR - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
120
120A
120A
461
461
11053
13107
13183
13193
13216
13280
21163
26006
26011
27010
59051
92043
92055
92055
92055A
92055B
92055B
92081
92122
92144
92144
92144
92144
92150
92151
92153
92153
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X12 120 120P0812 3
BOLT-SOCKET,5X10 120A 120S0510 2
WASHER-SPRING,5MM,BLACK 461 461K0500 2
BRACKET,STARTER 11053 11053-0224 1
SHAFT,7.8X12X26.5 13107 13107-1176 1
PLATE 13183 13183-1460 1
CLUTCH-ASSY-ONEWAY 13193 13193-0001 1
GEAR-COMP,ONEWAY CLUTCH 13216 13216-0011 1
HOLDER,SWITCH 13280 13280-0109 1
STARTER-ELECTRIC 21163 21163-0006 1
FUSE,30A-G 26006 26006-1006 1
WIRE-LEAD 26011 26011-0065 1
SWITCH,MAGNETIC 27010 27010-0030 1
GEAR-SPUR,IDLE 59051 59051-1413 1
PIN 92043 92043-132 3
RING-O,STARTER 92055 92055-0013 2
RING-O,24.4X3.1 92055A 92055-1262 1
RING-O 92055B 92055-1455 2
SPRING,COIL 92081 92081-159 3
ROLLER 92122 92122-006 3
SPRING,BRUSH 92144 92144-1423 4
BOLT 92150 92150-1305 1
BOLT,FLANGED-SMALL,6X25 92151 92151-1930 2
BOLT 92153 92153-0405 2
WASHER,28.5X40.0X1.0 92200 92200-0168 1
WASHER 92200A 92200-1019 1
