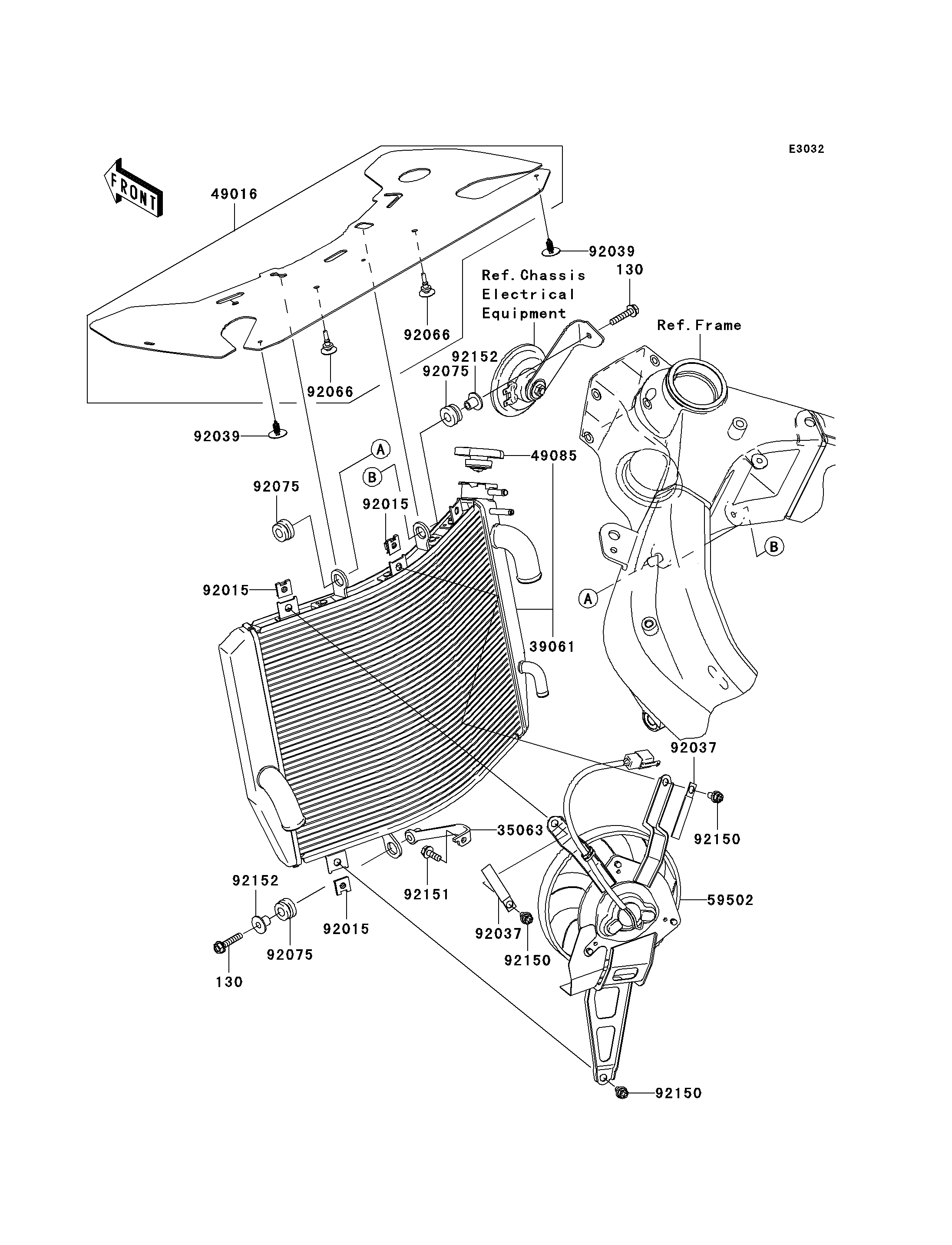

2006 Ninja® ZX™-6RR - Radiator

DOWNLOAD PDF
SELECT A NEW PART
130
130
35063
39061
49016
49085
59502
92015
92015
92015
92037
92037
92039
92039
92066
92066
92075
92075
92075
92150
92150
92150
92151
92152
92152
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X30 130 130W0630 2
STAY 35063 35063-0147 1
RADIATOR-ASSY 39061 39061-0042 1
COVER-SEAL,HOT WIND 49016 49016-0012 1
CAP-ASSY-PRESSURE 49085 49085-1066 1
FAN-ASSY 59502 59502-0015 1
NUT 92015 92015-1487 3
CLAMP,L=60 92037 92037-1069 2
RIVET 92039 92039-0027 2
PLUG 92066 92066-1576 2
DAMPER,RUBBER 92075 92075-1123 3
BOLT,6X12 92150 92150-1186 3
BOLT,FLANGED,6X16 92151 92151-1774 1
COLLAR 92152 92152-1074 2
