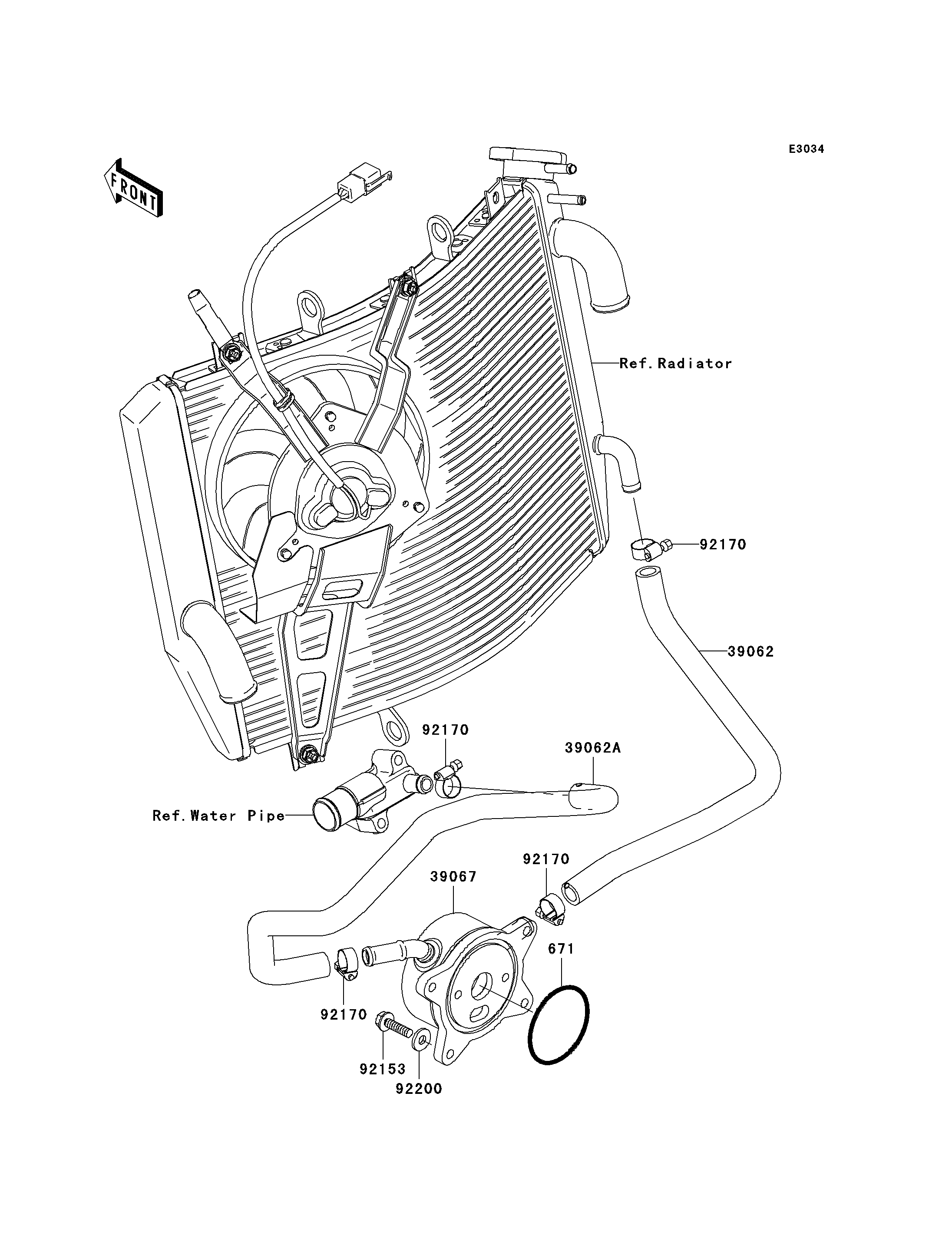

671
39062
39062A
39067
92153
92170
92170
92170
92170
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING,65MM 671 671B2565 1
HOSE-COOLING,COOLER-RAD 39062 39062-0068 1
HOSE-COOLING,COOLER-CYLINDER 39062A 39062-0069 1
COOLER-OIL 39067 39067-0011 1
BOLT,6X22 92153 92153-0821 4
CLAMP 92170 92170-3729 4
WASHER,6.5X16X2 92200 92200-0158 4
