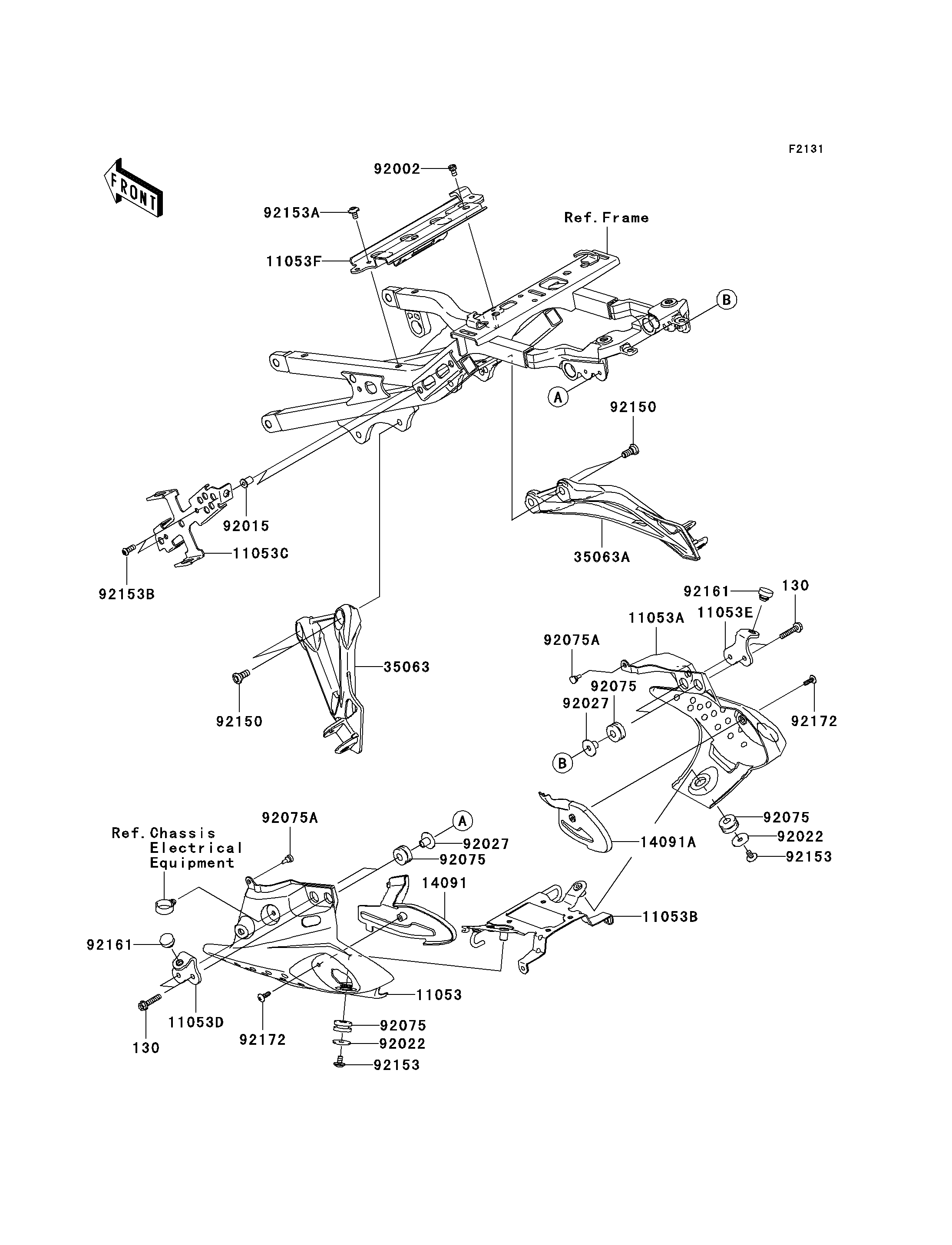

2006 Ninja® ZX™-6RR - Frame Fittings(Rear)

DOWNLOAD PDF
SELECT A NEW PART
130
130
11053
11053A
11053B
11053C
11053D
11053E
11053F
14091
14091A
35063
35063A
92002
92015
92022
92022
92027
92027
92075
92075
92075
92075
92075A
92075A
92150
92150
92153
92153
92153A
92153B
92161
92161
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X30 130 130L0630 4
BRACKET,REAR SIGNAL LAMP,LH 11053 11053-1404 1
BRACKET,REAR SIGNAL LAMP,RH 11053A 11053-1405 1
BRACKET,REAR FLAP 11053B 11053-1538 1
BRACKET,RELAY BOX 11053C 11053-1664 1
BRACKET,LH 11053D 11053-1701 1
BRACKET,RH 11053E 11053-1702 1
BRACKET,FRONT SEAT 11053F 11053-1721 1
COVER,REAR SIGNAL LAMP,LH 14091 14091-0362 1
COVER,REAR SIGNAL LAMP,RH 14091A 14091-0363 1
STAY,RR,LH 35063 35063-0144 1
STAY,RR,RH 35063A 35063-0145 1
BOLT,SOCKET,6X14 92002 92002-1175 1
NUT,WELL,5MM 92015 92015-1757 2
WASHER,7X24X1.6 92022 92022-1160 2
COLLAR,L=13.1,BLACK 92027 92027-1450 4
DAMPER 92075 92075-1690 6
DAMPER 92075A 92075-1808 2
BOLT,SOCKET,8X20 92150 92150-1760 4
BOLT,SOCKET,6X10 92153 92153-0410 2
BOLT,6X18 92153A 92153-0816 1
BOLT,SOCKET,5X16 92153B 92153-1244 2
DAMPER 92161 92161-0046 2
SCREW,TAPPING,5X16 92172 92172-0175 2
