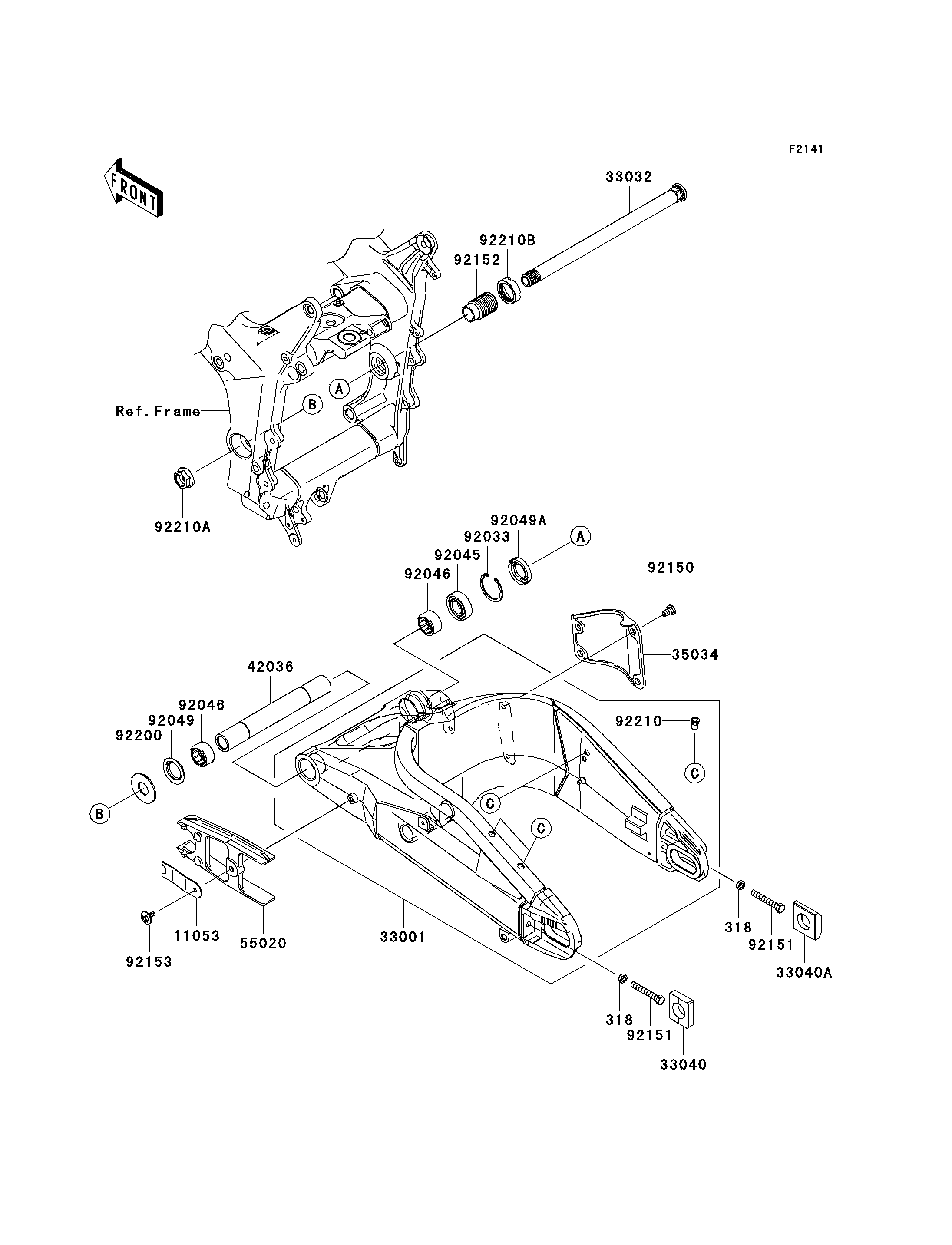

2006 Ninja® ZX™-6RR - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
318
318
11053
33001
33032
33040
33040A
35034
42036
55020
92033
92045
92046
92046
92049
92049A
92150
92151
92151
92152
92153
92200
92210
92210A
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX-SMALL,8MM 318 318G0800 2
BRACKET,CHAIN GUARD 11053 11053-1691 1
ARM-COMP-SWING,F.S.BLACK 33001 33001-0043-8F 1
SHAFT-SWING ARM 33032 33032-0010 1
ADJUSTER-CHAIN,LH 33040 33040-1114 1
ADJUSTER-CHAIN,RH 33040A 33040-1180 1
REINFORCE,MUFFLER GUARD,BLACK 35034 35034-0053-8F 1
SLEEVE,SWING ARM,L=213 42036 42036-1283 1
GUARD,CHAIN 55020 55020-0111 1
RING-SNAP,42MM 92033 92033-1041 1
BEARING-BALL,6004UL11 92045 92045-0017 1
BEARING-NEEDLE,7E-HVS 28X34X17 92046 92046-0008 2
SEAL-OIL 92049 92049-1181 1
SEAL-OIL,MHSA25 42 6 92049A 92049-1314 1
BOLT,8X15 92150 92150-1852 4
BOLT,8X55 92151 92151-1578 2
COLLAR,SWING ARM,L=12.5 92152 92152-0154 1
BOLT,6X16 92153 92153-1003 1
WASHER,20.3X48X2.3 92200 92200-1167 1
NUT,6MM 92210 92210-0099 3
NUT,FLANGED,20MM 92210A 92210-0106 1
NUT,30MM 92210B 92210-0134 1
