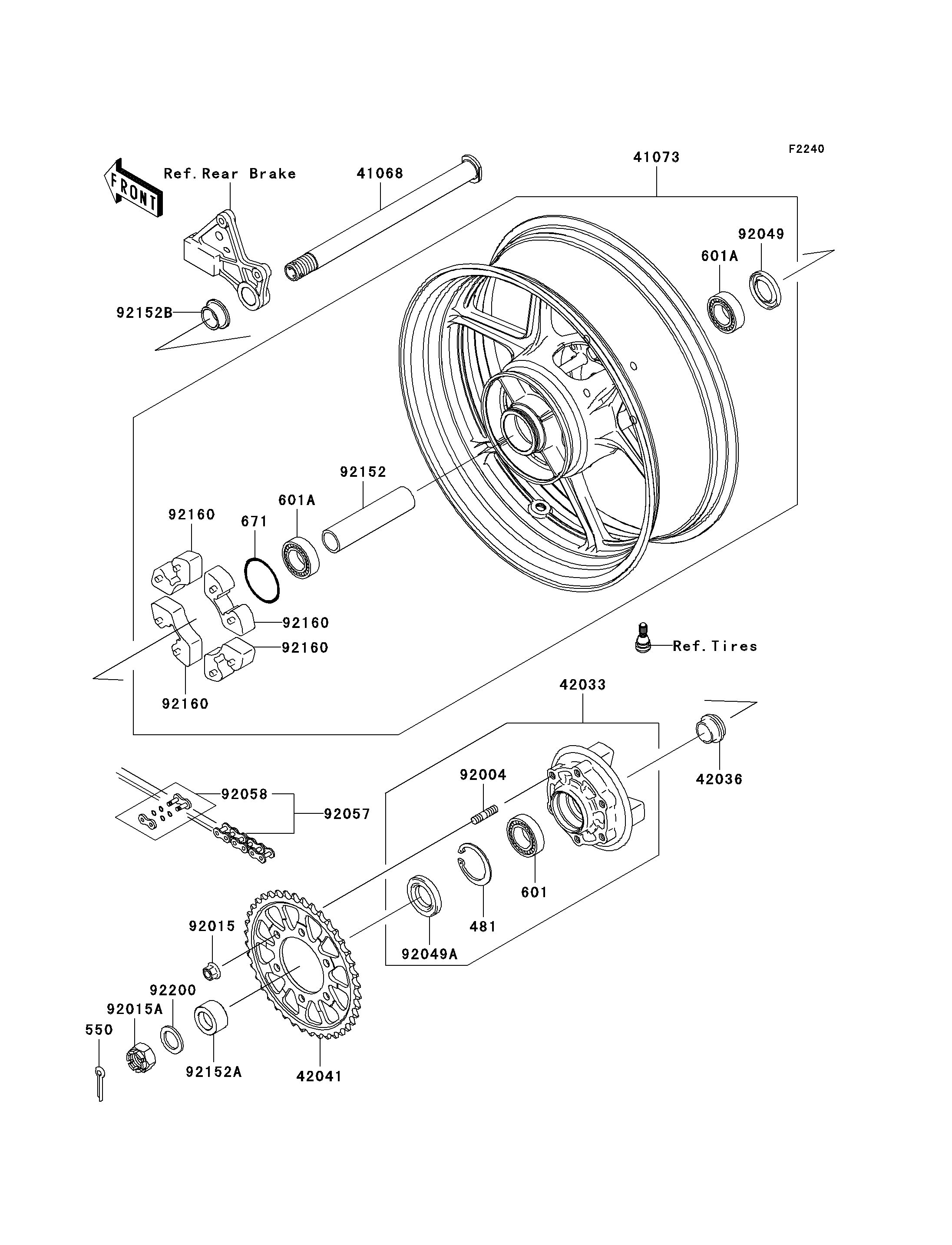

2006 Ninja® ZX™-6RR - Rear Wheel/Chain

DOWNLOAD PDF
SELECT A NEW PART
481
550
601
601A
601A
671
41068
41073
42033
42036
42041
92004
92015
92015A
92049
92049A
92057
92058
92152
92152A
92152B
92160
92160
92160
92160
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP 481 481J5500 1
PIN-COTTER,4.0X40 550 550D4040 1
BEARING-BALL,#6006G 601 601B6006G 1
BEARING-BALL 601A 601B6205UU 2
O RING,60MM 671 671B2560 1
AXLE,RR 41068 41068-0035 1
WHEEL-ASSY,RR,GRAYSTONE 41073 41073-0040-2A 1
COUPLING-ASSY,RR HUB 42033 42033-1213 1
SLEEVE,RR HUB,L=22 42036 42036-1279 1
SPROCKET-HUB,43T 42041 42041-0017 1
STUD,10X19 92004 92004-1275 6
NUT,FLANGED,10MM 92015 92015-1335 6
NUT,CASTLE,24MM 92015A 92015-1844 1
SEAL-OIL,RR HUB 92049 92049-1375 1
SEAL-OIL,PJN 40 55 8 92049A 92049-1376 1
CHAIN,DRIVE,EK520MVXL1X110L 92057 92057-0089 1
JOINT-CHAIN,DRIVE 92058 92058-0007 1
COLLAR,RR HUB,L=137 92152 92152-0214 1
COLLAR,RR AXLE,LH,L=21.5 92152A 92152-0244 1
COLLAR,RR AXLE,RH,L=18 92152B 92152-0245 1
DAMPER,SHOCK,RR HUB 92160 92160-1485 4
WASHER,25.5X38X3.2 92200 92200-1479 1
