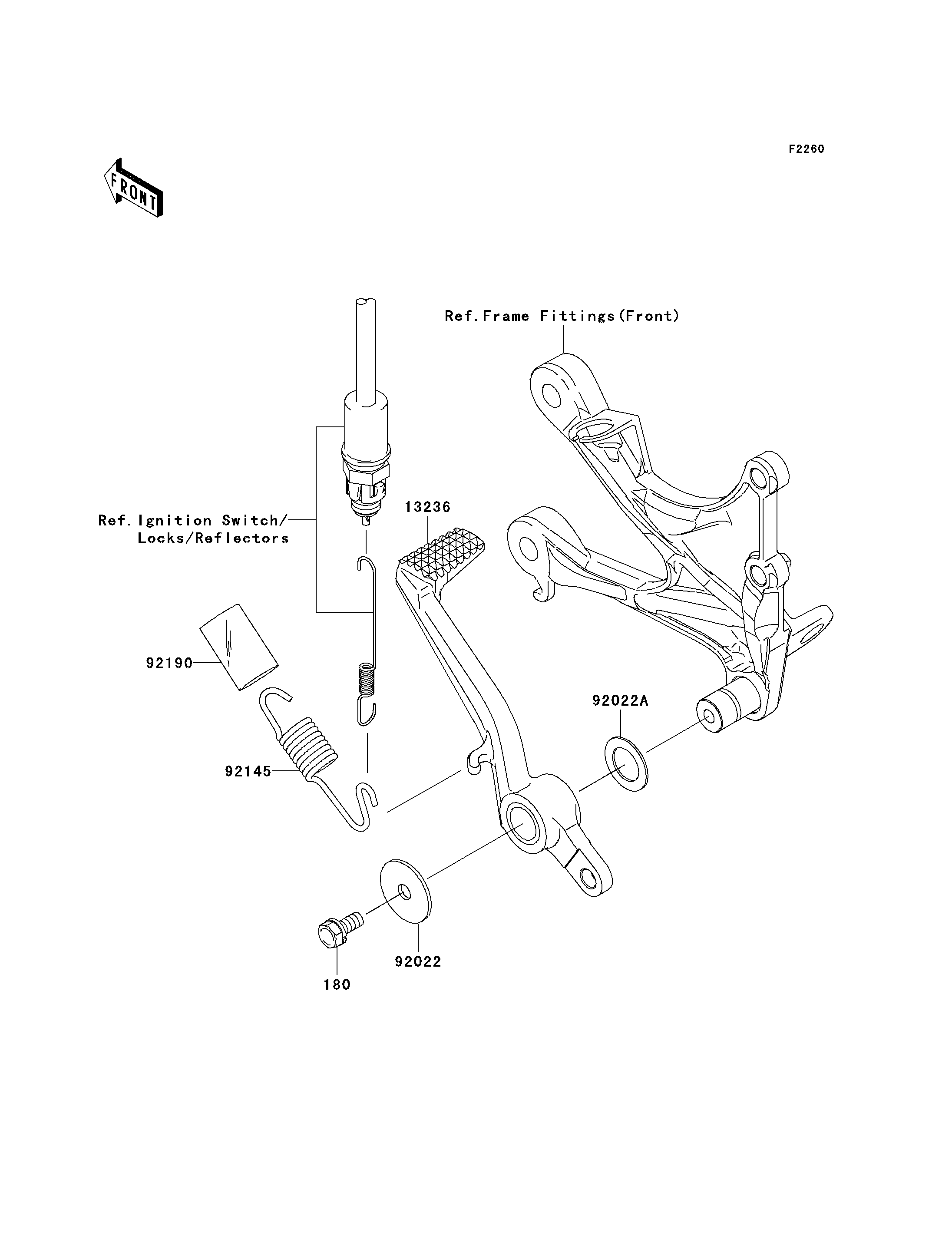

2006 Ninja® ZX-6RR - Brake Pedal/Torque Link

180
13236
92022
92022A
92145
92190
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WS,6X14 180 180L0614 1
LEVER-COMP,BRAKE PEDAL 13236 13236-0069 1
WASHER,7X28X1.6 92022 92022-1282 1
WASHER,15.3X24X1 92022A 92022-326 1
SPRING,BRAKE PEDAL RETURN 92145 92145-0230 1
TUBE,16X19X30 92190 92190-1185 1
