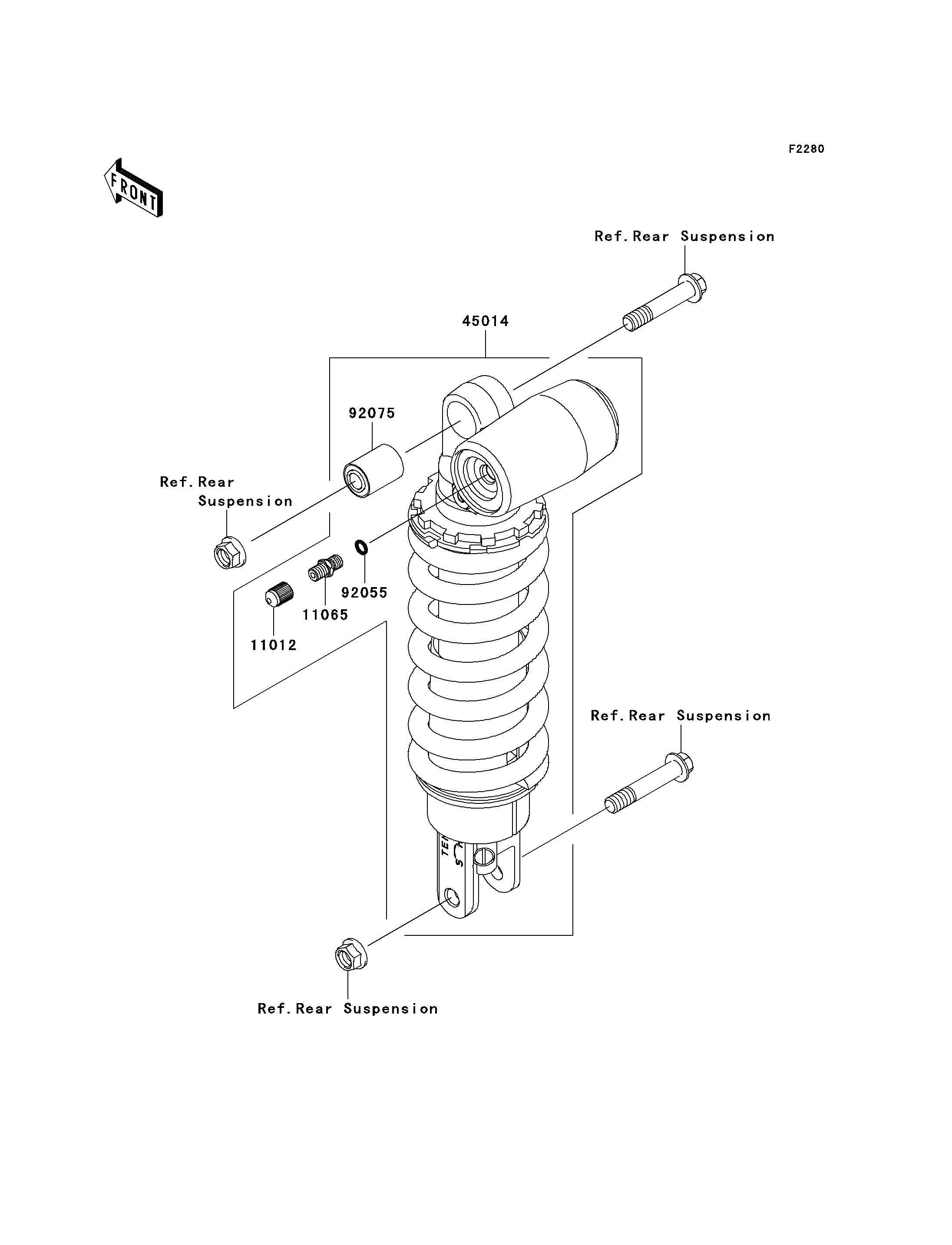

11012
11065
45014
92055
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1283 1
CAP,AIR VALVE 11065 11065-0009 1
SHOCKABSORBER 45014 45014-0090 1
RING-O 92055 92055-0002 1
DAMPER,SHOCKABSORBER 92075 92075-1426 1
