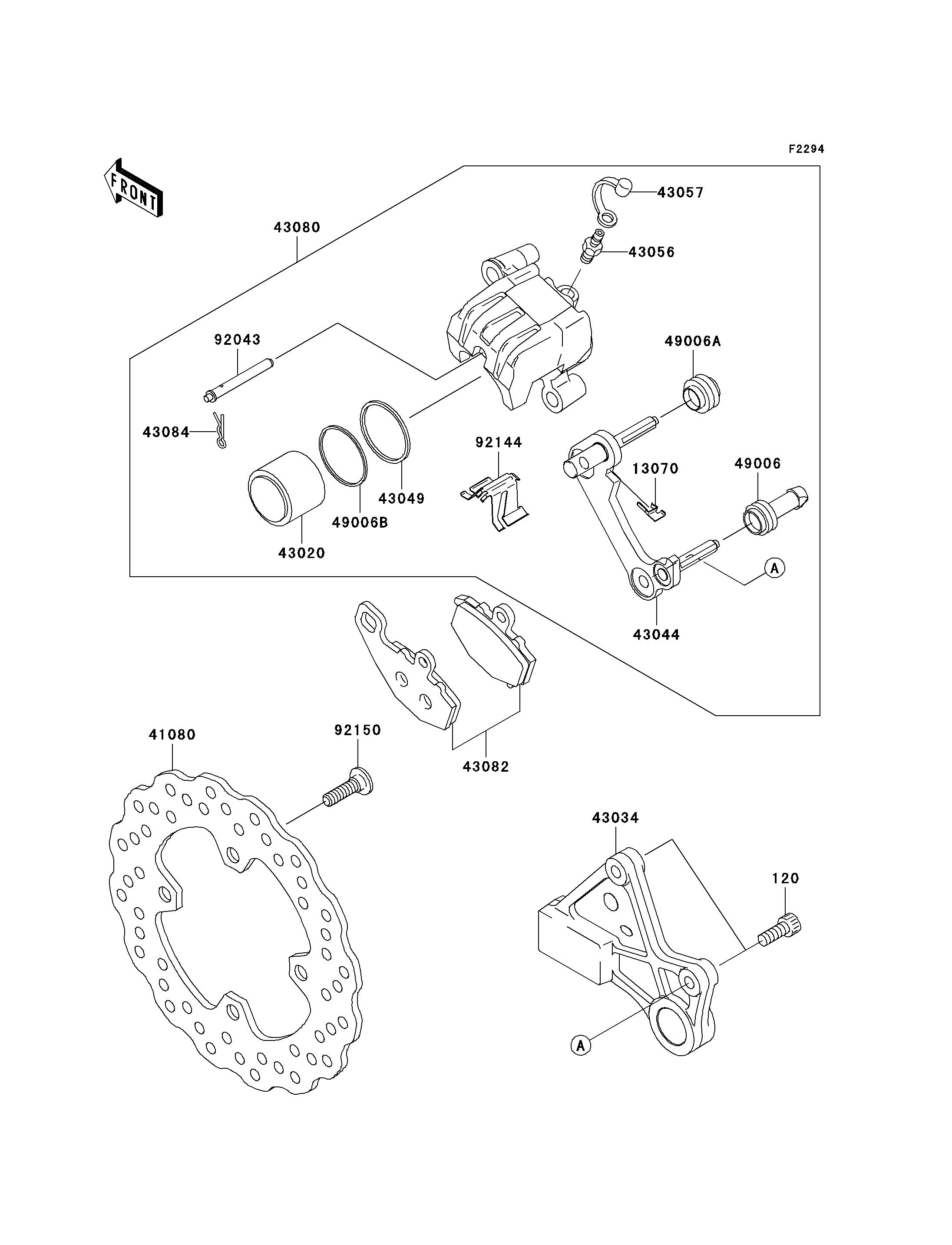

2006 Ninja® ZX™-6RR - Rear Brake

DOWNLOAD PDF
SELECT A NEW PART
120
13070
41080
43020
43034
43044
43049
43056
43057
43080
43082
43084
49006
49006A
49006B
92043
92144
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X20 120 120W0820 2
GUIDE,BRAKE PAD 13070 13070-0045 1
DISC,RR 41080 41080-0040 1
PISTON-COMP-BRAKE 43020 43020-1119 1
HOLDER-BRAKE,REAR BRAKE 43034 43034-0008 1
HOLDER-COMP-CALIPER,RR 43044 43044-1110 1
PACKING,PISTON SEAL 43049 43049-1097 1
BREATHER-BRAKE 43056 43056-1054 1
CAP-BREATHER 43057 43057-003 1
CALIPER-SUB-ASSY,RR,R.GOLD 43080 43080-5061-483 1
PAD-ASSY-BRAKE 43082 43082-0004 1
CLAMP,PAD 43084 43084-003 1
BOOT,CALIPER 49006 49006-1054 1
BOOT,CALIPER 49006A 49006-1095 1
BOOT,PISTON SEAL 49006B 49006-1212 1
PIN,PAD 92043 92043-1489 1
SPRING,PAD 92144 92144-1719 1
BOLT,SOCKET,8X30 92150 92150-1771 4
