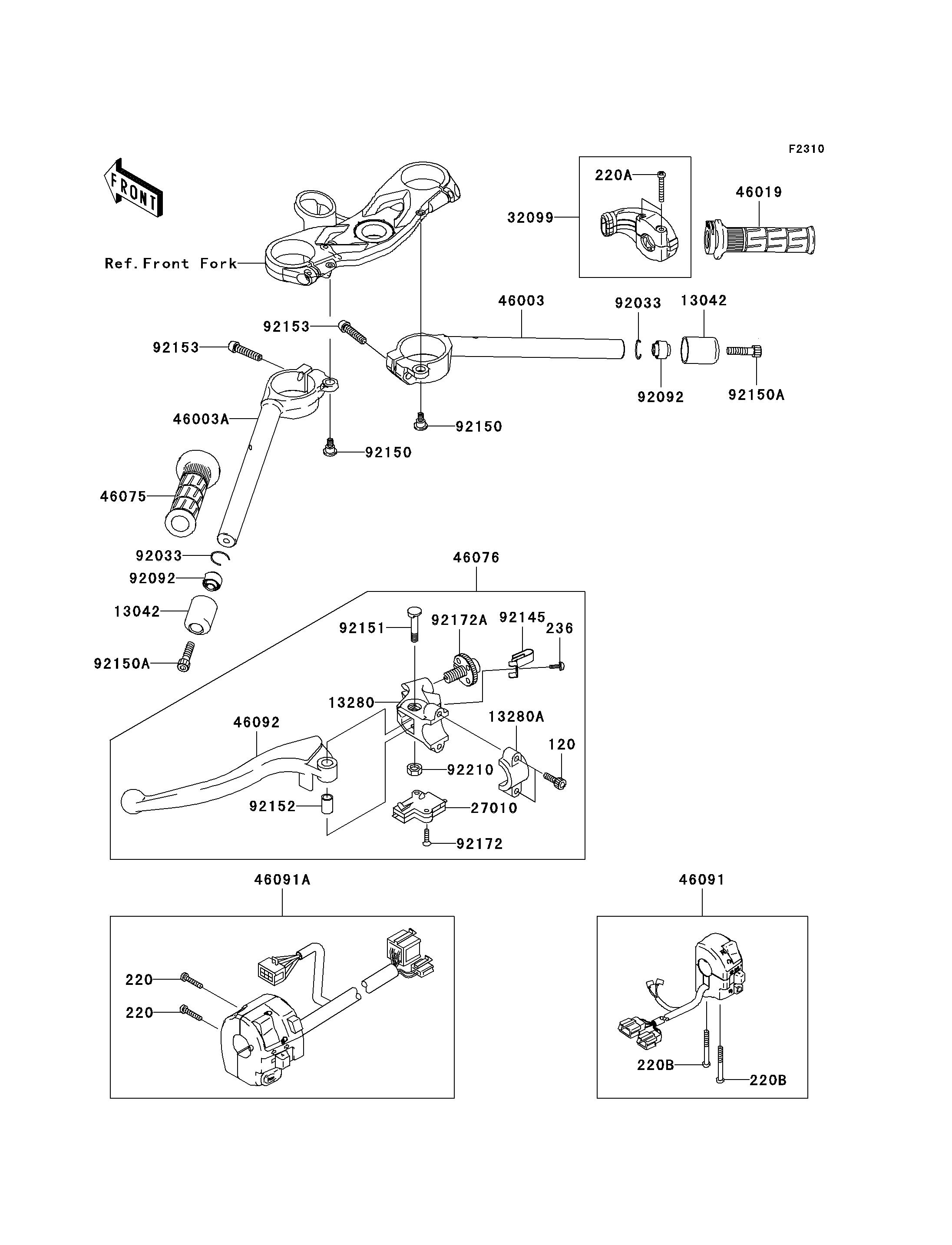

2006 Ninja® ZX™-6RR - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
120
220
220
220A
220B
220B
236
13042
13042
13280
13280A
27010
32099
46003
46003A
46019
46075
46076
46091
46091A
46092
92033
92033
92092
92092
92145
92150
92150
92150A
92150A
92151
92152
92153
92153
92172
92172A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X20 120 120T0620 2
SCREW-PAN-CROS,5X25 220 220C0525 2
SCREW-PAN-CROS,5X35 220A 220C0535 2
SCREW-PAN-CROS,5X45 220B 220C0545 2
SCREW-PAN-WSP-CROS,4X10 236 236C0410 1
WEIGHT,HANDLE 13042 13042-1133 2
HOLDER,CLUTCH LEVER 13280 13280-0034 1
HOLDER,CLUTCH LEVER 13280A 13280-0035 1
SWITCH,CLUTCH 27010 27010-1492 1
CASE,THROTTLE CABLE 32099 32099-1193 1
HANDLE,RH 46003 46003-0068 1
HANDLE,LH 46003A 46003-1590 1
GRIP-ASSY,THROTTLE 46019 46019-0001 1
GRIP,LH 46075 46075-1144 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0024 1
HOUSING-ASSY-CONTROL,RH 46091 46091-0040 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-0054 1
LEVER-GRIP,CLUTCH 46092 46092-0006 1
RING-SNAP,OD=22.2 92033 92033-1102 2
BUSHING-RUBBER,HANDLE 92092 92092-1075 2
SPRING 92145 92145-1286 1
BOLT,6MM 92150 92150-1090 2
BOLT,SOCKET,8X30 92150A 92150-1604 2
BOLT 92151 92151-1523 1
COLLAR 92152 92152-0103 1
BOLT,SOCKET,8X35 92153 92153-0907 2
SCREW,3X16 92172 92172-0183 2
SCREW,ADJUST NUT 92172A 92172-1060 1
NUT,LOCK,6MM 92210 92210-0006 1
