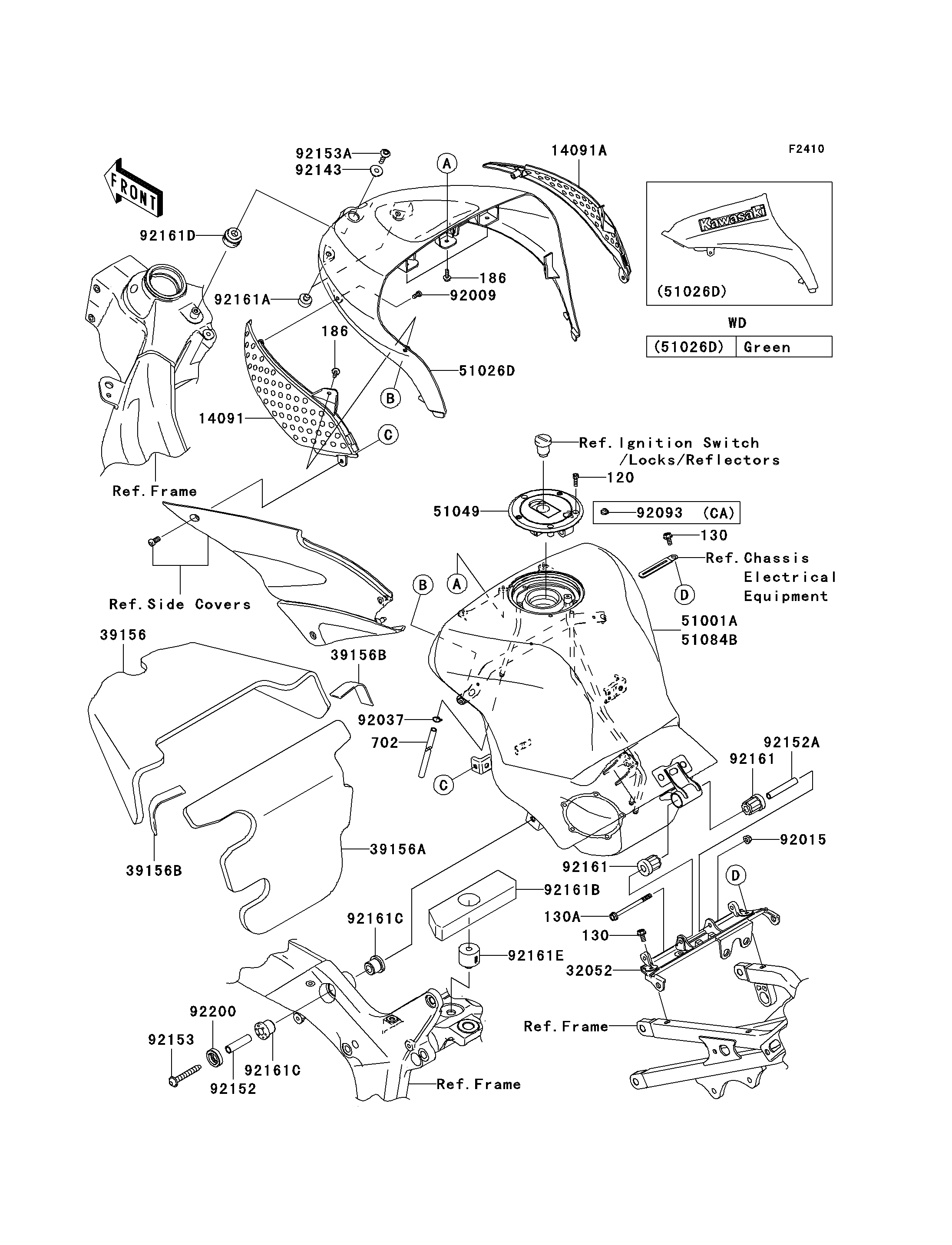

2006 Ninja® ZX™-6RR - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
14091
14091
14091A
14091A
32052
32052
39156
39156
39156A
39156A
39156B
39156B
39156B
39156B
51026D
51026D
51049
51049
92009
92009
92015
92015
92037
92037
92143
92143
92152
92152
92152A
92152A
92153
92153
92153A
92153A
92161
92161
92161
92161
92161A
92161A
92161B
92161B
120
120
130
130
130
130
130A
130A
186
186
186
186
702
702
92161C
92161C
92161C
92161C
92161D
92161D
92161E
92161E
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,KNEE GRIP,LH 14091 14091-0324 1
COVER,KNEE GRIP,RH 14091A 14091-0325 1
BRACKET-TANK 32052 32052-0033 1
PAD,FUEL TANK COVER 39156 39156-0079 1
PAD,FUEL TANK 39156A 39156-0080 1
PAD,FUEL TANK COVER 39156B 39156-0096 2
COVER TANK,L.GREEN 51026D 51026-5031-777 1
CAP-TANK,FUEL 51049 51049-0010 1
SCREW,TAPPING,5X12 92009 92009-1319 2
NUT,LOCK,FLANGED,6MM 92015 92015-1675 1
CLAMP,TUBE 92037 92037-010 1
COLLAR,L=9.6 92143 92143-1016 1
COLLAR,8.8X12X46.5 92152 92152-0271 2
COLLAR,6.8X10X60 92152A 92152-1182 1
BOLT,SOCKET,8X65 92153 92153-0879 2
BOLT,SOCKET,6X23 92153A 92153-1267 1
DAMPER,FUEL TANK,RR 92161 92161-0207 2
DAMPER 92161A 92161-0223 2
DAMPER 92161B 92161-0262 1
BOLT-SOCKET,5X16 120 120S0516 3
BOLT-FLANGED,6X14 130 130H0614 2
BOLT-FLANGED,6X80 130A 130H0680 1
BOLT-UPSET-WP,5X14 186 186H0514 5
TUBE-RUBBER,6X850 702 702A06850 1
DAMPER,FUEL TANK,SIDE 92161C 92161-0274 4
DAMPER 92161D 92161-0287 1
DAMPER 92161E 92161-1116 1
WASHER,FUEL TANK,SIDE 92200 92200-0197 2
TANK-COMP-FUEL,L.GREEN 51001A 51001-0085-777 1 US
TANK-COMP-FUEL,L.GREEN 51084B 51084-5098-777 1 CA
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
