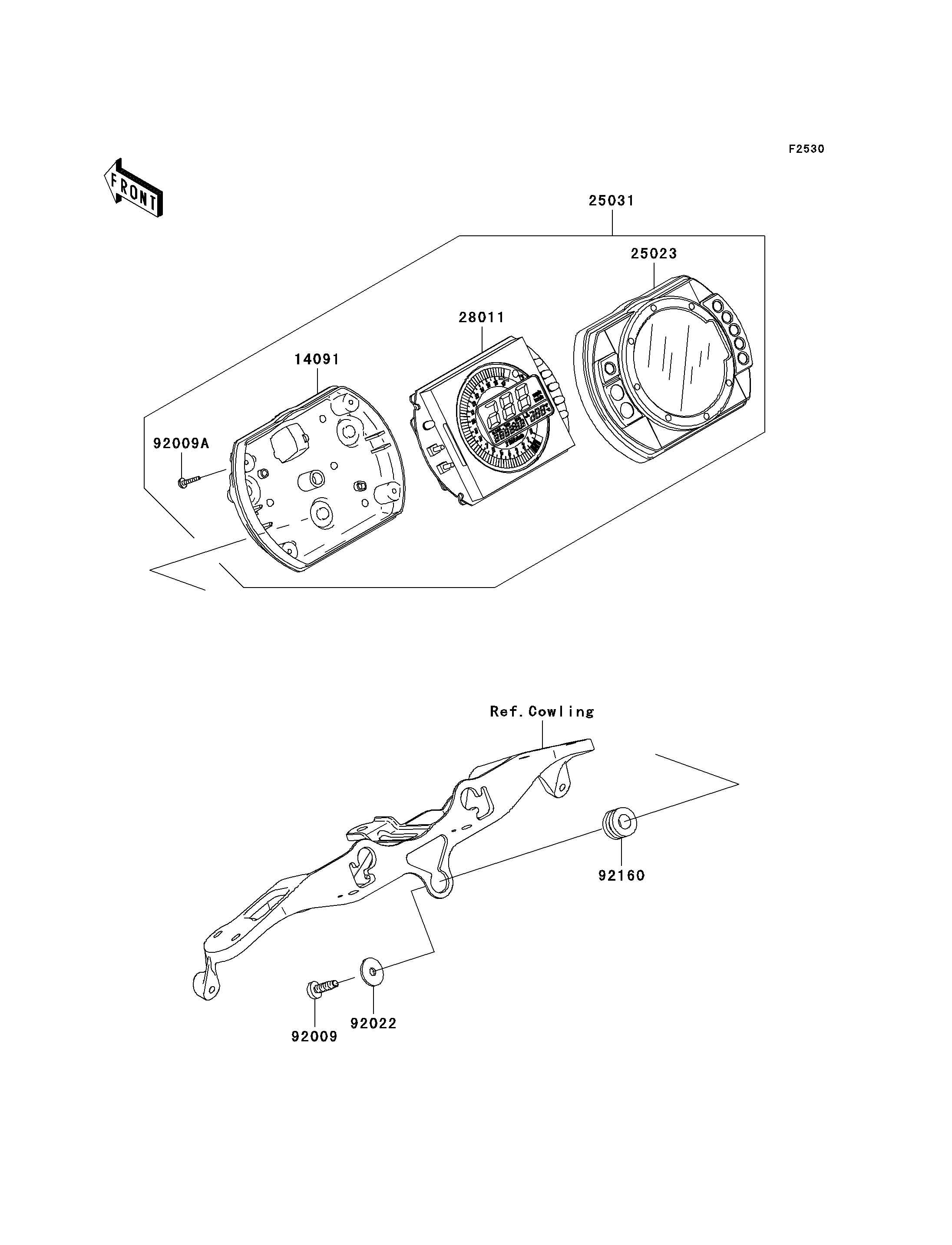

14091
25023
25031
28011
92009
92009A
92022
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,METER,LWR 14091 14091-1569 1
COVER-METER CASE,UPP 25023 25023-1268 1
METER-ASSY,LCD 25031 25031-0067 1
METER,LCD 28011 28011-0029 1
SCREW,TAPPING,5X14 92009 92009-1197 3
SCREW,TAPPING,3X14 92009A 92009-1592 5
WASHER,5.5X20X1.2 92022 92022-1405 3
DAMPER 92160 92160-1167 3
