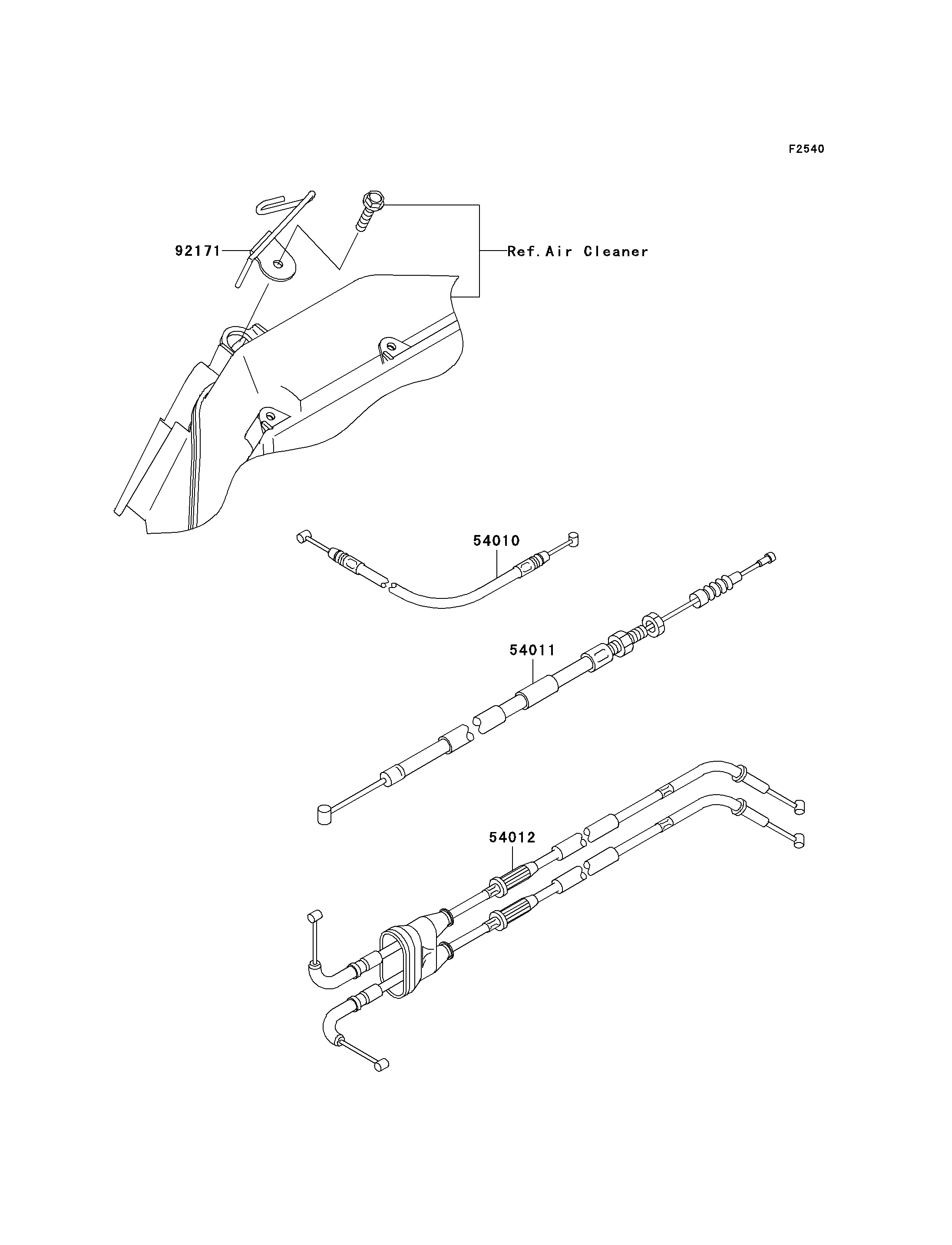

54010
54011
54012
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE,SEAT LOCK 54010 54010-0030 1
CABLE-CLUTCH 54011 54011-0050 1
CABLE-THROTTLE 54012 54012-0132 1
CLAMP,CABLE 92171 92171-0447 1
