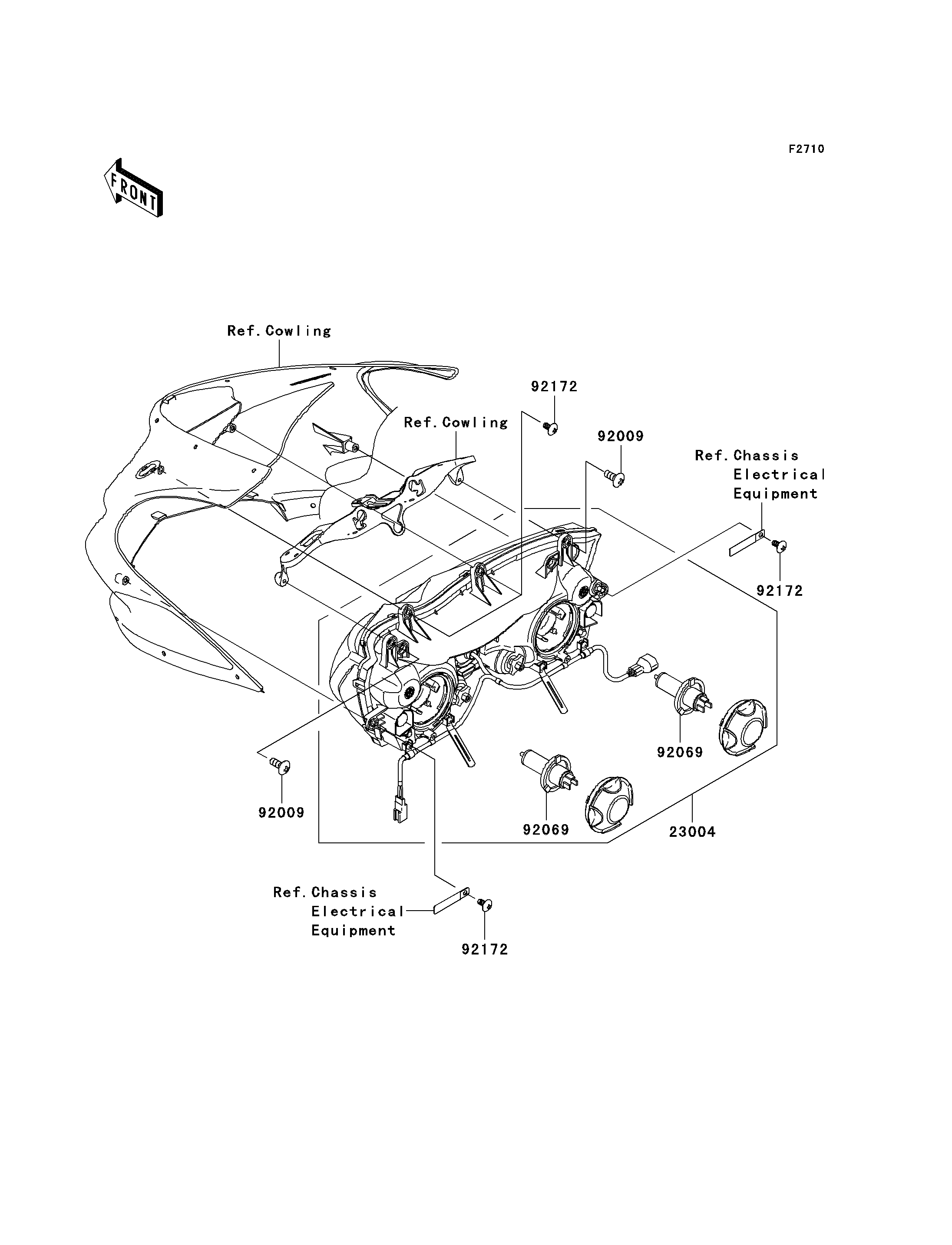

23004
92009
92009
92069
92069
92172
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP-HEAD 23004 23004-0043 1
SCREW,6X15 92009 92009-3830 2
BULB,12V 55W,H7 92069 92069-1126 2
SCREW,TAPPING,5X16 92172 92172-0175 4
