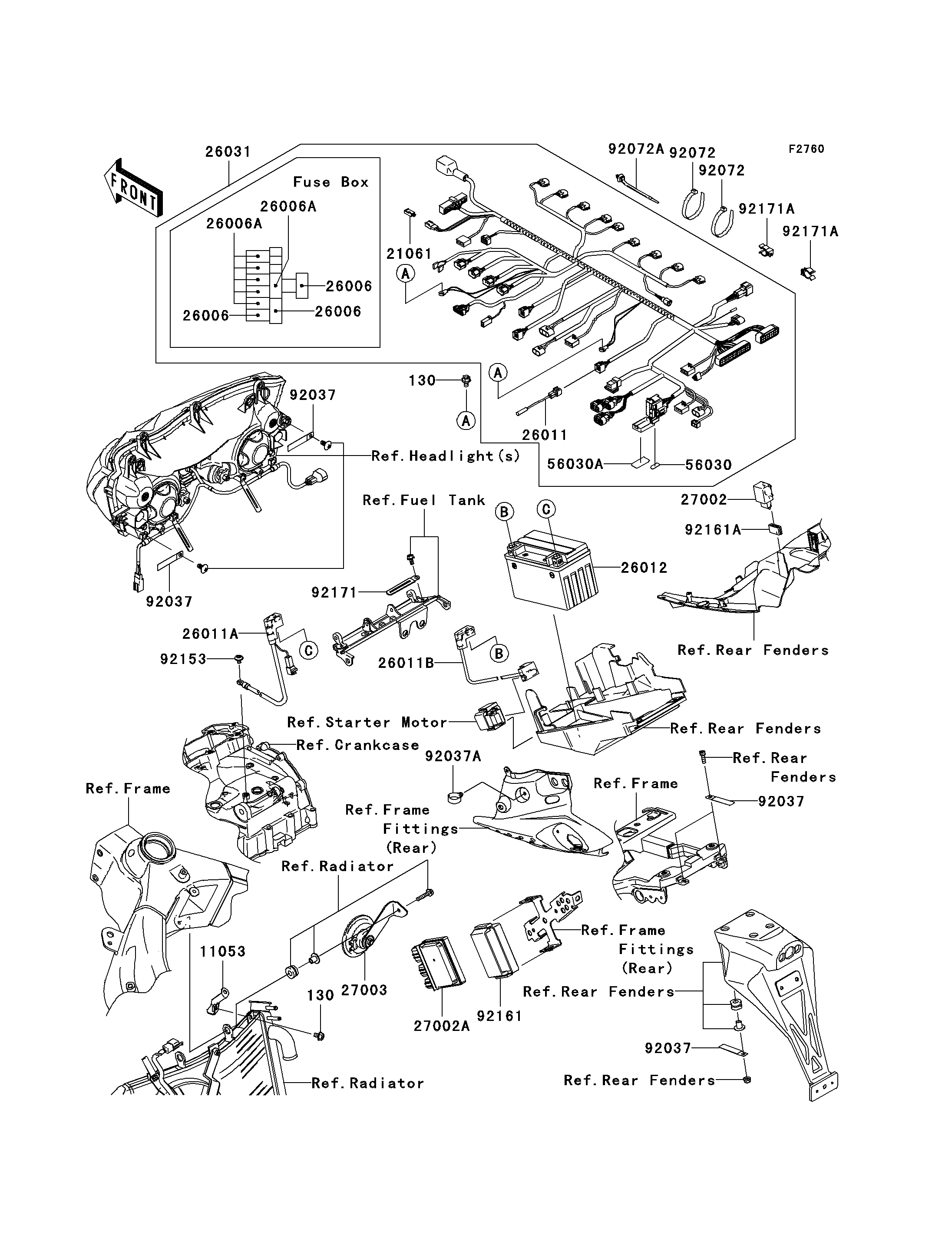

2006 Ninja® ZX™-6RR - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130
11053
21061
26006
26006
26006
26006A
26006A
26011
26011A
26011B
26012
26031
27002
27002A
27003
56030
56030A
92037
92037
92037
92037
92037A
92072
92072
92072A
92153
92161
92161A
92171
92171A
92171A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130V0610 3
BRACKET,RADIATOR 11053 11053-1228 1
RECTIFIER 21061 21061-0001 1
FUSE,15A 26006 26006-0001 3
FUSE,10A 26006A 26006-1078 6
WIRE-LEAD 26011 26011-0037 1
WIRE-LEAD,BATTERY(-) 26011A 26011-0056 1
WIRE-LEAD,BATTERY(+) 26011B 26011-0070 1
BATTERY,YTX9-BS,12V 8AH 26012 26012-1326 1
HARNESS,MAIN 26031 26031-0377 1
RELAY-ASSY,SIGNAL LAMP 27002 27002-0006 1
RELAY-ASSY 27002A 27002-0007 1
HORN 27003 27003-0030 1
LABEL,FUSE BOX 56030 56030-0091 1
LABEL,FUSE BOX 56030A 56030-0092 1
CLAMP,L=60 92037 92037-1069 5
CLAMP,HOSE 92037A 92037-1827 1
BAND,L=202 92072 92072-1195 2
BAND 92072A 92072-1414 1
BOLT,SOCKET,6X10 92153 92153-0410 1
DAMPER,RELAY BOX 92161 92161-0203 1
DAMPER,SIGNAL RELAY 92161A 92161-0283 1
CLAMP 92171 92171-0462 1
CLAMP,HARNESS 92171A 92171-0465 2
