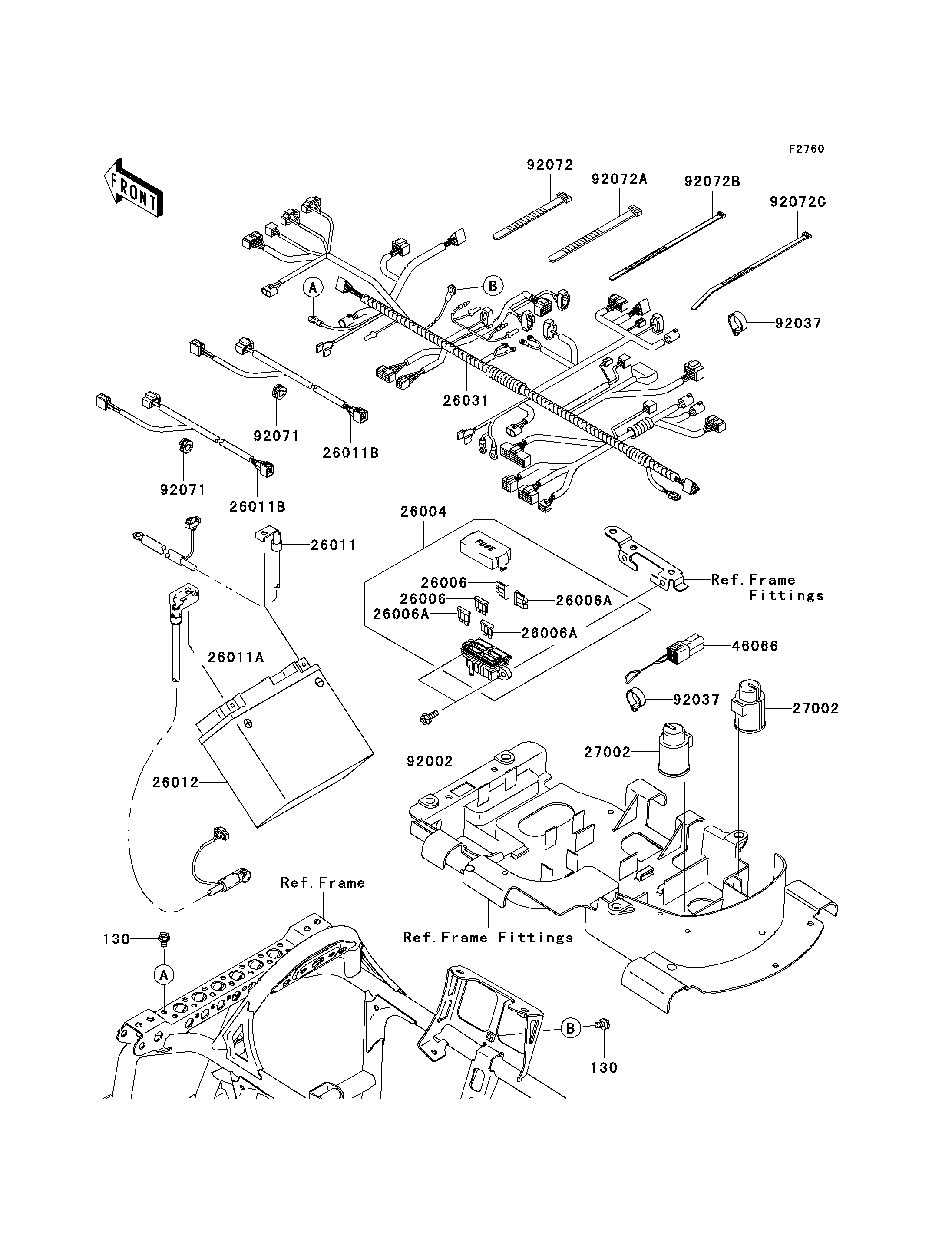

2006 Brute Force 650 4x4i - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130
26004
26006
26006
26006A
26006A
26006A
26011
26011A
26011B
26011B
26012
26031
27002
27002
46066
92002
92037
92037
92071
92071
92072
92072A
92072B
92072C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BB0610 2
FUSE-ASSY 26004 26004-0011 1
FUSE,30A 26006 26006-0004 2
FUSE,10A 26006A 26006-0005 3
WIRE-LEAD,BATTERY(-) 26011 26011-0137 1
WIRE-LEAD,BATTERY(+) 26011A 26011-0138 1
WIRE-LEAD,HEAD LAMP 26011B 26011-0141 2
BATTERY,MF,KMX14-BS,12V 12AH 26012 26012-1414 1
HARNESS,MAIN 26031 26031-0441 1
RELAY-ASSY 27002 27002-1095 2
CONNECTOR-ASSY,RESET 46066 46066-0001 1
BOLT,6X16 92002 92002-1571 2
CLAMP,HOSE 92037 92037-1827 10
GROMMET 92071 92071-1128 2
BAND,L=123 92072 92072-030 3
BAND,L=149 92072A 92072-031 1
BAND,L=188 92072B 92072-1239 4
BAND,L=292.1 92072C 92072-3509 1
