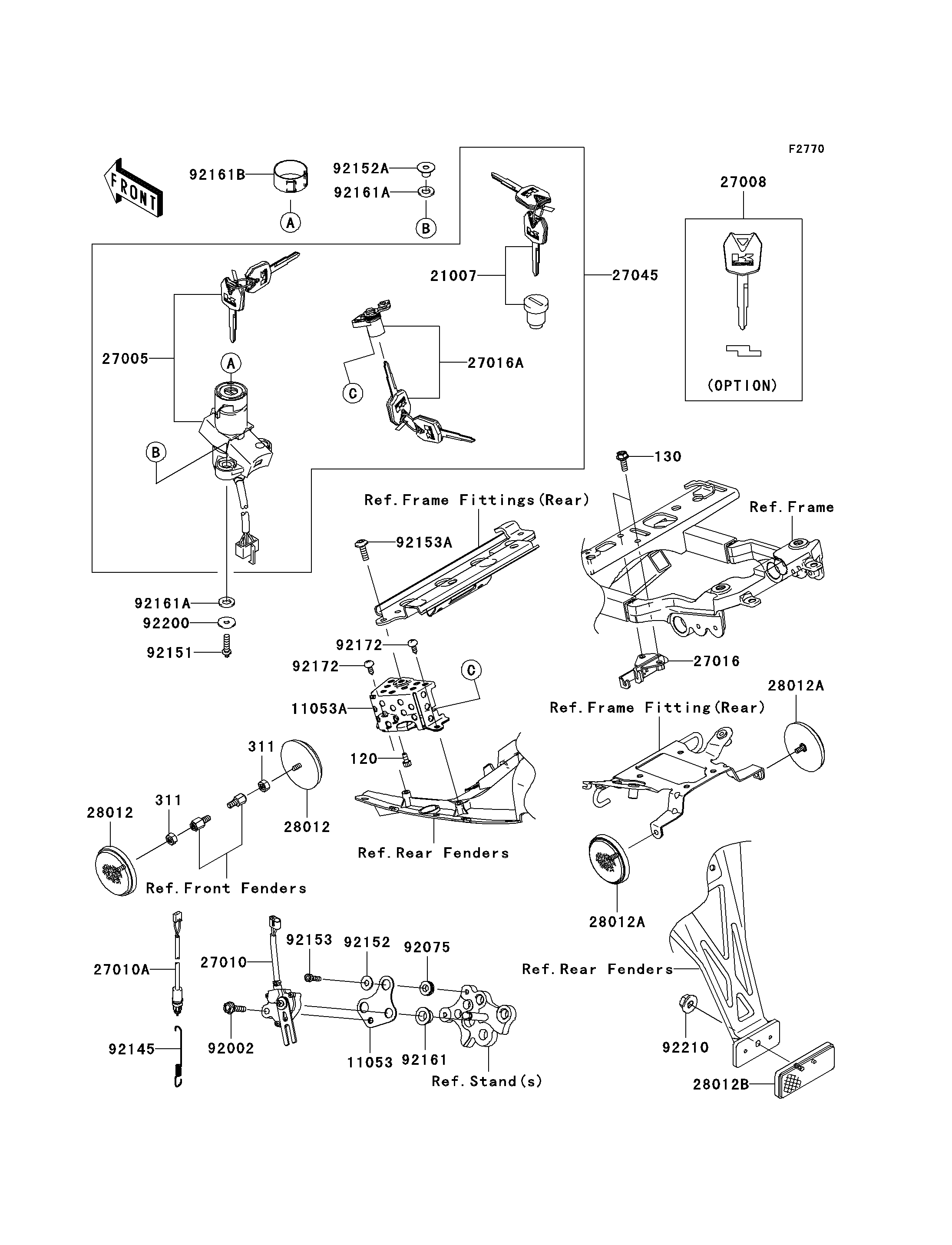

2006 Ninja® ZX™-6RR - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
120
130
311
311
11053
11053A
21007
27005
27008
27010
27010A
27016
27016A
27045
28012
28012
28012A
28012A
28012B
92002
92075
92145
92151
92152
92152A
92153
92153A
92161
92161A
92161A
92161B
92172
92172
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X12 120 120S0512 2
BOLT-FLANGED,6X16 130 130L0616 2
NUT-HEX 311 311C0500 2
BRACKET,SIDE STAND SWITCH 11053 11053-0056 1
BRACKET,SEAT LOCK 11053A 11053-1400 1
ROTOR,LOCK,TANK CAP 21007 21007-5057 1
SWITCH-ASSY-IGNITION 27005 27005-5135 1
KEY-LOCK,BLANK 27008 27008-0030 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-1455 1
SWITCH,REAR BRAKE 27010A 27010-1479 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1115 1
LOCK-ASSY,SEAT 27016A 27016-5309 1
SWITCH-ASSY 27045 27045-5304 1
REFLECTOR-REFLEX,FR,SIDE 28012 28012-0001 2
REFLECTOR-REFLEX 28012A 28012-0002 2
REFLECTOR-REFLEX 28012B 28012-1077 1
BOLT,FLANGED,6X25 92002 92002-1582 1
DAMPER 92075 92075-161 2
SPRING,REAR BRAKE SWITCH 92145 92145-0251 1
BOLT,TORX,6X22 92151 92151-1946 2
COLLAR 92152 92152-0017 2
COLLAR 92152A 92152-0352 2
BOLT,SOCKET,5X18 92153 92153-0414 2
BOLT,6X18 92153A 92153-0816 1
DAMPER 92161 92161-0016 1
DAMPER,IGNITION SWITCH 92161A 92161-0240 4
DAMPER,IGINITION SWITCH 92161B 92161-0257 1
SCREW,TAPPING,5X10 92172 92172-1061 2
WASHER,6X20X1.6 92200 92200-0212 2
NUT,FLANGED,5MM 92210 92210-0007 1
