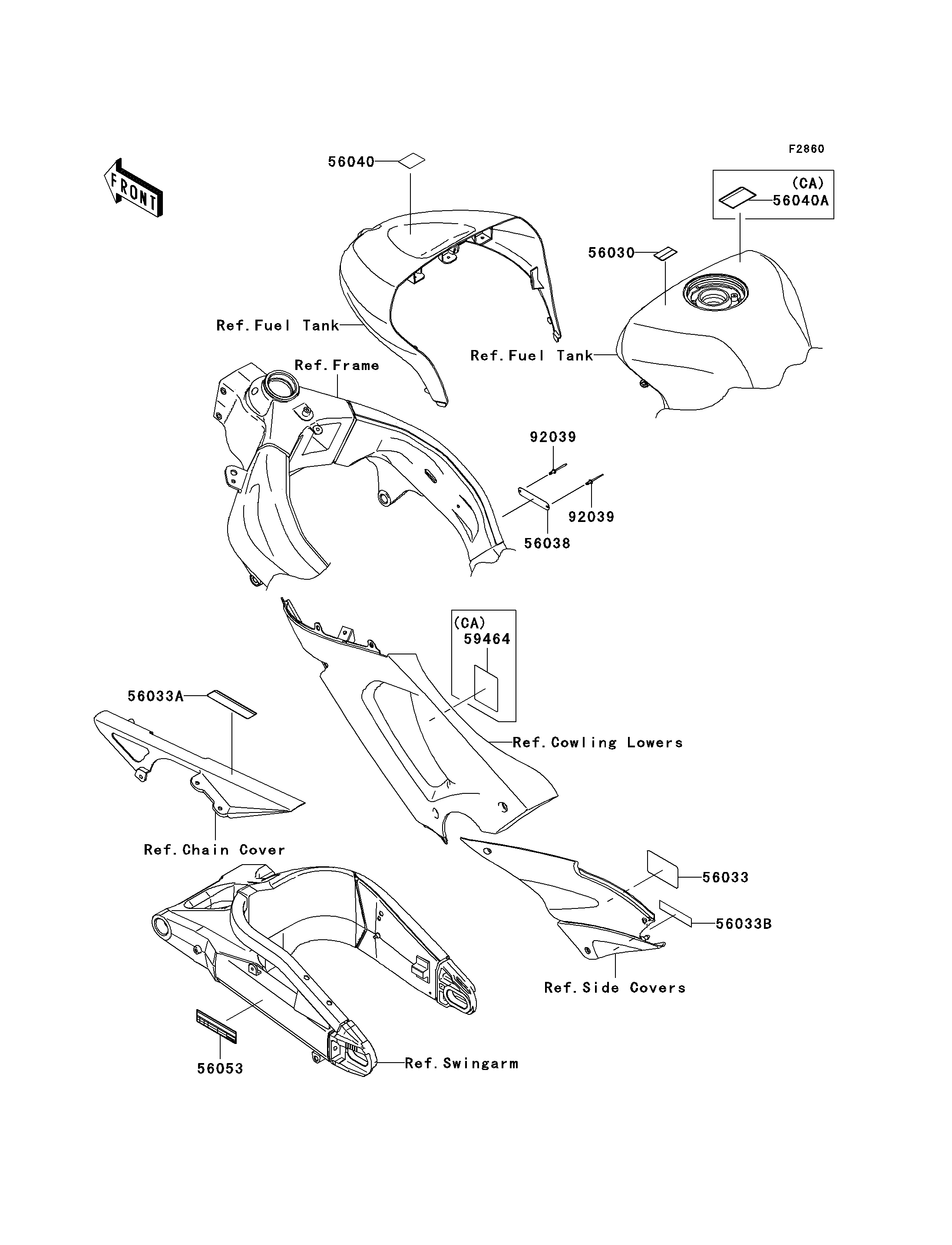

56030
56033
56033A
56033B
56038
56040
56053
92039
92039
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,GASOLINE 56030 56030-1177 1
LABEL-MANUAL,DAILY SAFETY 56033 56033-0083 1
LABEL-MANUAL,CHAIN 56033A 56033-0087 1
LABEL-MANUAL,OIL&OIL FILTER 56033B 56033-1306 1
LABEL-BRAND,KAWASAKI 56038 56038-1054 1
LABEL-WARNING,BREAK IN CAUTION 56040 56040-1007 1
LABEL-SPECIFICATION,TIRE&LOAD 56053 56053-0108 1
RIVET 92039 92039-1251 2
LABEL-WARNING,EVAPO 56040A 56040-1121 1 CA
LABEL-CERTIFICATION,EVAPO ROUT 59464 59464-0261 1 CA
