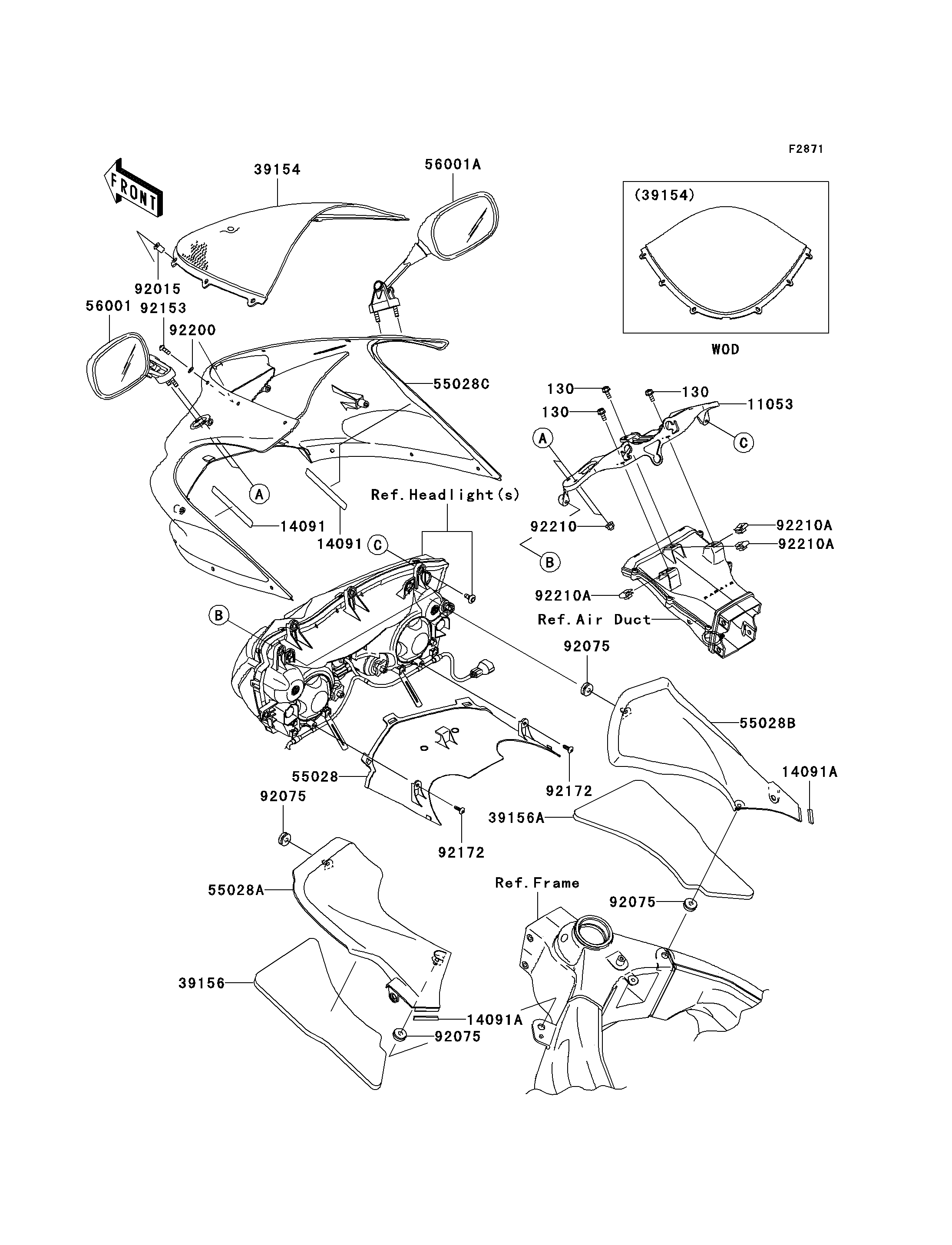

2006 Ninja® ZX™-6RR - Cowling

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
11053
14091
14091
14091A
14091A
39154
39156
39156A
55028
55028A
55028B
55028C
56001
56001A
92015
92075
92075
92075
92075
92153
92172
92172
92200
92210
92210A
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130L0616 3
BRACKET,MIRROR&METER 11053 11053-1289 1
COVER,UPP COWLING 14091 14091-0435 2
COVER 14091A 14091-0456 2
WINDSHIELD 39154 39154-0008 1
PAD,INNER COWLING,LH 39156 39156-0077 1
PAD,INNER COWLING,RH 39156A 39156-0078 1
COWLING,FR,CNT 55028 55028-0032 1
COWLING,INNER,LH 55028A 55028-0035 1
COWLING,INNER,RH 55028B 55028-0036 1
COWLING,UPP,L.GREEN 55028C 55028-0075-777 1
MIRROR-ASSY,LH 56001 56001-0039 1
MIRROR-ASSY,RH 56001A 56001-0040 1
NUT,WELL,5MM 92015 92015-1757 6
DAMPER 92075 92075-1067 4
BOLT,SOCKET,5X16 92153 92153-1244 6
SCREW,TAPPING,5X16 92172 92172-0175 2
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 6
NUT,CAP,6MM 92210 92210-0003 4
NUT 92210A 92210-0130 3
