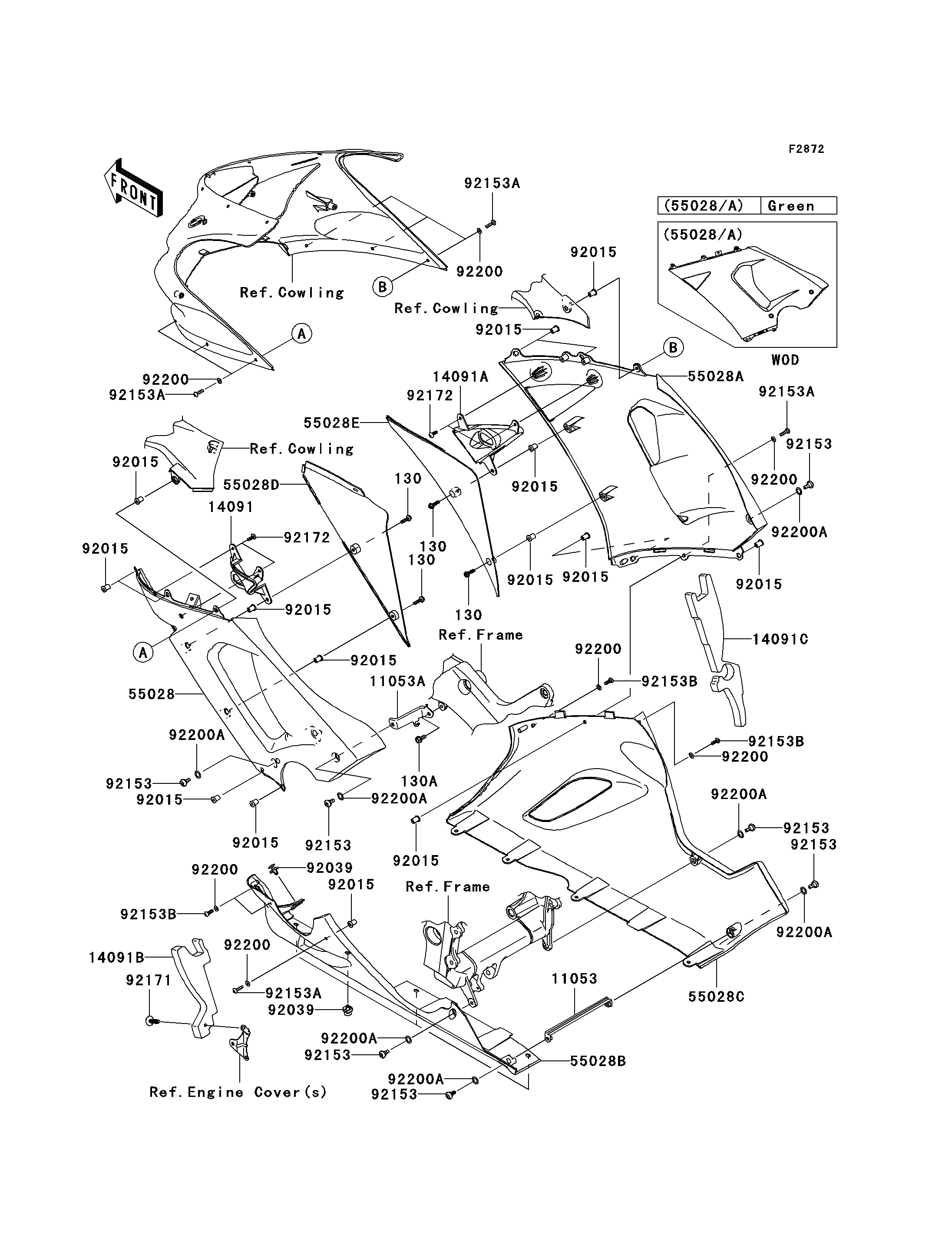

2006 Ninja® ZX™-6RR - Cowling Lowers

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130
130A
11053
11053A
14091
14091A
14091B
14091C
55028
55028A
55028B
55028C
55028D
55028E
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92039
92039
92153
92153
92153
92153
92153
92153
92153
92153A
92153A
92153A
92153A
92153B
92153B
92153B
92171
92172
92172
92200
92200
92200
92200
92200
92200
92200
92200A
92200A
92200A
92200A
92200A
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X20 130 130L0520 4
BOLT-FLANGED,6X16 130A 130L0616 1
BRACKET,LWR COWLING 11053 11053-0402 1
BRACKET,COWLING,LH 11053A 11053-1393 1
COVER,SIGNAL LAMP,LH,L.GREEN 14091 14091-0353-777 1
COVER,SIGNAL LAMP,RH,L.GREEN 14091A 14091-0354-777 1
COVER,HEAT GUARD,LH 14091B 14091-0418 1
COVER,HEAT GUARD,RH 14091C 14091-0419 1
COWLING,CNT,LH,L.GREEN 55028 55028-0028-777 1
COWLING,CNT,RH,L.GREEN 55028A 55028-0029-777 1
COWLING,LWR,LH,L.GREEN 55028B 55028-0030-777 1
COWLING,LWR,RH,L.GREEN 55028C 55028-0031-777 1
COWLING,FR,LH 55028D 55028-0033 1
COWLING,FR,RH 55028E 55028-0034 1
NUT,WELL,5MM 92015 92015-1757 16
RIVET 92039 92039-0014 5
BOLT,SOCKET,6MM 92153 92153-0489 7
BOLT,SOCKET,5X20 92153A 92153-0873 8
BOLT,SOCKET,5X16 92153B 92153-1244 4
CLAMP 92171 92171-1280 1
SCREW,TAPPING,5X16 92172 92172-0175 4
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 12
WASHER,10.4X15.9X0.5 92200A 92200-0157 7
