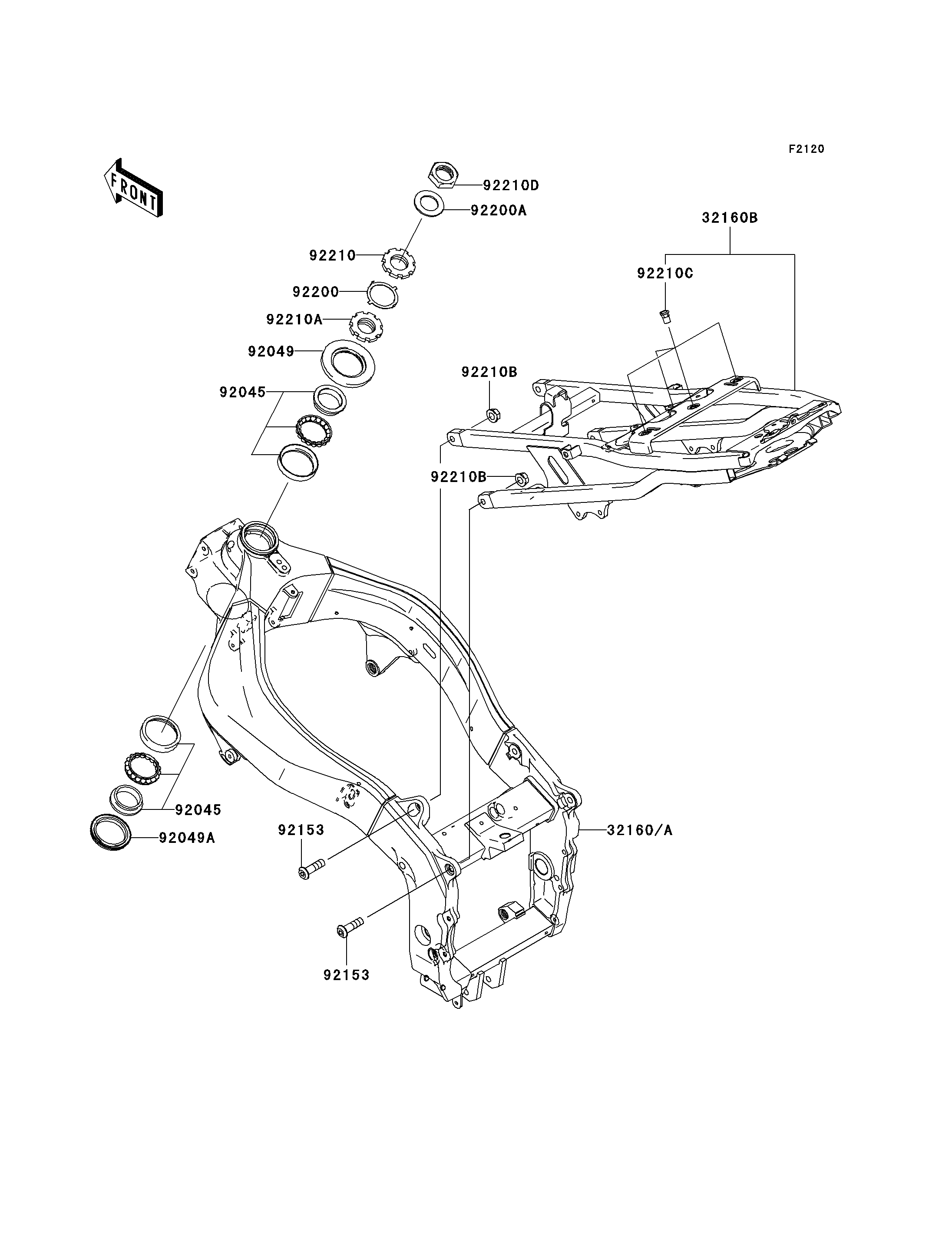

Parts Diagrams |
32160
32160B
92045
92045
92049
92049A
92153
92153
92200
92200A
92210
92210A
92210B
92210B
92210C
92210D
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FRAME-COMP,AL,FR,P.SILVER | 32160 | 32160-0035-458 | 1 | ||
| FRAME-COMP,AL,RR,P.SILVER | 32160B | 32160-1819-458 | 1 | ||
| BEARING-BALL,SF07A17PX1V1 | 92045 | 92045-1384 | 2 | ||
| SEAL-OIL,XMH 43 75 6.4J | 92049 | 92049-1382 | 1 | ||
| SEAL-OIL,XMHE 43 55 4J | 92049A | 92049-1383 | 1 | ||
| BOLT,SOCKET,10X35 | 92153 | 92153-1164 | 4 | ||
| WASHER | 92200 | 92200-0036 | 1 | ||
| WASHER,25.5X42X2.3 | 92200A | 92200-1084 | 1 | ||
| NUT,STEERING STEM 35MM | 92210 | 92210-0062 | 1 | ||
| NUT,STEERING STEM,35MM | 92210A | 92210-0077 | 1 | ||
| NUT,LOCK,FLANGED,10MM | 92210B | 92210-1080 | 4 | ||
| NUT,POP,6MM,L=15 | 92210C | 92210-1397 | 4 | ||
| NUT,25MM | 92210D | 92210-1412 | 1 |
