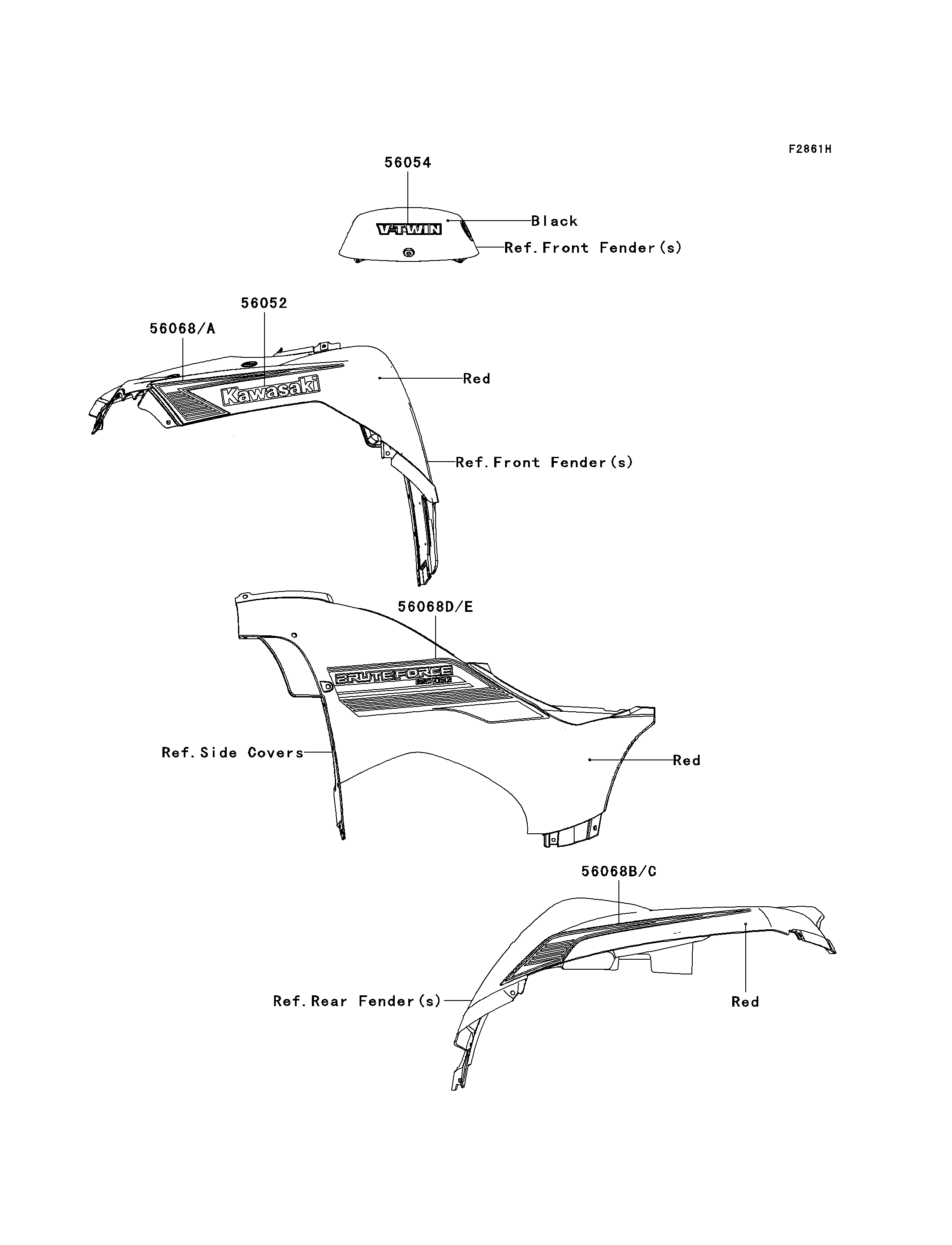

2009 Brute Force® 650 4x4i - Decals(Red)(F9F)

56052
56054
56068
56068A
56068B
56068C
56068D
56068E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SIDE COVER,KAWASAKI 56052 56052-0947 2
MARK,FR FENDER,V-TWIN 56054 56054-0230 1
PATTERN,FR FENDER,LH 56068 56068-1140 1
PATTERN,FR FENDER,RH 56068A 56068-1141 1
PATTERN,RR FENDER,LH 56068B 56068-1142 1
PATTERN,RR FENDER,RH 56068C 56068-1143 1
PATTERN,SIDE COVER,LH 56068D 56068-1266 1
PATTERN,SIDE COVER,RH 56068E 56068-1267 1
