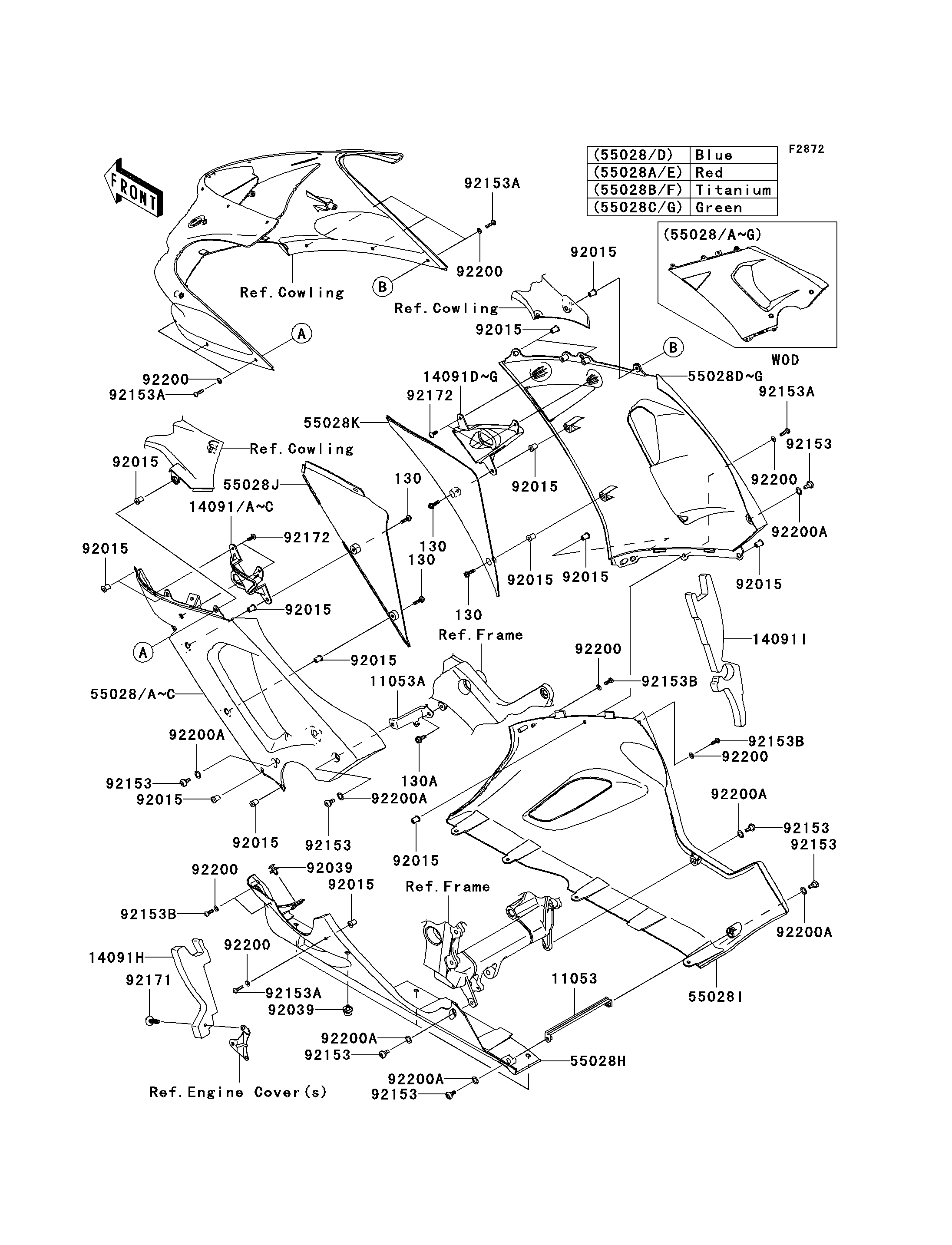

Parts Diagrams |
130
130
130
130
130A
11053
11053A
14091
14091A
14091B
14091C
14091D
14091E
14091F
14091G
14091H
14091I
55028
55028A
55028B
55028C
55028D
55028E
55028F
55028G
55028H
55028I
55028J
55028K
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92039
92039
92153
92153
92153
92153
92153
92153
92153
92153A
92153A
92153A
92153A
92153B
92153B
92153B
92171
92172
92172
92200
92200
92200
92200
92200
92200
92200
92200A
92200A
92200A
92200A
92200A
92200A
92200A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,M5X20 | 130 | 130L0520 | 4 | ||
| BOLT-FLANGED,M6X16 | 130A | 130L0616 | 1 | ||
| BRACKET,LWR COWLING | 11053 | 11053-0402 | 1 | ||
| BRACKET,COWLING,LH | 11053A | 11053-1393 | 1 | ||
| COVER,SIGNAL LAMP,LH,C.P.BLUE | 14091 | 14091-0353-723 | 1 | ||
| COVER,SIGNAL LAMP,LH,P.M.RED | 14091A | 14091-0353-724 | 1 | ||
| COVER,SIGNAL LAMP,LH,TITANIUM | 14091B | 14091-0353-725 | 1 | ||
| COVER,SIGNAL LAMP,LH,L.GREEN | 14091C | 14091-0353-777 | 1 | ||
| COVER,SIGNAL LAMP,RH,C.P.BLUE | 14091D | 14091-0354-723 | 1 | ||
| COVER,SIGNAL LAMP,RH,P.M.RED | 14091E | 14091-0354-724 | 1 | ||
| COVER,SIGNAL LAMP,RH,TITANIUM | 14091F | 14091-0354-725 | 1 | ||
| COVER,SIGNAL LAMP,RH,L.GREEN | 14091G | 14091-0354-777 | 1 | ||
| COVER,HEAT GUARD,LH | 14091H | 14091-0418 | 1 | ||
| COVER,HEAT GUARD,RH | 14091I | 14091-0419 | 1 | ||
| COWLING,CNT,LH,C.P.BLUE | 55028 | 55028-0028-723 | 1 | ||
| COWLING,CNT,LH,P.M.RED | 55028A | 55028-0028-724 | 1 | ||
| COWLING,CNT,LH,M.F.R.TITANIUM | 55028B | 55028-0028-725 | 1 | ||
| COWLING,CNT,LH,L.GREEN | 55028C | 55028-0028-777 | 1 | ||
| COWLING,CNT,RH,C.P.BLUE | 55028D | 55028-0029-723 | 1 | ||
| COWLING,CNT,RH,P.M.RED | 55028E | 55028-0029-724 | 1 | ||
| COWLING,CNT,RH,M.F.R.TITANIUM | 55028F | 55028-0029-725 | 1 | ||
| COWLING,CNT,RH,L.GREEN | 55028G | 55028-0029-777 | 1 | ||
| COWLING,LWR,LH,F.S.BLACK | 55028H | 55028-0030-8J | 1 | ||
| COWLING,LWR,RH,F.S.BLACK | 55028I | 55028-0031-8J | 1 | ||
| COWLING,FR,LH | 55028J | 55028-0033 | 1 | ||
| COWLING,FR,RH | 55028K | 55028-0034 | 1 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 16 | ||
| RIVET | 92039 | 92039-0014 | 5 | ||
| BOLT,SOCKET,6MM | 92153 | 92153-0489 | 7 | ||
| BOLT,SOCKET,5X20 | 92153A | 92153-0873 | 8 | ||
| BOLT,SOCKET,5X16 | 92153B | 92153-1244 | 4 | ||
| CLAMP | 92171 | 92171-1280 | 1 | ||
| SCREW,TAPPING,5X16 | 92172 | 92172-0175 | 4 | ||
| WASHER,NYLONE,5.3X11.5X0.5 | 92200 | 92200-0006 | 12 | ||
| WASHER,10.4X15.9X0.5 | 92200A | 92200-0157 | 7 |
| BOLT-FLANGED,M5X20 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,M6X16 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,LWR COWLING | |
| REF # | 11053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,COWLING,LH | |
| REF # | 11053A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIGNAL LAMP,LH,C.P.BLUE | |
| REF # | 14091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIGNAL LAMP,LH,P.M.RED | |
| REF # | 14091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIGNAL LAMP,LH,TITANIUM | |
| REF # | 14091B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIGNAL LAMP,LH,L.GREEN | |
| REF # | 14091C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIGNAL LAMP,RH,C.P.BLUE | |
| REF # | 14091D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIGNAL LAMP,RH,P.M.RED | |
| REF # | 14091E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIGNAL LAMP,RH,TITANIUM | |
| REF # | 14091F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIGNAL LAMP,RH,L.GREEN | |
| REF # | 14091G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,HEAT GUARD,LH | |
| REF # | 14091H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,HEAT GUARD,RH | |
| REF # | 14091I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,CNT,LH,C.P.BLUE | |
| REF # | 55028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,CNT,LH,P.M.RED | |
| REF # | 55028A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,CNT,LH,M.F.R.TITANIUM | |
| REF # | 55028B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,CNT,LH,L.GREEN | |
| REF # | 55028C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,CNT,RH,C.P.BLUE | |
| REF # | 55028D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,CNT,RH,P.M.RED | |
| REF # | 55028E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,CNT,RH,M.F.R.TITANIUM | |
| REF # | 55028F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,CNT,RH,L.GREEN | |
| REF # | 55028G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,LH,F.S.BLACK | |
| REF # | 55028H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,RH,F.S.BLACK | |
| REF # | 55028I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,FR,LH | |
| REF # | 55028J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,FR,RH | |
| REF # | 55028K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,WELL,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6MM | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X20 | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X16 | |
| REF # | 92153B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,5X16 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,NYLONE,5.3X11.5X0.5 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.4X15.9X0.5 | |
| REF # | 92200A |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
