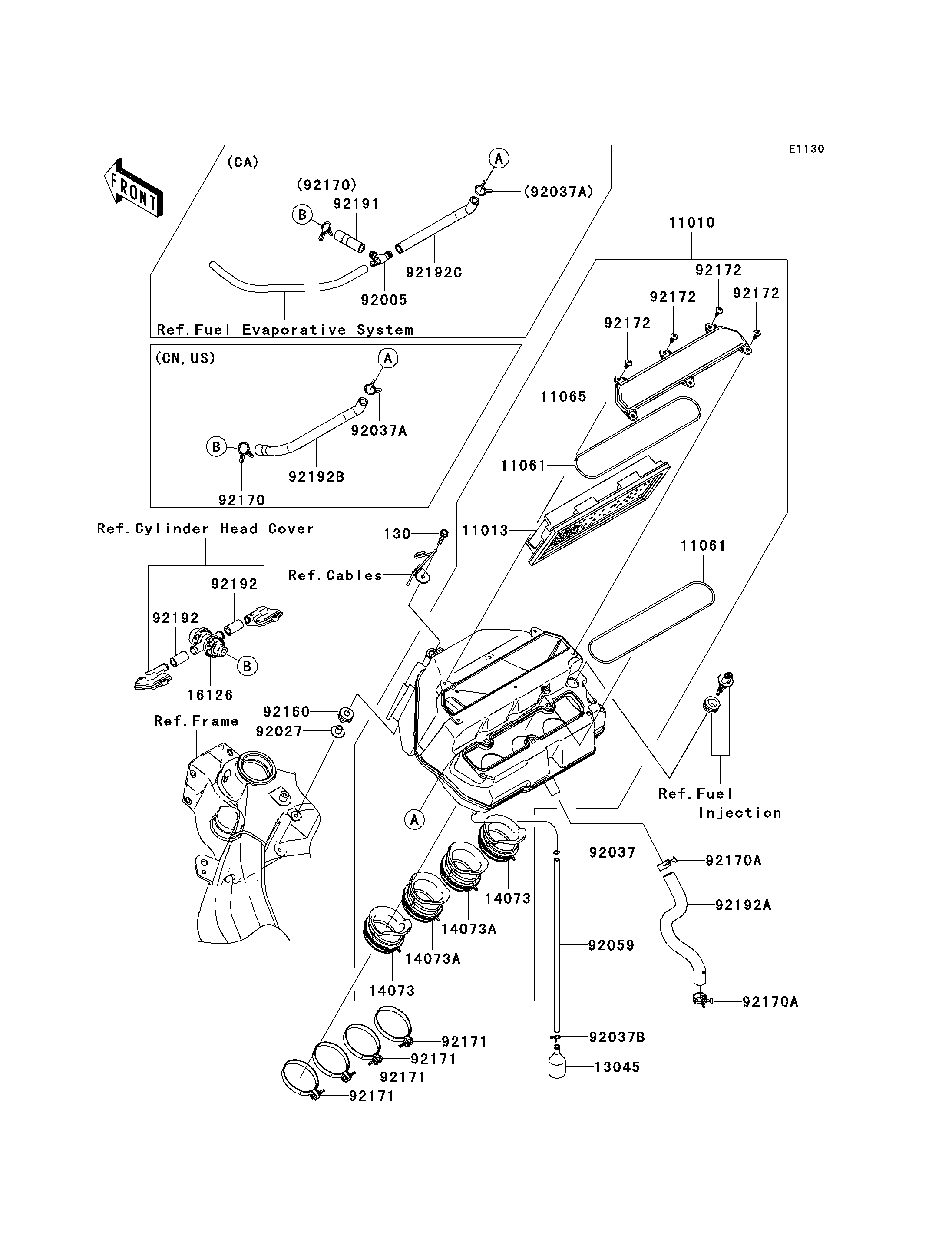

2006 Ninja® ZX™-6R - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
130
11010
11013
11061
11061
11065
13045
14073
14073
14073A
14073A
16126
92027
92037
92037A
92037B
92059
92160
92170
92170A
92170A
92171
92171
92171
92171
92172
92172
92172
92172
92192
92192
92192A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X30 130 130L0630 1
FILTER-ASSY-AIR 11010 11010-0061 1
ELEMENT-AIR FILTER 11013 11013-0010 1
GASKET 11061 11061-0127 2
CAP,AIR FILTER CASE 11065 11065-0082 1
RECEIVER-OIL 13045 13045-1057 1
DUCT 14073 14073-0077 2
DUCT 14073A 14073-0081 2
VALVE,AIR SWITCH 16126 16126-1433 1
COLLAR,L=13.1 92027 92027-251 1
CLAMP,TUBE 92037 92037-010 1
CLAMP 92037A 92037-1593 1
CLAMP 92037B 92037-1712 1
TUBE,6X9X360 92059 92059-103 1
DAMPER 92160 92160-1162 1
CLAMP 92170 92170-1017 1
CLAMP 92170A 92170-1060 2
CLAMP,FUNNEL TIGHTEN 92171 92171-0436 4
SCREW,5X16 92172 92172-0177 6
TUBE,10X16X29 92192 92192-0009 2
TUBE,BLOW-BY 92192A 92192-0153 1
FITTING 92005 92005-1402 1 CA
TUBE,FITTING-AIR SWITCH 92191 92191-1813 1 CA
TUBE,A/C-ASV 92192B 92192-0154 1 CNUS
TUBE,FITTING-A/C 92192C 92192-0168 1 CA
