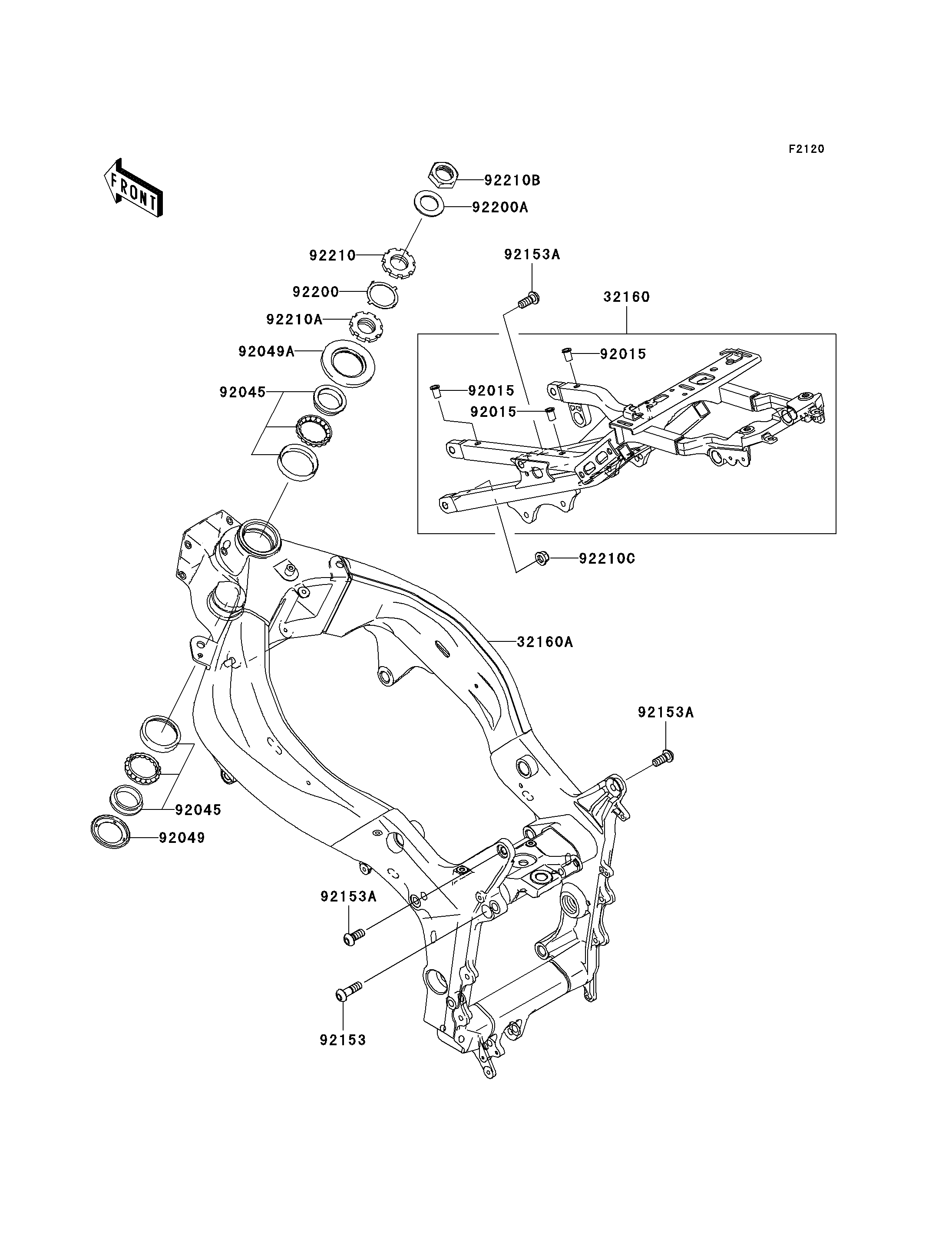

Parts Diagrams |
32160
32160A
92015
92015
92015
92045
92045
92049
92049A
92153
92153A
92153A
92153A
92200
92200A
92210
92210A
92210B
92210C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FRAME-COMP,RR,F.S.BLACK | 32160 | 32160-0085-8F | 1 | ||
| FRAME-COMP,FR,F.S.BLACK | 32160A | 32160-0113-8F | 1 | ||
| NUT,POP,6MM,L=15 | 92015 | 92015-1791 | 3 | ||
| BEARING-BALL,SF07A17PX1V1 | 92045 | 92045-1384 | 2 | ||
| SEAL-OIL,DS35X55X4 | 92049 | 92049-0022 | 1 | ||
| SEAL-OIL,XMH 43 75 6.4J | 92049A | 92049-1382 | 1 | ||
| BOLT,SOCKET,10X35 | 92153 | 92153-0813 | 1 | ||
| BOLT,SOCKET,10X25 | 92153A | 92153-0945 | 3 | ||
| WASHER | 92200 | 92200-0036 | 1 | ||
| WASHER,28.5X42X1.6 | 92200A | 92200-0209 | 1 | ||
| NUT,35MM | 92210 | 92210-0095 | 1 | ||
| NUT,35MM | 92210A | 92210-0096 | 1 | ||
| NUT,28MM | 92210B | 92210-0209 | 1 | ||
| NUT,LOCK,FLANGED,10MM | 92210C | 92210-1080 | 1 |
