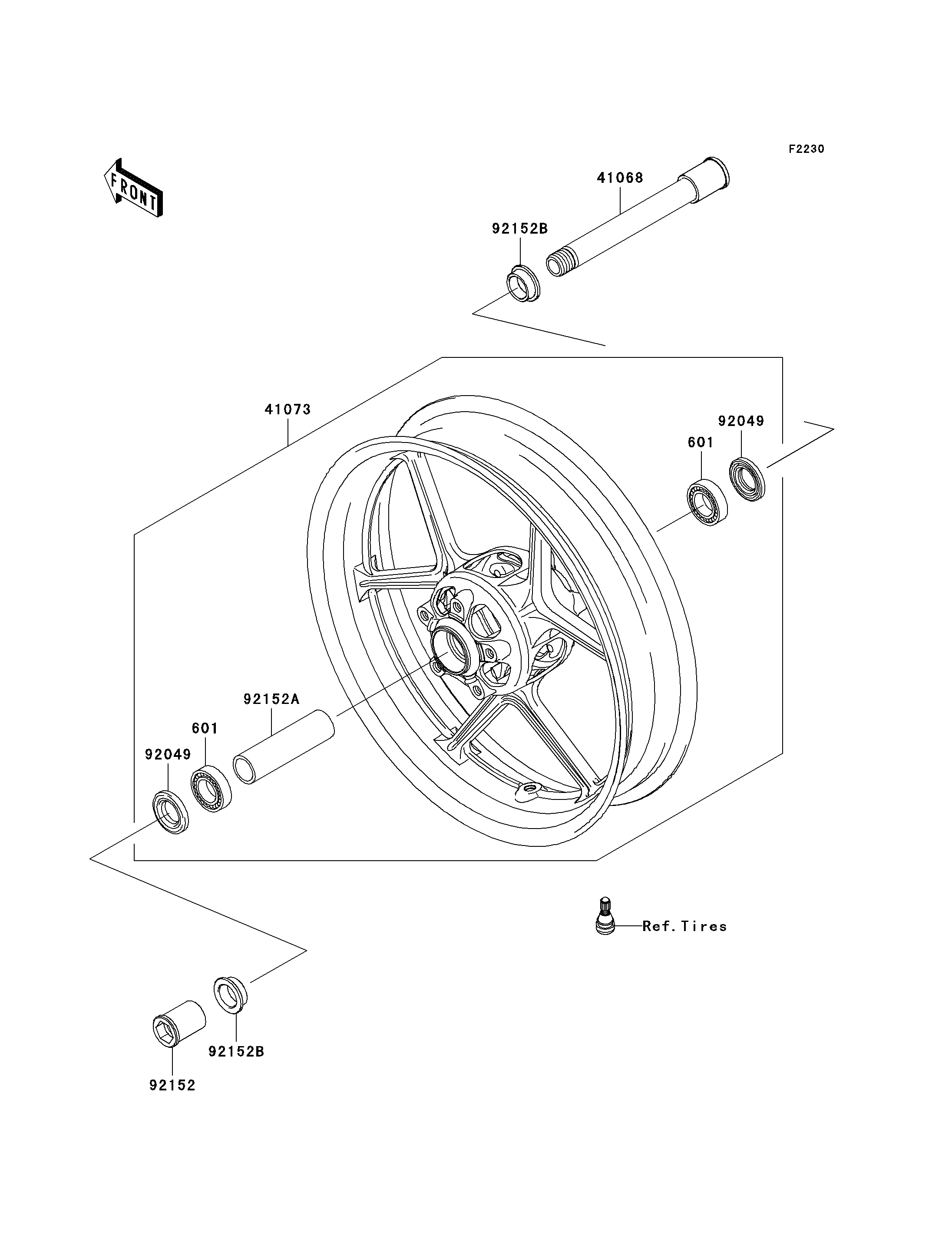

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BEARING-BALL,#6005UU 601 601B6005UU 2
AXLE,FR 41068 41068-0034 1
WHEEL-ASSY,FR,GRAYSTONE 41073 41073-0039-2A 1
SEAL-OIL,BJN 32 47 5 92049 92049-1377 2
COLLAR,FR AXLE,LH,L=44.5 92152 92152-0240 1
COLLAR,FR HUB,L=115 92152A 92152-0242 1
COLLAR,FR AXLE,L=13 92152B 92152-0289 2
