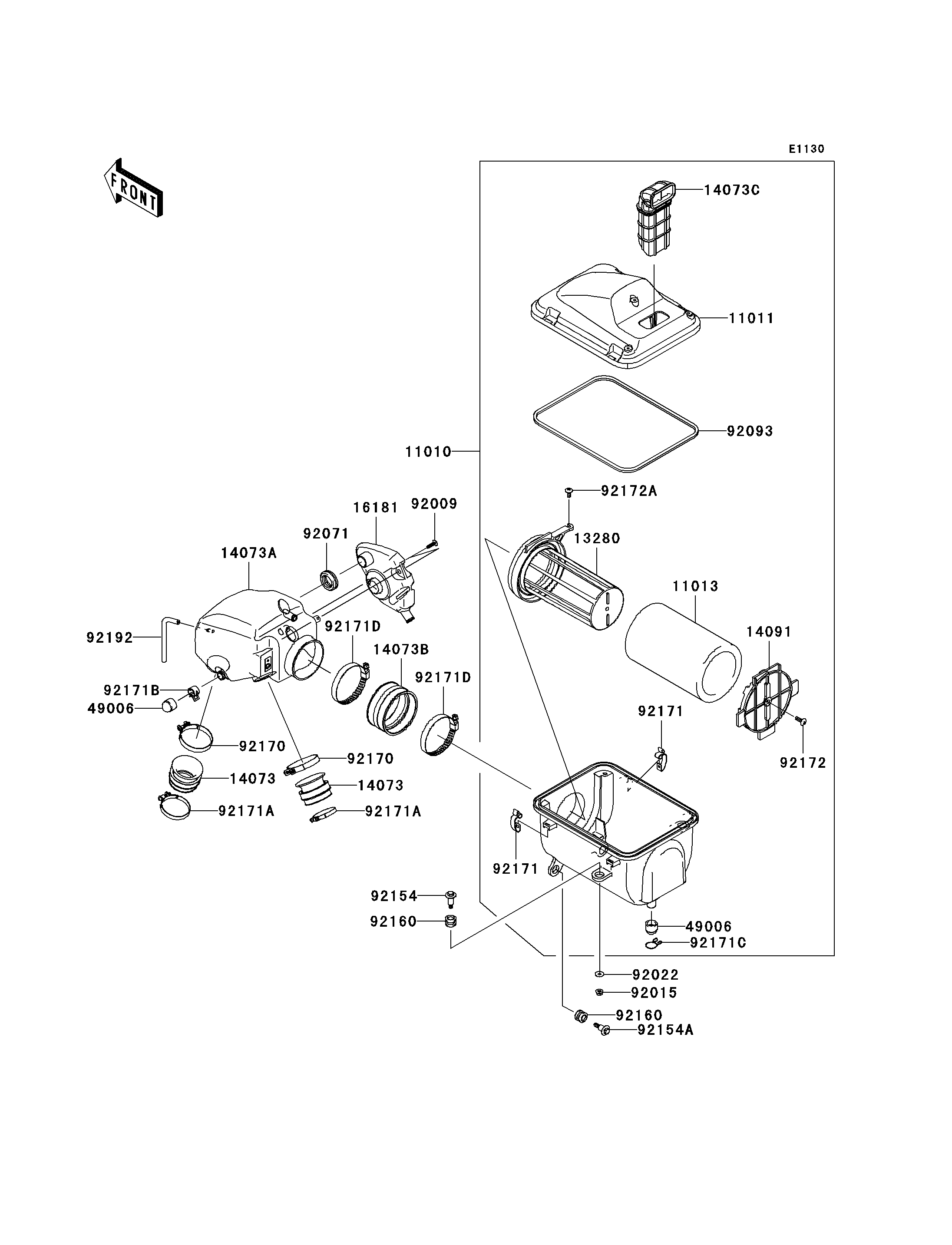

2009 Teryx® 750 FI 4x4 - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11011
11013
13280
14073
14073
14073A
14073B
14073C
14091
16181
49006
49006
92009
92015
92022
92071
92093
92154
92154A
92160
92160
92170
92170
92171
92171
92171A
92171A
92171B
92171C
92171D
92171D
92172
92172A
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-0184 1
CASE-AIR FILTER,UPP 11011 11011-0140 1
ELEMENT-AIR FILTER 11013 11013-0018 1
HOLDER 13280 13280-0267 1
DUCT 14073 14073-0160 2
DUCT,A/C-THROBO 14073A 14073-0257 1
DUCT,JOINT,A/C SIDE 14073B 14073-0258 1
DUCT,AIR INLET 14073C 14073-0261 1
COVER 14091 14091-0935 1
TANK-RESONATOR 16181 16181-0015 1
BOOT,DRAIN 49006 49006-3718 2
SCREW,TAPPING,5X20 92009 92009-1993 2
NUT,FLANGED,6MM 92015 92015-1367 2
WASHER,6.5X16X1.0 92022 92022-1093 2
GROMMET,AIR FILTER 92071 92071-1013 1
SEAL 92093 92093-0083 1
BOLT,FLANGED,6X28.7 92154 92154-0028 2
BOLT,FLANGED,6X27.5 92154A 92154-0029 2
DAMPER 92160 92160-1594 4
CLAMP 92170 92170-1448 2
CLAMP 92171 92171-0225 4
CLAMP 92171A 92171-0722 2
CLAMP 92171B 92171-1277 1
CLAMP,BOOT 92171C 92171-3711 1
CLAMP 92171D 92171-3716 2
SCREW,6X18 92172 92172-0130 1
SCREW,6X14 92172A 92172-0131 1
TUBE,4X8X127 92192 92192-0763 1
