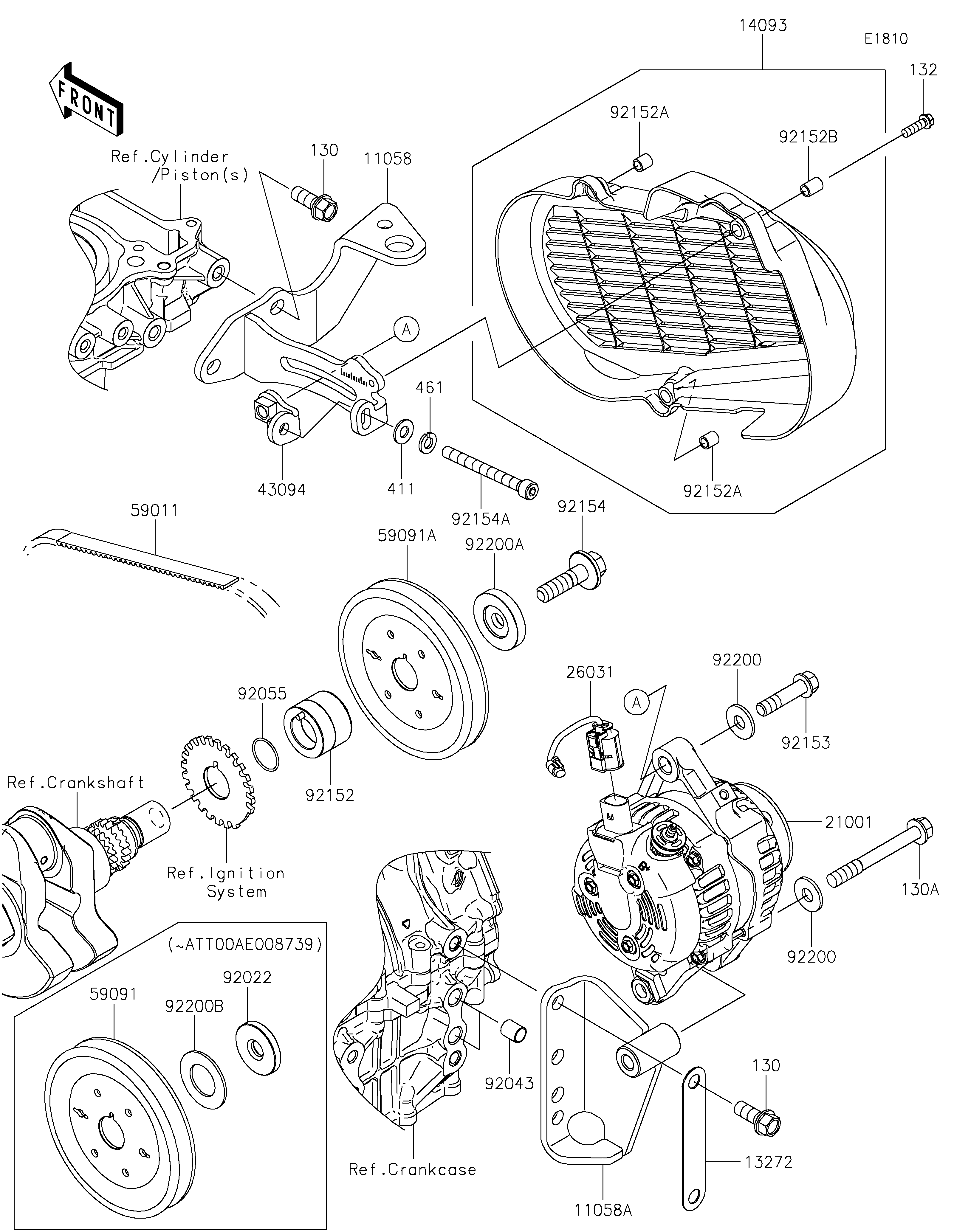

2024 MULE PRO-FX™ 1000 HD Edition - Generator

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
13272
14093
21001
26031
43094
59011
59091
59091A
92022
92043
92055
92152
92152A
92152A
92152B
92153
92154
92154A
92200
92200
92200A
92200B
130
130
130A
132
411
461
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,GENERATOR UPPER 11058 11058-0328 1
BRACKET,GENERATOR LOWER 11058A 11058-0329 1
PLATE,GENERATOR LOWER 13272 13272-4113 1
COVER,GENERATOR 14093 14093-1393 1
GENERATOR 21001 21001-0687 1
HARNESS,GENERATOR 26031 26031-4001 1
ADJUSTER,GENERATOR 43094 43094-0014 1
BELT 59011 59011-0059 1
PULLEY 59091 59091-0018 1 ( - ATT00AE008739)
PULLEY 59091A 59091-0019 1 (ATT00AE008740 - )
WASHER,12X40X6 92022 92022-1904 1 ( - ATT00AE008739)
PIN,10.1X12X14 92043 92043-4009 2
RING-O,21.5X1.5 92055 92055-1293 1
COLLAR,PULLEY 92152 92152-2928 1
COLLAR 92152A 92152-2948 2
COLLAR 92152B 92152-2949 1
BOLT,FLANGED,10X42 92153 92153-1957 1
BOLT-FLANGED,12X43 92154 92154-7017 1
BOLT-SOCKET,8X80 92154A 92154-7077 1
WASHER,11X26X2.6 92200 92200-0352 2
WASHER 92200A 92200-2621 1 (ATT00AE008740 - )
WASHER 92200B 92200-2633 1 ( - ATT00AE008739)
BOLT-FLANGED 130 130CA1025 4
BOLT-FLANGED,10X85 130A 130CA1085 1
BOLT-FLANGED-SMALL,6X20 132 132BA0620 3
WASHER-PLAIN,8MM 411 411AA0800 1
WASHER-SPRING,8MM 461 461DA0800 1
