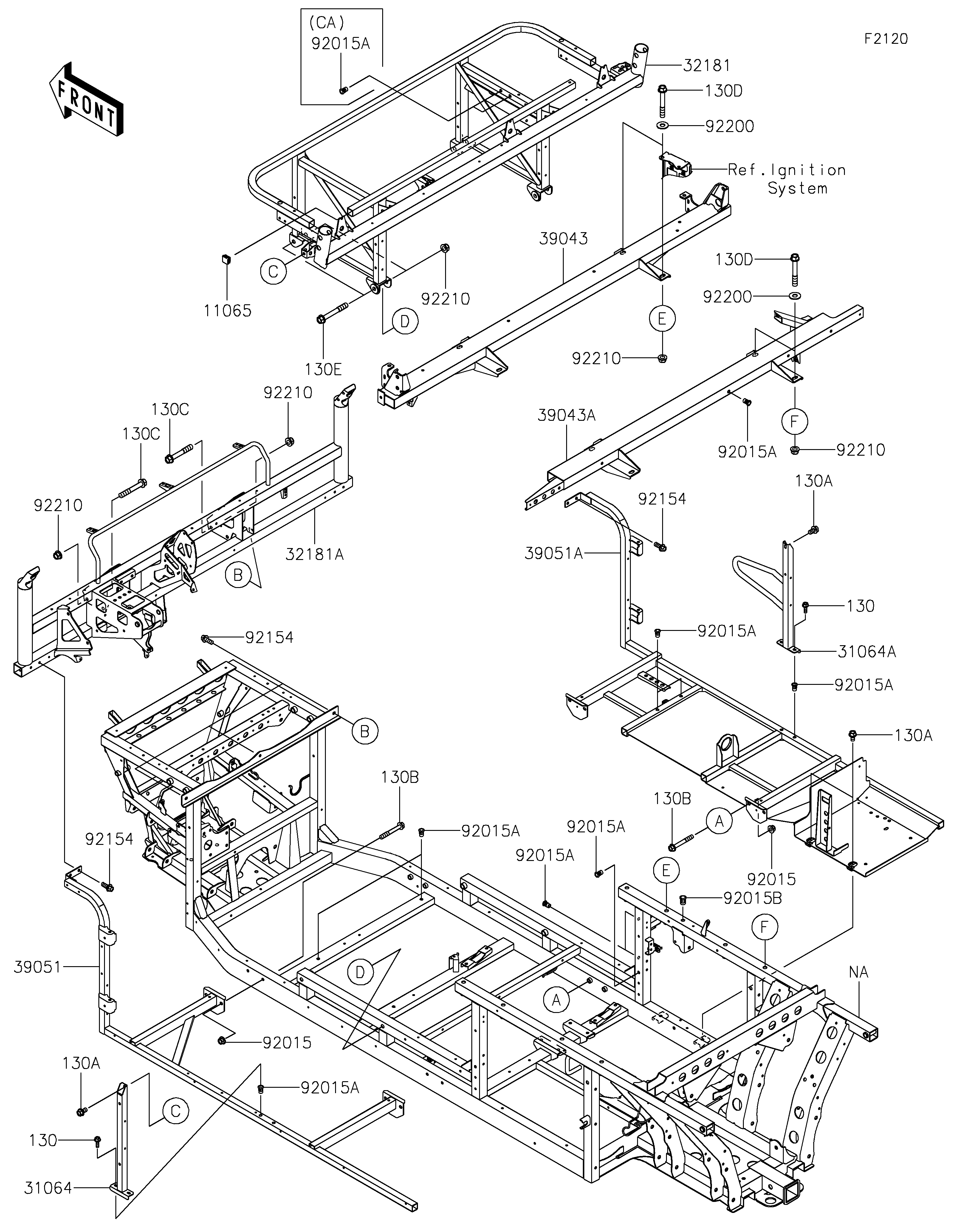

2024 MULE PRO-FX™ 1000 HD Edition - Frame(LRFNN-LSSNL)
11065
31064
31064A
32181
32181A
39043
39043A
39051
39051A
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015B
92154
92154
92154
92200
92200
92210
92210
92210
92210
92210
130
130
130A
130A
130A
130B
130B
130C
130C
130D
130D
130E
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11065 | 11065-0901 | 1 | ||
| PIPE-COMP,SEAT SIDE,LH | 31064 | 31064-0706 | 1 | ||
| PIPE-COMP,SEAT SIDE,RH | 31064A | 31064-0707 | 1 | ||
| FRAME-SUB-COMP,SEAT | 32181 | 32181-0047 | 1 | ||
| FRAME-SUB-COMP,DASH PANEL | 32181A | 32181-0048 | 1 | ||
| CROSSMEMBER-COMP,C-PILLAR | 39043 | 39043-0026 | 1 | ||
| CROSSMEMBER-COMP,RR CROSS | 39043A | 39043-0041 | 1 | ||
| FRAME-COMP-SIDE,LH | 39051 | 39051-0012 | 1 | ||
| FRAME-COMP-SIDE,RH | 39051A | 39051-0014 | 1 | ||
| NUT,8MM | 92015 | 92015-1432 | 8 | ||
| NUT,POP,6MM,L=15 | 92015A | 92015-1791 | 14 | CA 1 | |
| NUT,POP,8MM,L=16.5 | 92015B | 92015-1793 | 1 | ||
| BOLT,FLANGED,8X20 | 92154 | 92154-1226 | 7 | ||
| WASHER,10.5X25X1.6 | 92200 | 92200-1595 | 8 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-0276 | 16 | ||
| BOLT-FLANGED,6X18 | 130 | 130BA0618 | 4 | ||
| BOLT-FLANGED,8X14 | 130A | 130BA0814 | 4 | ||
| BOLT-FLANGED,8X60 | 130B | 130BA0860 | 8 | ||
| BOLT-FLANGED,10X65 | 130C | 130BA1065 | 4 | ||
| BOLT-FLANGED,10X70 | 130D | 130BA1070 | 8 | ||
| BOLT-FLANGED,10X75 | 130E | 130CA1075 | 4 | ||
| NUT,POP,6MM,L=15 | 92015A | 92015-1791 | 12 | CN,US 1 |
| CAP | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-COMP,SEAT SIDE,LH | |
| REF # | 31064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-COMP,SEAT SIDE,RH | |
| REF # | 31064A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME-SUB-COMP,SEAT | |
| REF # | 32181 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME-SUB-COMP,DASH PANEL | |
| REF # | 32181A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CROSSMEMBER-COMP,C-PILLAR | |
| REF # | 39043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CROSSMEMBER-COMP,RR CROSS | |
| REF # | 39043A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME-COMP-SIDE,LH | |
| REF # | 39051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME-COMP-SIDE,RH | |
| REF # | 39051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT,POP,6MM,L=15 | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 14 |
| DESTINATION | CA 1 |
| REMARKS | |
| NUT,POP,8MM,L=16.5 | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X20 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.5X25X1.6 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,10MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X18 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X14 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X60 | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X65 | |
| REF # | 130C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X70 | |
| REF # | 130D |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X75 | |
| REF # | 130E |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,POP,6MM,L=15 | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | CN,US 1 |
| REMARKS | |
