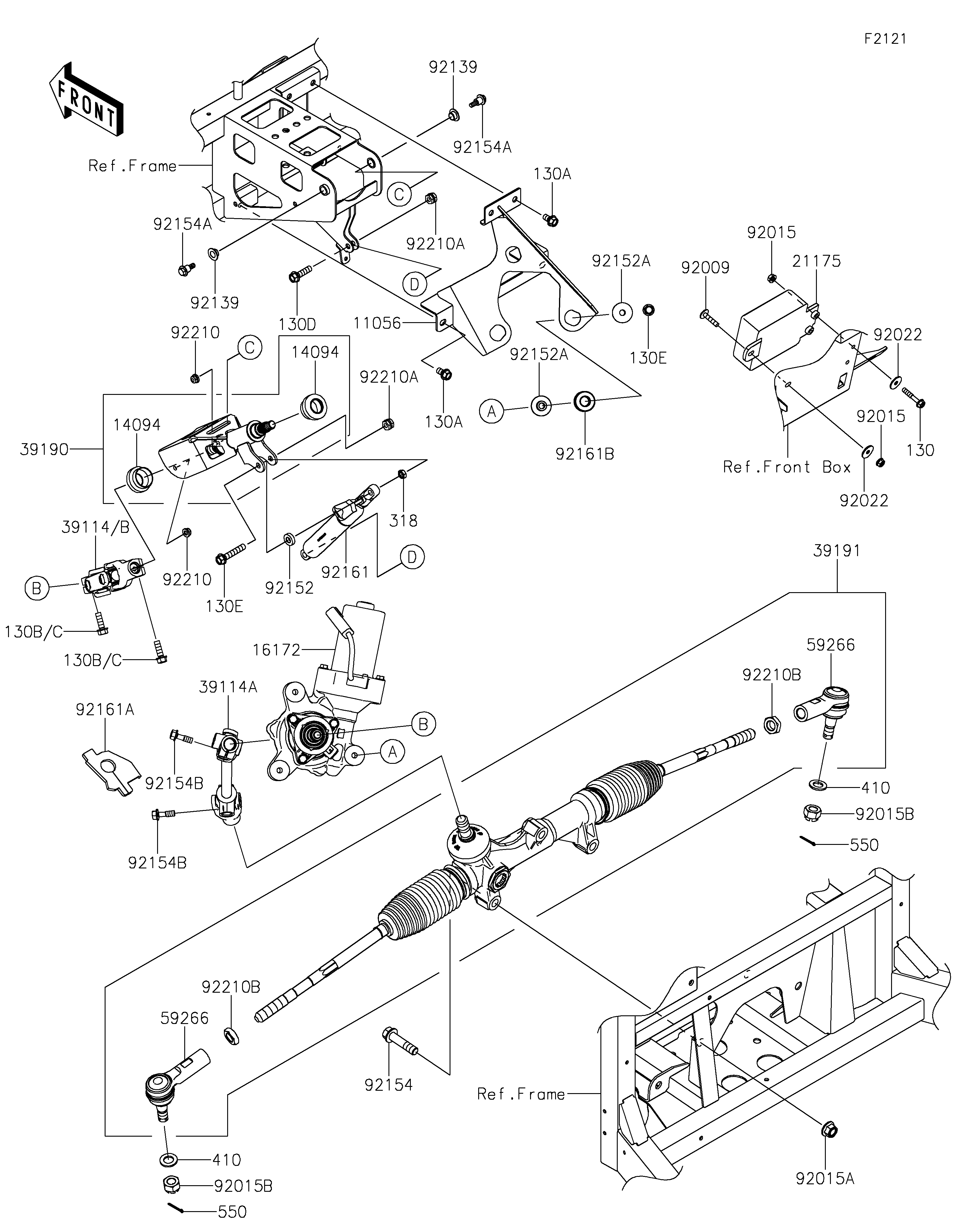

2024 MULE PRO-FX™ 1000 HD Edition - Steering Shaft

DOWNLOAD PDF
SELECT A NEW PART
11056
14094
14094
16172
21175
39114
39114A
39190
39191
59266
59266
92009
92015
92015
92015A
92015B
92015B
92022
92022
92139
92139
92152
92152A
92152A
92154
92154A
92154A
92154B
92154B
92161
92161A
92161B
92210
92210
92210A
92210A
92210B
92210B
130
130A
130A
130B
130B
130D
130E
130E
318
410
410
550
550
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-2838 1
COVER,STEERING SHAFT 14094 14094-0322 2
ACTUATOR,EPS 16172 16172-0557 1
CONTROL UNIT-ELECTRONIC,EPS 21175 21175-0969 1
SHAFT-COMP-STRG 39114 39114-0019 1
SHAFT-COMP-STRG 39114A 39114-0045 1
SHAFT-ASSY-STEERING 39190 39190-0022 1
GEAR-ASSY-STEERING 39191 39191-0039 1
JOINT-BALL 59266 59266-0771 2
SCREW,6X28,BLACK 92009 92009-1400 1
NUT,FLANGED,6MM 92015 92015-1367 3
NUT,LOCK,FLANGED,12MM 92015A 92015-1433 3
NUT,CASTLE,14MM 92015B 92015-1841 2
WASHER,6.5X22X1.6 92022 92022-237 3
BUSHING 92139 92139-0230 2
COLLAR,8.2X18X5 92152 92152-1848 1
COLLAR,8.5X30X10.6 92152A 92152-2149 6
BOLT,FLANGED,12X50 92154 92154-1008 3
BOLT,6X21.5 92154A 92154-1320 2
BOLT 92154B 92154-4224 2
DAMPER,GAS SPRING 92161 92161-1825 1
DAMPER 92161A 92161-2492 1
DAMPER,ACTUATOR 92161B 92161-7517 3
NUT,LOCK,FLANGED,6MM 92210 92210-0303 2
NUT,HARD LOCK,8MM 92210A 92210-0934 2
NUT 92210B 92210-1933 2
BOLT-FLANGED,6X35 130 130BA0635 2
BOLT-FLANGED,8X14 130A 130BA0814 4
BOLT-FLANGED,8X25 130B 130BA0825 2
BOLT-FLANGED,8X30 130D 130CA0830 1
BOLT-FLANGED,8X45 130E 130CA0845 4
NUT-HEX-SMALL,8MM 318 318BA0800 1
WASHER-PLAIN-SMALL,14MM 410 410AA1400 2
PIN-COTTER,3.0X25 550 550AA3025 2
