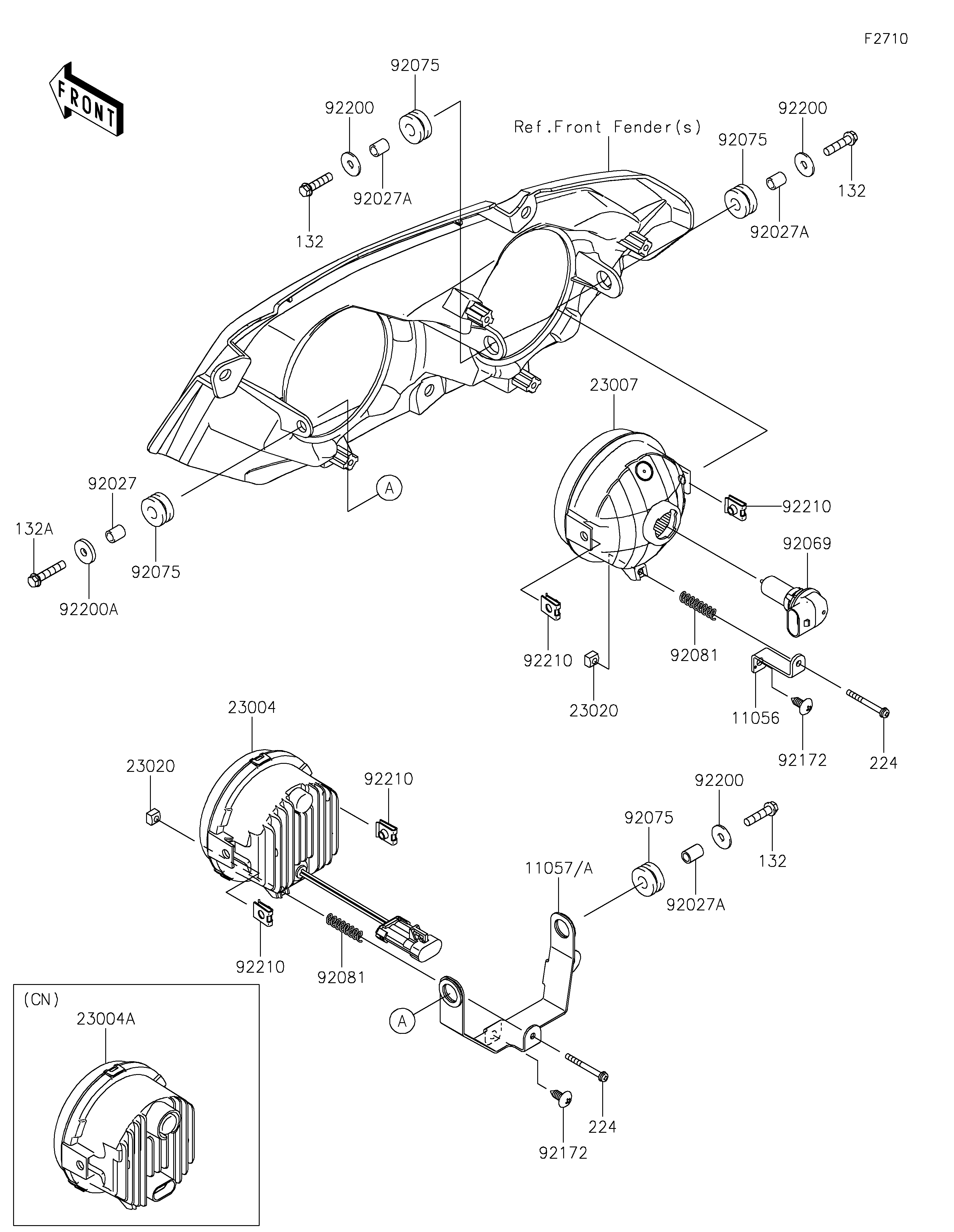

2024 MULE PRO-FX™ 1000 HD Edition - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
11056
11057
11057A
23004
23007
23020
23020
92027
92027A
92027A
92027A
92069
92075
92075
92075
92075
92081
92081
92172
92172
92200
92200
92200
92200A
92210
92210
92210
92210
132
132
132
132A
224
224
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-2933 2
BRACKET,LED HL,LH 11057 11057-0755 1
BRACKET,LED HL,RH 11057A 11057-0783 1
LAMP-HEAD,LED 23004 23004-0432 2 _________________________________________CA,US
LENS-COMP,HEAD LAMP 23007 23007-0220 2
NUT,4MM,FOCUS ADJUST 23020 23020-018 4
COLLAR,6.8X10X14.5 92027 92027-156 2
COLLAR,6.8X10X12 92027A 92027-162 6
BULB,12V 35/35W 92069 92069-0102 2
DAMPER,10X24X12 92075 92075-1690 8
SPRING,FOCUS ADJUST 92081 92081-1896 4
SCREW,6X16 92172 92172-0284 4
WASHER,6.5X20X1.6 92200 92200-0283 6
WASHER,6.5X20X3.2 92200A 92200-0359 2
NUT 92210 92210-1125 8
BOLT-FLANGED-SMALL,6X25 132 132BA0625 6
BOLT-FLANGED-SMALL,6X30 132A 132BA0630 2
SCREW-PAN-WP-CROS 224 224AA0440 4
