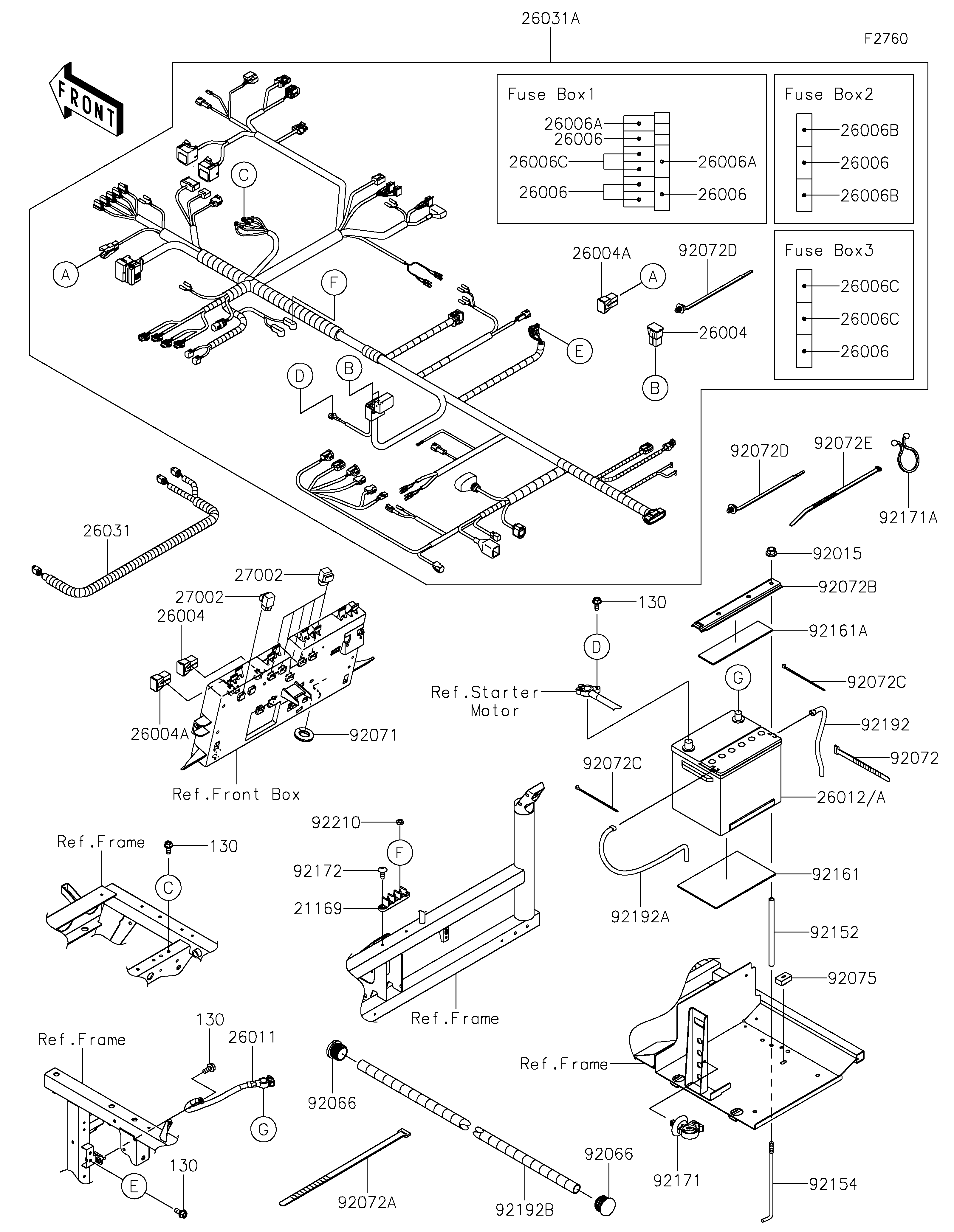

2024 MULE PRO-FX™ 1000 HD Edition - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
21169
26004
26004
26004A
26004A
26006
26006
26006
26006
26006
26006A
26006A
26006B
26006B
26006C
26006C
26006C
26011
26012A
26031
26031A
27002
27002
92015
92066
92066
92071
92072
92072A
92072B
92072C
92072C
92072D
92072D
92072E
92075
92152
92154
92161
92161A
92171
92171A
92172
92192
92192A
92192B
92210
130
130
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TERMINAL 21169 21169-0571 1
FUSE-ASSY,60A 26004 26004-0024 3
FUSE-ASSY,40A 26004A 26004-0035 2
FUSE,MINI BLADE,10A,RED 26006 26006-0009 6
FUSE,MINI BLADE,25A,NATURAL 26006A 26006-0020 2
FUSE,MINI BLADE,30A,GREEN 26006B 26006-1080 2
FUSE,MINI BLADE,20A,YELLOW 26006C 26006-3704 4
WIRE-LEAD,BATTERY(-) 26011 26011-0912 1
BATTERY,WET,(26R) 26012A 26012-1569 1 CN
HARNESS,SUB 26031 26031-2226 1
HARNESS,MAIN 26031A 26031-7067 1
RELAY-ASSY 27002 27002-1062 6
NUT,FLANGED,8MM 92015 92015-1406 1
PLUG 92066 92066-0908 2
GROMMET,22X45X9 92071 92071-0729 1
BAND,L=123 92072 92072-030 1
BAND,L=218 92072A 92072-032 2
BAND 92072B 92072-0767 1
BAND,92X2.4 92072C 92072-0791 2
BAND,OS170-FT7(BLACK) 92072D 92072-1414 AR
BAND,L=292.1 92072E 92072-3509 9 CA
DAMPER 92075 92075-099 1
COLLAR,9.4X12.7X190.8 92152 92152-1852 1
BOLT,BATTERY 92154 92154-1650 1
DAMPER 92161 92161-0578 1
DAMPER 92161A 92161-1753 1
CLAMP 92171 92171-0453 1
CLAMP 92171A 92171-1185 1
SCREW,TAPPING,6X16 92172 92172-0739 2
TUBE,BREATHER,7X10X240 92192 92192-1646 1
TUBE,BREATHER,7X10X450 92192A 92192-1694 1
TUBE,CONVOLUTED 92192B 92192-1814 1
NUT 92210 92210-1680 2
BOLT-FLANGED,6X14 130 130BA0614 5
BAND,L=292.1 92072E 92072-3509 10 CN,US 1
