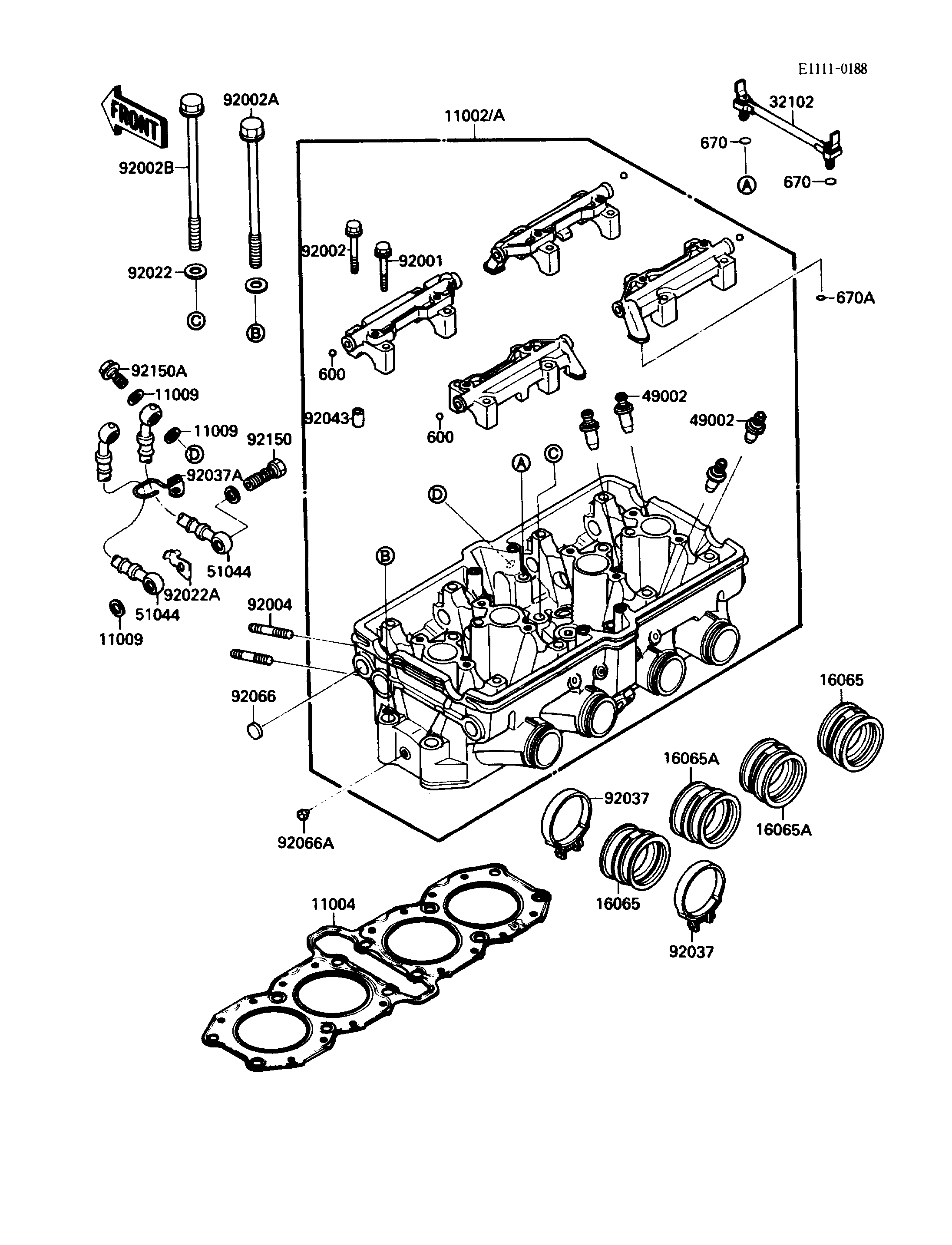

1988 NINJA® 750R - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
600
600
670
670
670A
11004
11009
11009
11009
16065
16065
16065A
16065A
32102
49002
49002
51044
51044
92001
92002
92002A
92002B
92004
92022
92022A
92037
92037
92037A
92043
92066
92066A
92150
92150A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BALL-STEEL,1/4" 600 600A0800 8
O RING 670 670D1505 4
O RING,8MM 670A 670D1508 4
GASKET-HEAD 11004 11004-1154 1
GASKET,10X14.5X1.5 11009 11009-1105 6
HOLDER-CARBURETOR,#1&#4 16065 16065-1147 2
HOLDER-CARBURETOR,#2&#3 16065A 16065-1148 2
PIPE,CYLINDER HEAD 32102 32102-1242 2
GUIDE-VALVE 49002 49002-1060 16
TUBE-ASSY,OIL PAN-HEAD 51044 51044-1078 2
BOLT,FLANGED,6X38 92001 92001-1105 8
BOLT,6X46 92002 92001-1872 8
BOLT,10X148 92002A 92002-1798 8
BOLT,10X158 92002B 92002-1799 4
STUD,8X30,BLACK 92004 92004-1101 8
WASHER,10.5X20X1.6 92022 92022-1591 12
WASHER,OIL PUMP 92022A 92022-1875 1
CLAMP 92037 92037-1637 8
CLAMP 92037A 92037-1802 1
PIN,6.2X8X14 92043 92043-1263 8
PLUG,ROCKER SHAFT 92066 92066-1265 4
PLUG 92066A 92066-1266 2
BOLT,BANJO,10X37 92150 92150-1122 1
BOLT,BANJO,10X23 92150A 92150-1123 2
HEAD-ASSY-CYLINDER 11002 11002-1225 1
HEAD-ASSY-CYLINDER 11002A 11002-1226 1
