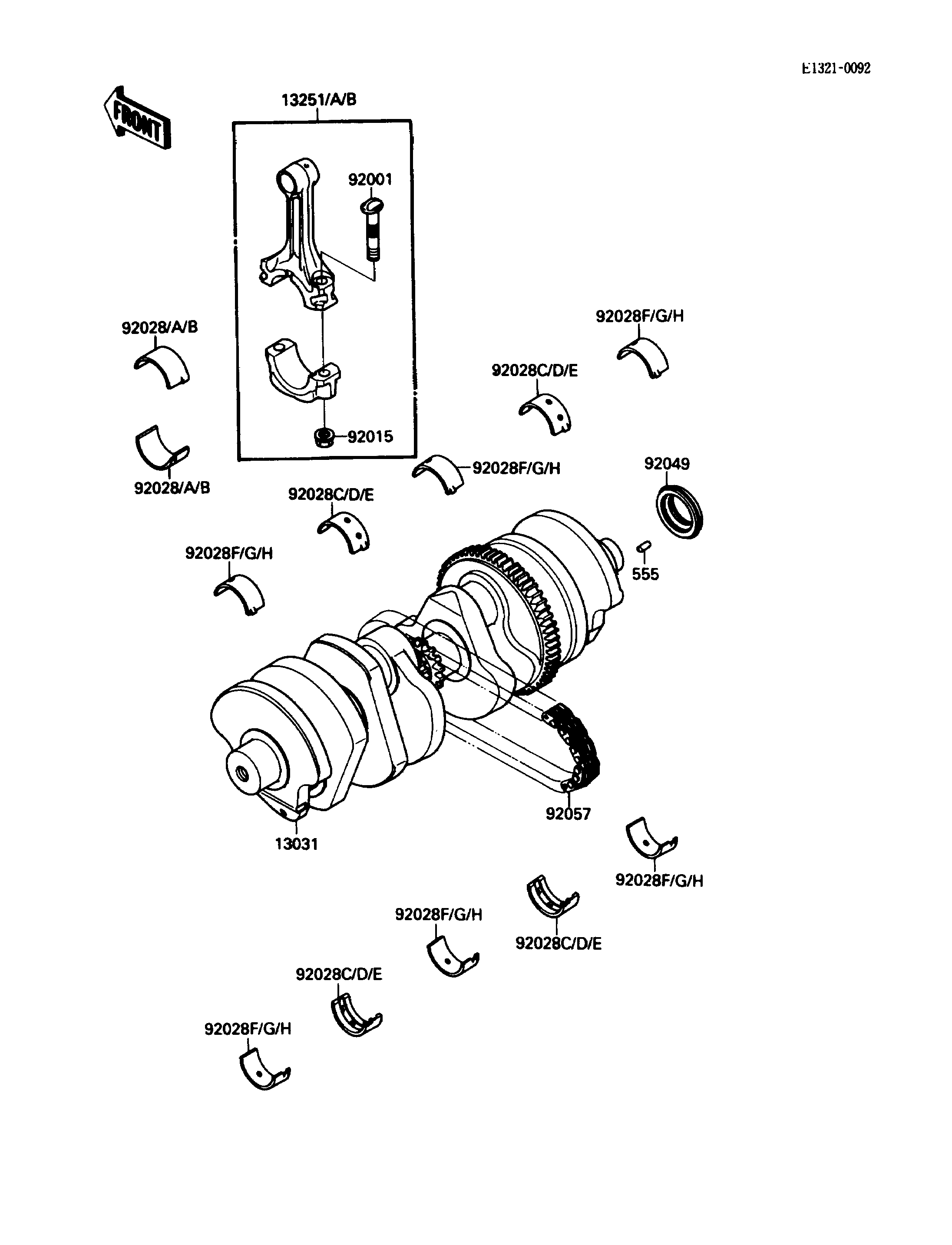

1988 NINJA® 750R - Crankshaft

DOWNLOAD PDF
SELECT A NEW PART
555
13031
13251
13251A
13251B
92001
92015
92028
92028
92028
92028A
92028A
92028B
92028B
92028C
92028C
92028C
92028C
92028D
92028D
92028D
92028D
92028E
92028E
92028E
92028E
92028F
92028F
92028F
92028F
92028F
92028F
92028G
92028G
92028G
92028G
92028G
92028G
92028H
92028H
92028H
92028H
92028H
92028H
92049
92057
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-SPRING,4X8 555 555A0408 1
CRANKSHAFT-COMP 13031 13031-1227 1
ROD-ASSY-CONNECTING,H 13251 13251-1079-HH 4
ROD-ASSY-CONNECTING,I 13251A 13251-1079-II 4
ROD-ASSY-CONNECTING,J 13251B 13251-1079-JJ 4
BOLT,CONNECTING ROD,8MM 92001 92001-1887 8
NUT,FLANGED,8MM 92015 92015-1311 8
BUSHING,CONNECTING ROD BLUE 92028 92028-1407 AR
BUSHING,CONNECTING ROD BLACK 92028A 92028-1408 AR
BUSHING,CONNECTING ROD BROWN 92028B 92028-1409 AR
BUSHING,CRANKSHAFT,#2&#4,BLUE 92028C 92028-1442 AR
BUSHING,CRANKSHAFT,#2&#4,BLACK 92028D 92028-1443 AR
BUSHING,CRANKSHAFT,#2&#4,BROWN 92028E 92028-1444 AR
BUSHING,CRANKSHAFT,1&3&5,BLUE 92028F 92028-1445 AR
BUSHING,CRANKSHAFT,1&3&5,BLACK 92028G 92028-1446 AR
BUSHING,CRANKSHAFT,1&3&5,BROWN 92028H 92028-1447 AR
SEAL-OIL,HSCY25397 92049 92050-081 1
CHAIN,GENERATOR 92057 92057-1161 1
