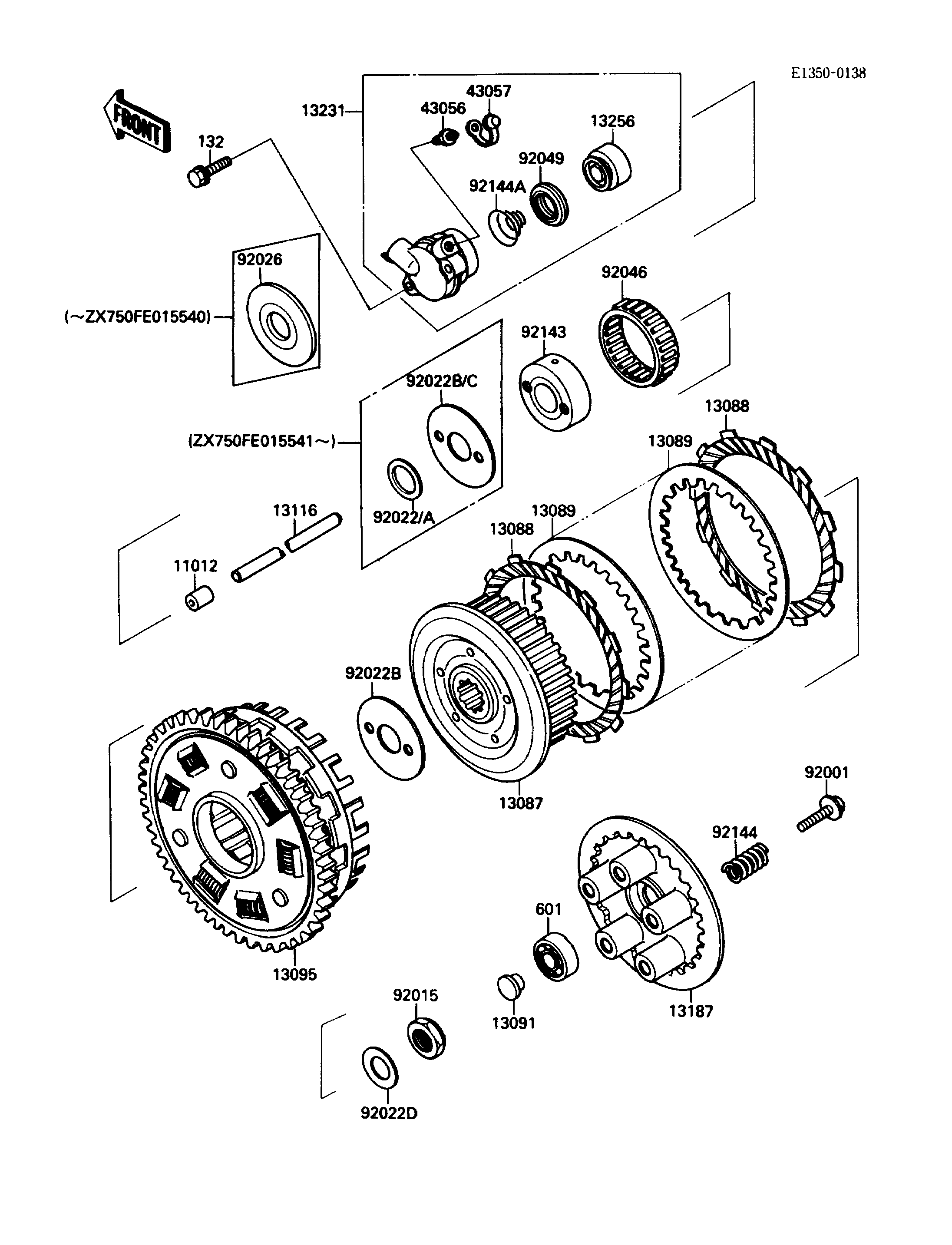

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
132
601
11012
13087
13088
13088
13089
13089
13091
13095
13116
13187
13231
13256
43056
43057
92001
92015
92022D
92046
92049
92143
92144
92144A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132W0625 | 2 | ||
BEARING-BALL,#6001C3 | 601 | 601B6001 | 1 | ||
CAP,PUSHROD | 11012 | 11012-1569 | 1 | ||
HUB-CLUTCH | 13087 | 13087-042 | 1 | ||
PLATE-FRICTION | 13088 | 13088-1051 | 8 | ||
PLATE-CLUTCH | 13089 | 13089-1066 | 7 | ||
HOLDER,CLUTCH PUSH ROD | 13091 | 13091-1085 | 1 | ||
HOUSING-COMP-CLUTCH | 13095 | 13095-1149 | 1 | ||
ROD-PUSH,CLUTCH | 13116 | 13116-1126 | 1 | ||
PLATE-CLUTCH OPERATING | 13187 | 13187-1006 | 1 | ||
RELEASE-ASSY-CLUTCH | 13231 | 13231-1062 | 1 | ||
PISTON | 13256 | 13256-1052 | 1 | ||
BREATHER-BRAKE | 43056 | 43056-1052 | 1 | ||
CAP-BREATHER | 43057 | 43057-1001 | 1 | ||
BOLT,FLANGED,6X18 | 92001 | 92001-1066 | 5 | ||
NUT,20MM | 92015 | 92015-1555 | 1 | ||
WASHER | 92022D | 92022-1868 | 1 | ||
BEARING-NEEDLE,K55X63X20 | 92046 | 92046-1159 | 1 | ||
SEAL-OIL,PISTON | 92049 | 92049-1165 | 1 | ||
COLLAR,INPUTSHAFT | 92143 | 92143-1017 | 1 | ||
SPRING,CLUTCH | 92144 | 92144-1036 | 5 | ||
SPRING,CLUTCH RELEASE | 92144A | 92144-1084 | 1 | ||
WASHER | 92022 | 92022-1719 | 1 | ||
WASHER | 92022A | 92022-1719 | 1 | ( ZX750FE015541 - ) | |
WASHER,CLUTCH THRUST | 92022B | 92022-1846 | 1 | ||
WASHER,CLUTCH THRUST | 92022B | 92022-1846 | 2 | ||
WASHER,CLUTCH THRUST | 92022C | 92022-1846 | 1 | ( ZX750FE015541 - ) | |
SPACER | 92026 | 92026-1281 | 1 | ( - ZX750FE015540) |
